Stabila 03265GP LAX50GP Green Beam Cross Line Laser W/ Telescopic Mount Tools & Equipment

Features

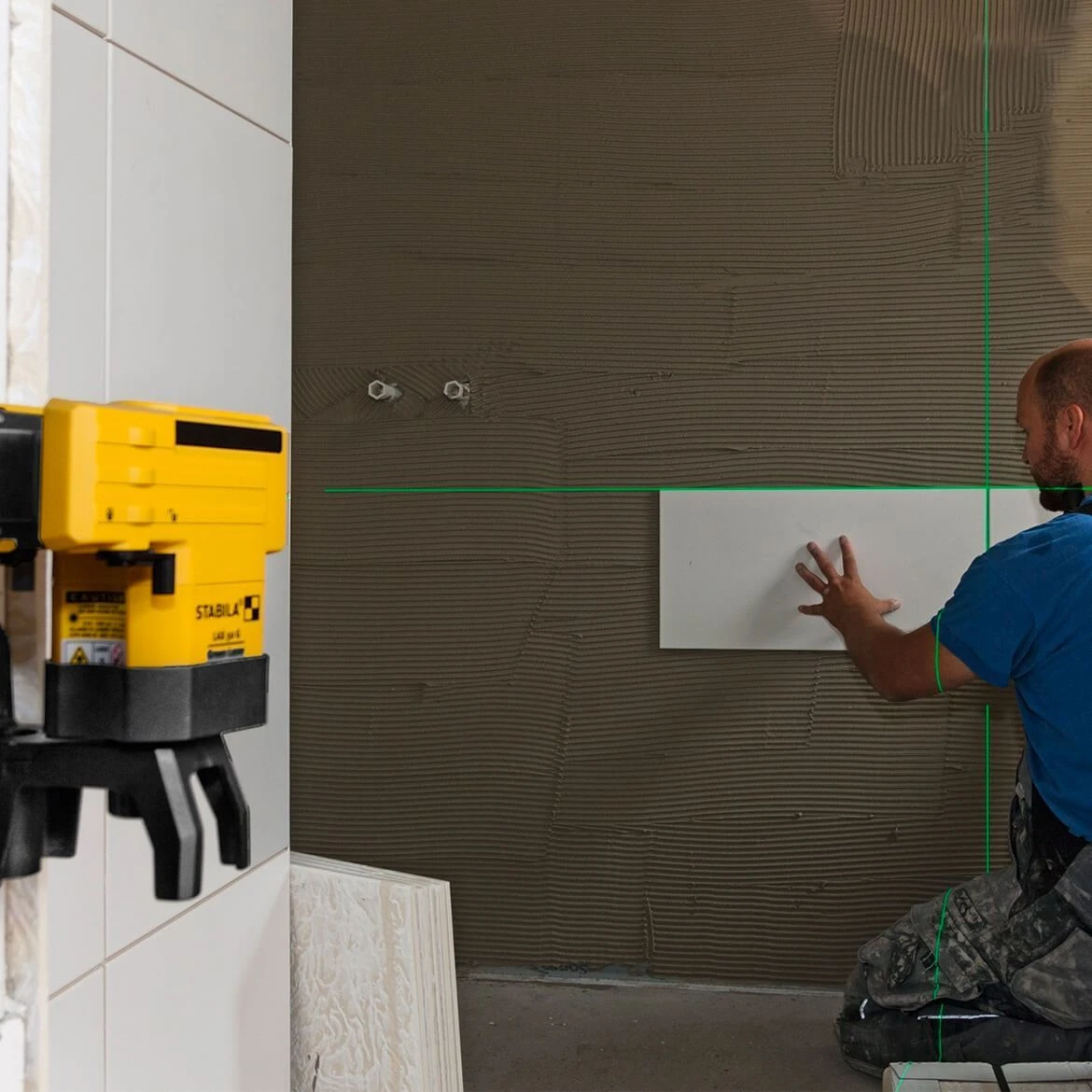

• Self-levelling cross line laser with exceptionally bright, fine, green laser lines 1/2 In. with perfect visibility at distances of up to 30 m thanks to Stabila Greenbeam technology.
• Extremely versatile for working quickly and directly on long laser lines 1/2 In. 1 horizontal line, 1 vertical line.
• The latest generation of energy-saving laser diodes with an operating time of up to 7 hours.
• Quick self-levelling function thanks to pendulum technology designed for the construction site.
• Rotating multi-purpose platform for flexible positioning of the laser on the floor and on tripods (1/4 In. and 5/8 In. threads). Strong rare-earth magnet system for securely attaching the platform to metal objects such as U-profiles. Hanging hole for wall attachments.
• Integrated clamping device on the laser for pipe attachments (maximum diameter: 30 mm).
• Protection class IP 53: protection against dust deposits inside and against spray (up to 60-1/2 on the vertical plane).
• Belt pouch for easy transport and safe storage.

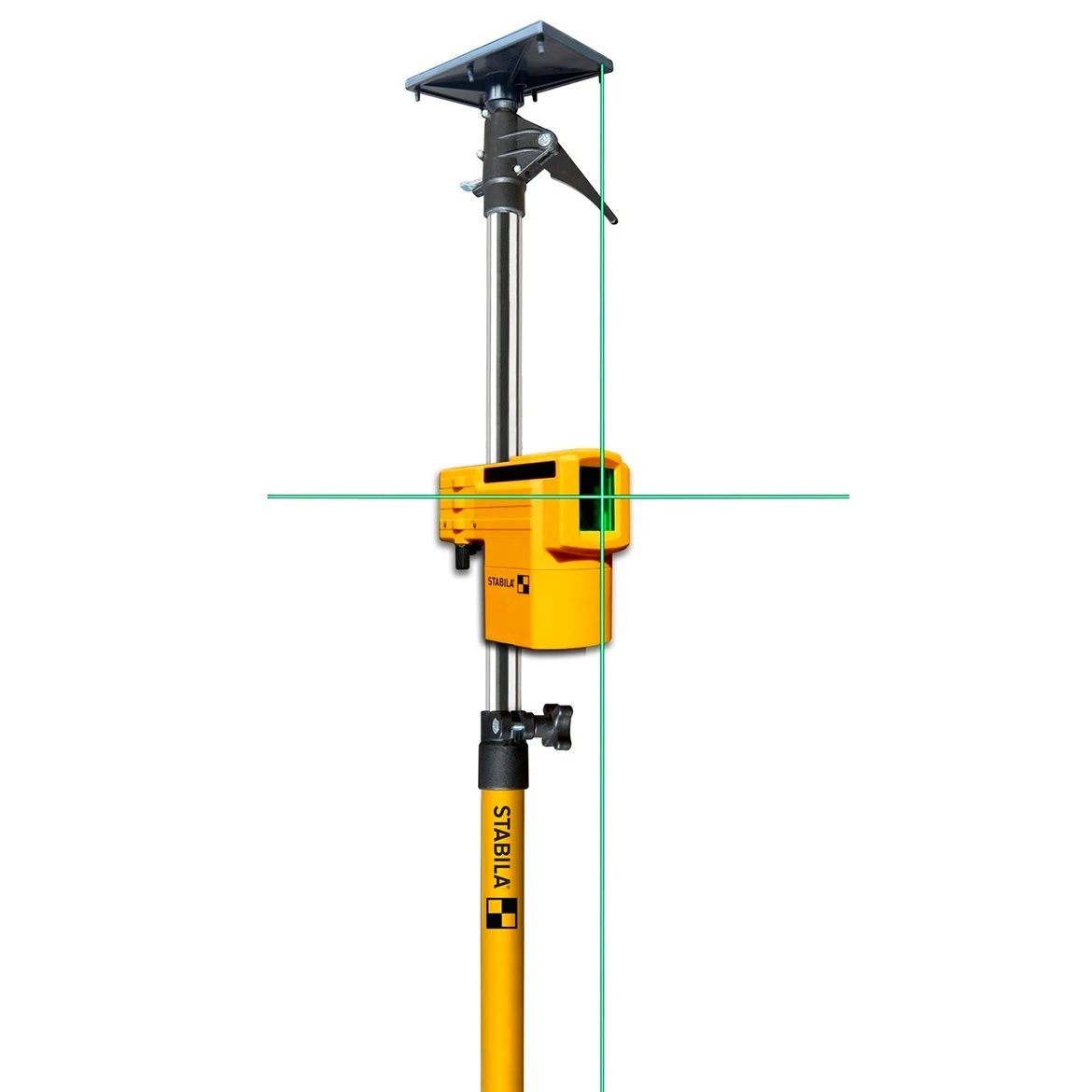

• 1) green beam laser; 2) an extendable positioning pole, 3) a magnetic base, for positioning independent of the laser pole.
• The laser is self-leveling, with fine, bright lines and easy, one button operation.

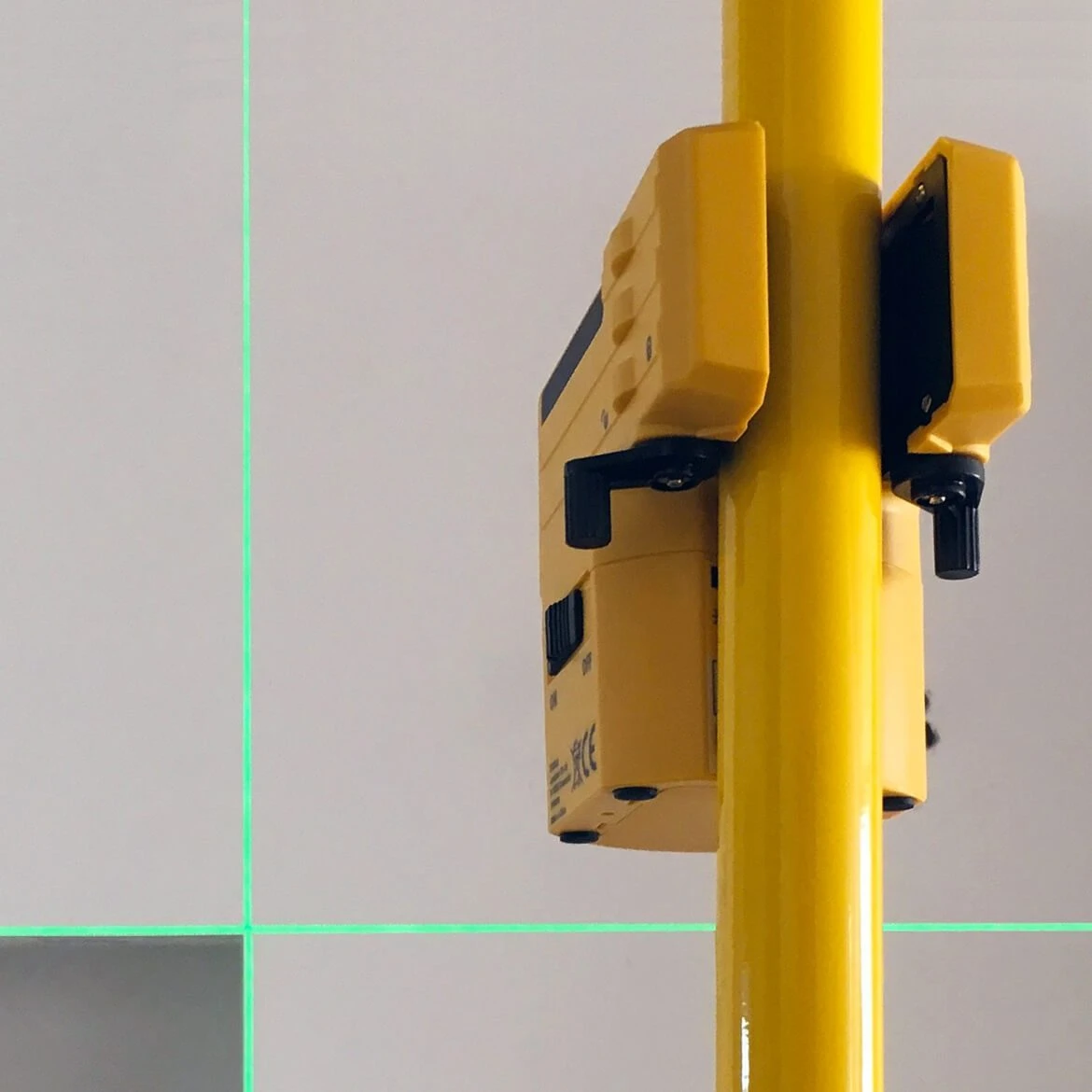

• On the laser body are 2 pressurized tabs that automatically 1/2 In. grab 1/2 In. the pole when the unit is pushed against it. Those tabs can also be adjusted manually for smaller diameter round materials.
• The included pole adjusts from 59 1/2 In.to 10-1/2 In. but the ability to mount on makeshift stands of conduit or plastic pipe offers access at higher heights.

What’s in The Box

• Stabila LAX50GP Green Beam Cross Line Laser w/ Telescopic Mount – 03265GP
• Owner’s Manual

Warranty

• 3-Year Linited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	03265GP
Brand	Stabila
Laser Class	2
Output	1 mW
Laser Wavelength	510-530 nm
Self-leveling Range plus/minus	4.5 degrees
Leveling Accuracy plus/minus	.50 mm/m
Measuring range of visible line	30 m
Operating life	7 h
Battery type	AA
Protection class	IP 53
Tripod connection	1/4 + 5/8
Shipping Weight (lbs)	9 lbs
