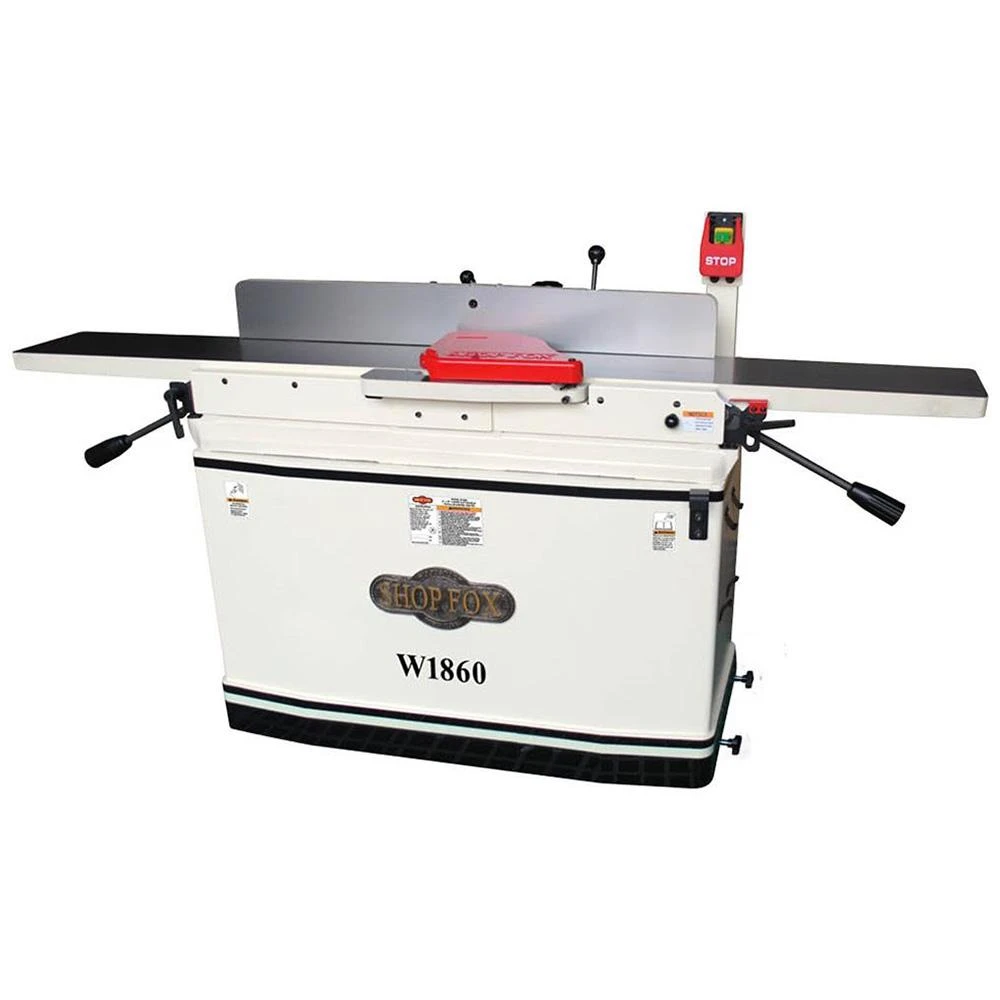

Tools & Equipment Shop Fox W1860 230 Volt 8 Inch X 76 Inch Parallelogram Spiral Cutterhead Jointer

Shop Fox W1860 230V 8″ x 76″ Parallelogram Spiral Cutterhead Jointer | Power Tools & Equipment

Original price was: $596.00.Current price is: $88.99.

The Shop Fox W1860 Jointer features a 230V motor and an 8″ x 76″ parallelogram spiral cutterhead, ensuring precise and smooth jointing for woodworking projects.
Equipped with a spiral cutterhead, this jointer reduces noise and vibration while delivering superior cutting performance and extended blade life.
The parallelogram design ensures consistent accuracy and stability, making it ideal for both professional and DIY woodworking enthusiasts.
This jointer is part of the trusted Shop Fox brand, known for high-quality tools and equipment that meet the demands of serious woodworkers.
Enjoy hassle-free shipping and secure payment options when you purchase the Shop Fox W1860 Jointer, backed by reliable customer support.

SKU: jointers-2683395375222 Categories: Jointers, Power Tools, Tools & Equipment Tags: Corded, Dropship, LTL, Power, Tools & Equipment

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

Lever-adjusted table height with depth gauge
Center-mounted fence with rack and pinion adjustment
Built-in mobile base
Precision-ground cast-iron tables
Extra long 40 infeed table
Powder-coated finish
4 dust port with built-in dust chute
Motor: 3 HP, 230V, single-phase
Total table size: 9 x 76
Fence size: 4-5/8 x 38
Maximum depth of cut: 1/8
Rabbeting capacity: 1/2
Cutterhead speed: 5500 RPM
Cutterhead diameter: 3-1/16
Cuts per minute: 22,000
Number of cutterhead inserts: 36
Insert size: 15.0 x 15.0 x 2.5mm
Power transfer: Poly V-belt
Switch: magnetic push-button switch with large off paddle for safety
Fence system: positive stops at +/- 45 degrees and 90 degrees
Approximate shipping weight: 470 lbs.
CSA certified

What’s in The Box

8-Inch x 76-Inch Parallelogram Jointer
Mobile Base
Owner’s Manual

Warranty

2-Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

Sku	W1860
Brand	Shop Fox
Voltage	230V
Jointer Size	8 in.
Cutterhead Type	Spiral
Cutterhead Diamter	3-1/16 in.
Num. of Cutter Spirals	4
Num. of Indexable Cutters	36
Cutterhead Speed	5,500 Rpm
Max. Width of Cut	8 in.
Max. Depth of Cut	1/8 in.
Min. Workpiece Length	10 in.
Min. Workpiece Thickness	1/2 in.
Max. Rabbeting Depth	1/2 in.
Number of Cuts Per Minute	22,000
Phase	Single
Frequency	60 Hz
Horsepower	3 Hp
No Load Speed	3,450 Rpm
Power Transfer	Belt Drive
Bevel Jointing	0 – 45 Degrees L/R
Bearings	Sealed and Permanently Lubricated
Full-Load Current Rating	12A
Minimum Circuit Size	20A
Body Assembly	Cast Iron
Dust Port Size	4 in.
Cutter Insert Type and Size	Indexable Carbide 15mm x 15mm x 2.5mm
Power Cord Length	6 ft.
Power Cord Gauge	14 AWG
Table Adjustment Type and Movement	Lever Action and Parallelogram
Table Size (L x W)	76 in. x 8 in.
Table Thickness	1-3/4 in.
Fence Stops	45, 90, 135-Degrees
Fence Size (L x W x H)	38 in. x 1-1/4 in. x 4-1/2 in.
Footprint (L x W)	40 in. x 16 in.
Length	76 in.
Width	25 in.
Height	41-1/2 in.
Product Weight	365 lbs.
