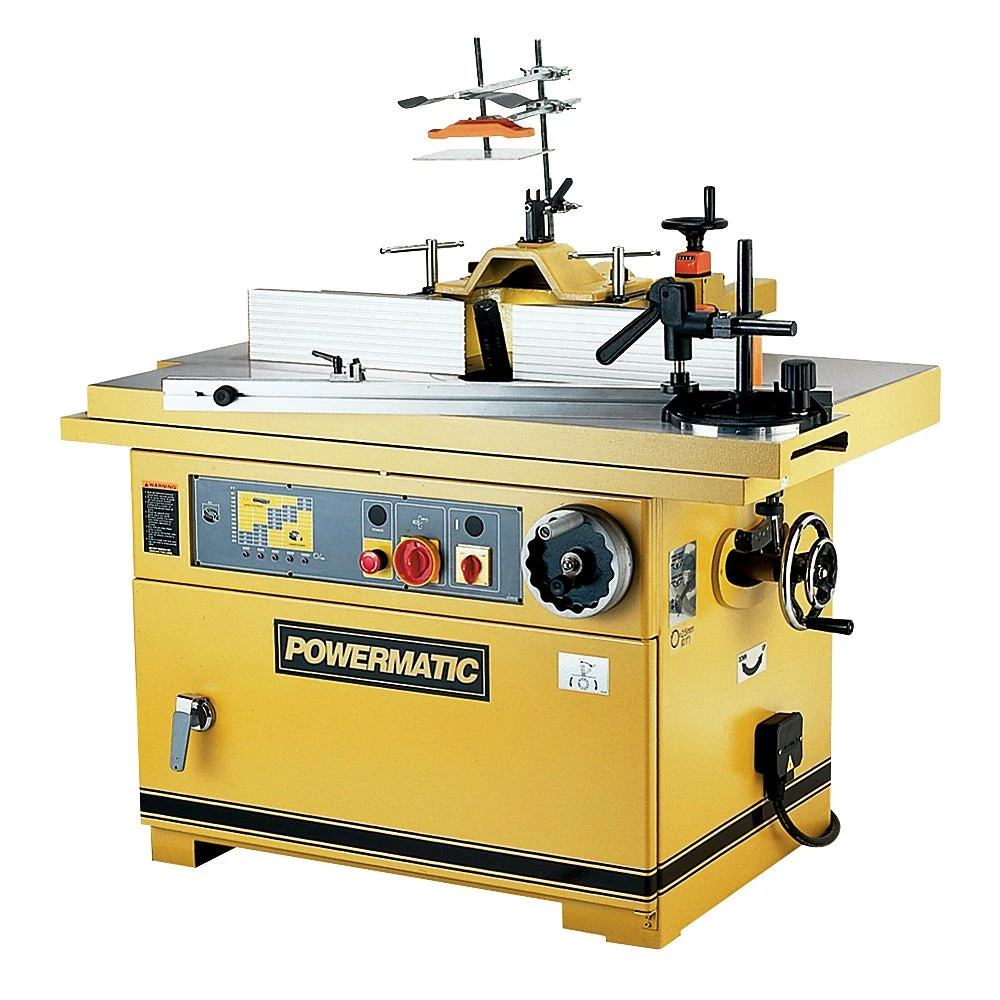

Powermatic TS29 7-1/2″ 230/460V Heavy Duty Tilt/Slide Shaper with Sliding Table – Premium Woodworking Tool

Features

• Sliding table with 4-foot stroke works with miter head, hold-down and fence to accommodate everything from multiple end cuts to tenons

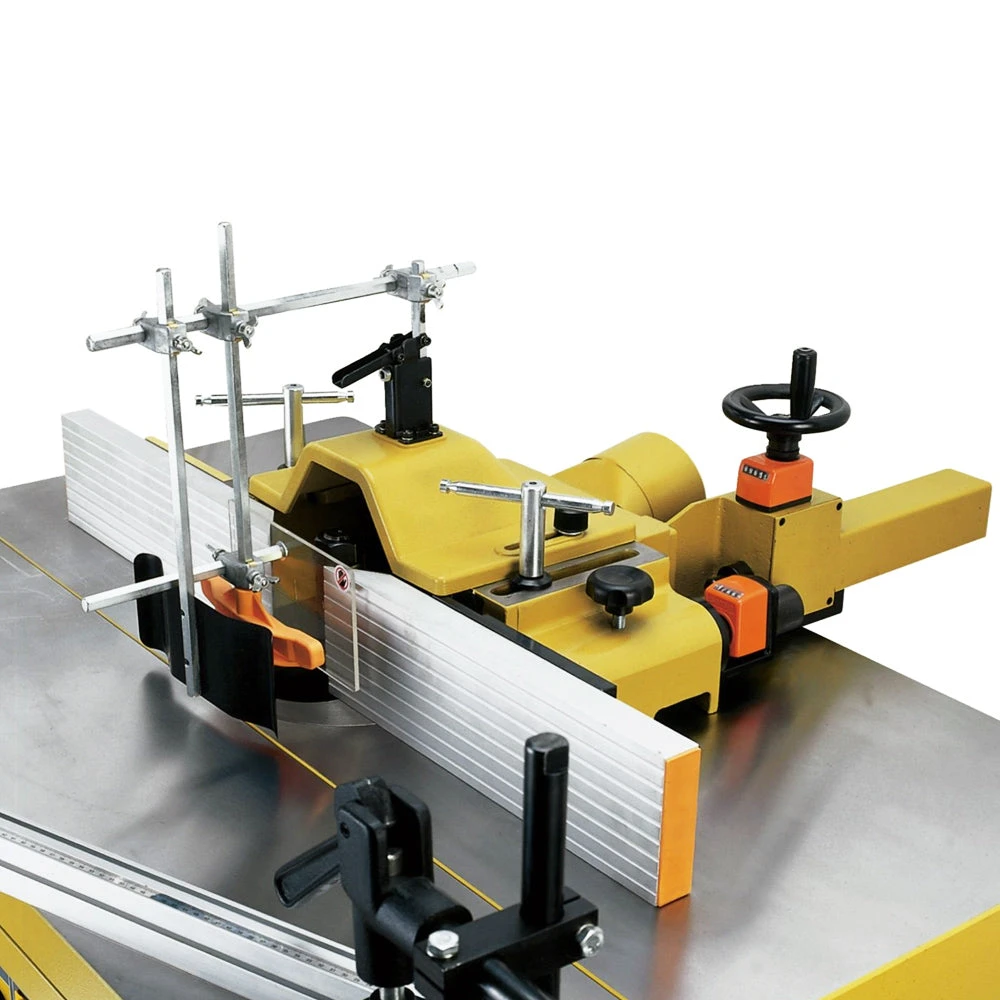

• Fully adjustable fence with dual digital readout for fast, accurate set-up and repeatability
• Large table with built-in slider with room for stock feeder
• 7″ vertical spindle travel allows stacked tooling
• Spindle tilts negative 5° to positive 45° for increased versatility
• Large diameter multiple table inserts accommodate virtually any size cutter

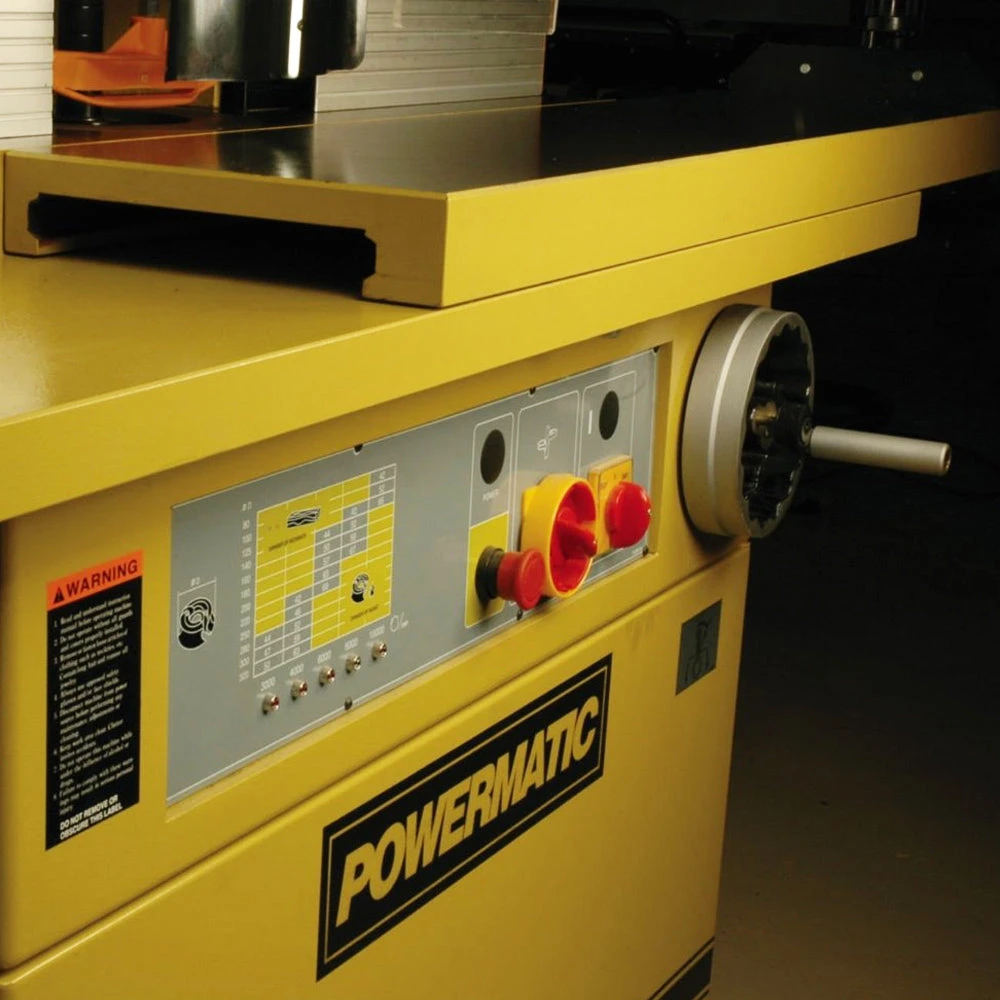

• Five spindle speeds in forward and reverse with lighted indicator

What’s in The Box

• Powermatic TS29 Shaper, 7.5HP 3PH 230/460V, Sliding Table
• Owner’s Manual

Warranty

• Powermatic warrants every product it sells against manufacturers’ defects. If one of our tools needs service or repair, please contact us for further warranty information.
• 90 Days – Parts; Consumable items
• 1 Year – Motors, Machine Accessories
• 2 Year – Woodworking Machinery used for industrial or commercial purposes
• 5 Year – Woodworking Machinery

Specifications

Model	1791284
UPC	662755464232
Style (Type)	Shaper
Spindle Speed (RPM)	3,000, 4,000, 6,000, 8,000, 10,000
Maximum Spindle Diameter (In.)	1-1/4
Spindle Size Under Nut (In.)	3/4 (3-1/2), 1 (6-1/4), 1-1/4 (6-1/4)
Spindle Travel (In.)	7
Spindle Tilt (Deg.)	45 Forward, 5 Back
Reversible	Yes
Router Bit Collet Included	1/4, 1/2
Maximum Diameter Cutter Above Table (In.)	12
Maximum Diameter Cutter Below Table (In.)	9
Table Inserts (In.)	3: One Tilting, Two Straight
Table Size (In.)	51-1/2 x 33-1/2
Table Travel (In.)	49-1/4
Sliding Table Size (In.)	11-1/4 x 51-1/4
Fence Size (L x H) (In.)	46 x 5
Fence Travel (Major and Minor) (In.)	5-3/8, 3-5/8
Dust Port Outside Diameter (In.)	5
Dust Collection Minimum CFM Required (CFM)	800
Electrical Controls	Yes
Motor Power (HP)	7-1/2
Motor Phase	3
Motor Voltage (V.)	230, 460
Prewired Voltage (V.)	230
