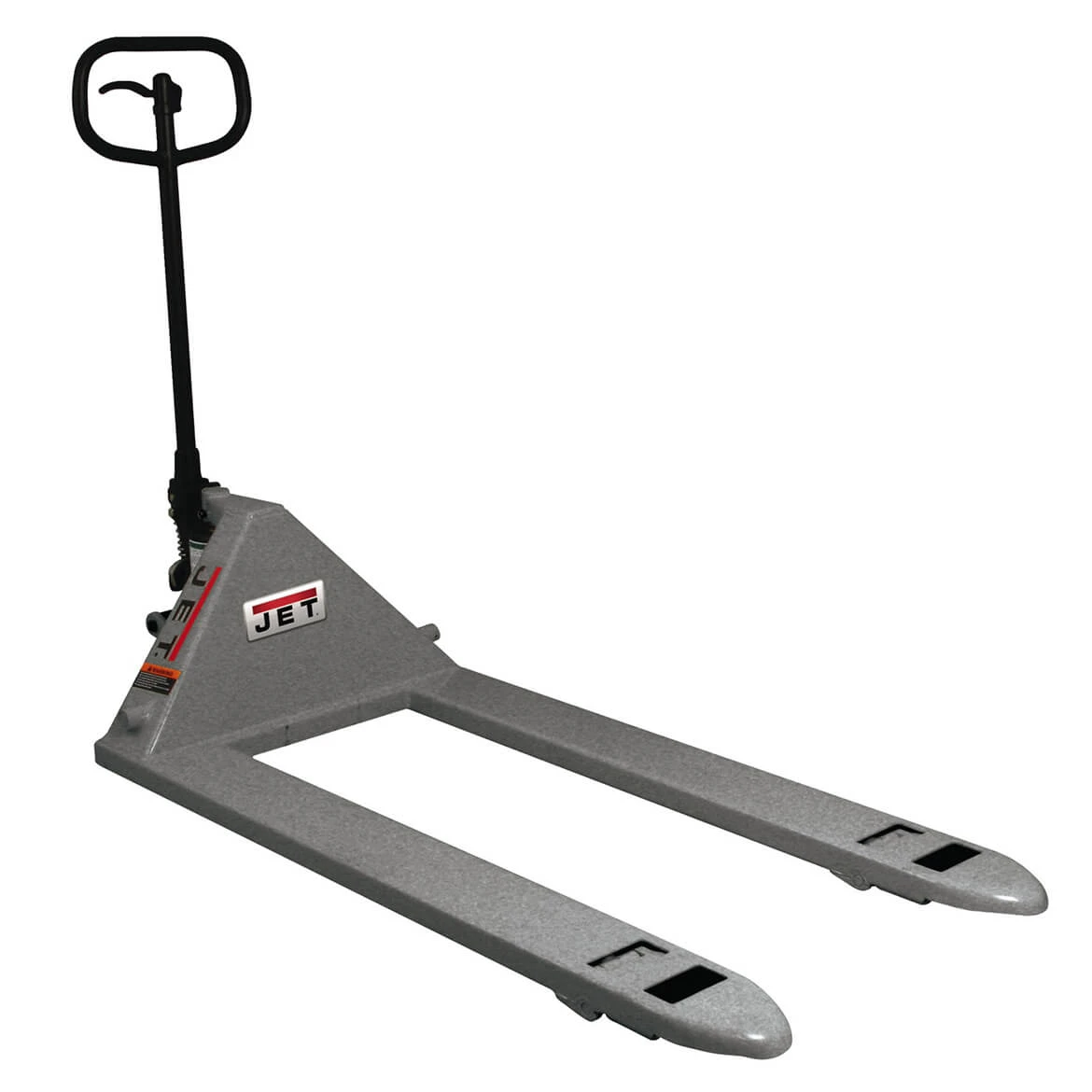

JET PT-2748J 27″ X 48″ Heavy-Duty Steel Pallet Truck with 5000 lbs Capacity | High-Quality Hand Tool for Material Handling

Features

• Capacity: 5,000 pounds
• Turning Radius: 180 degrees
• 2-1/2 inch low profile allows for easy engagement of pallets
• Easy-to-use fingertip controls permit single handed operation
• Welded all-steel frame and powder coat finish provide maximum durability and protection
• Chrome-plated pump piston and ram provide corrosion resistance in any industrial environment
• Poly over steel 6-1/4 x 2-3/4 inch steer wheels ensure contact with uneven floors
• Steer wheels feature double sealed lubricated bearings

What’s in The Box

• PT-2748J, 27″ x 48″ Pallet Truck With 5,000 LB Capacity
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Capacity (Lbs.)	5,000
Overall Fork Dimensions (L x W) (In.)	48 x 27
Lowered Height (In.)	2-1/2
Maximum Height (In.)	6-1/4
Fork Width (In.)	6
Steer Wheel Size (In.)	6-1/4 x 2-3/4
Load Wheel Size (OD x W) (In.)	2-1/2 x 3-3/4
Overall Dimensions (L x W x H) (In.)	63 x 27 x 45-1/8
W1 (In.)	27
W2 (In.)	6
L1 (In.)	48
L2 (In.)	63
H1 (In.)	6-1/4
H2 (In.)	2-1/2
A (In.)	6
B (In.)	2
C (In.)	45-1/8
