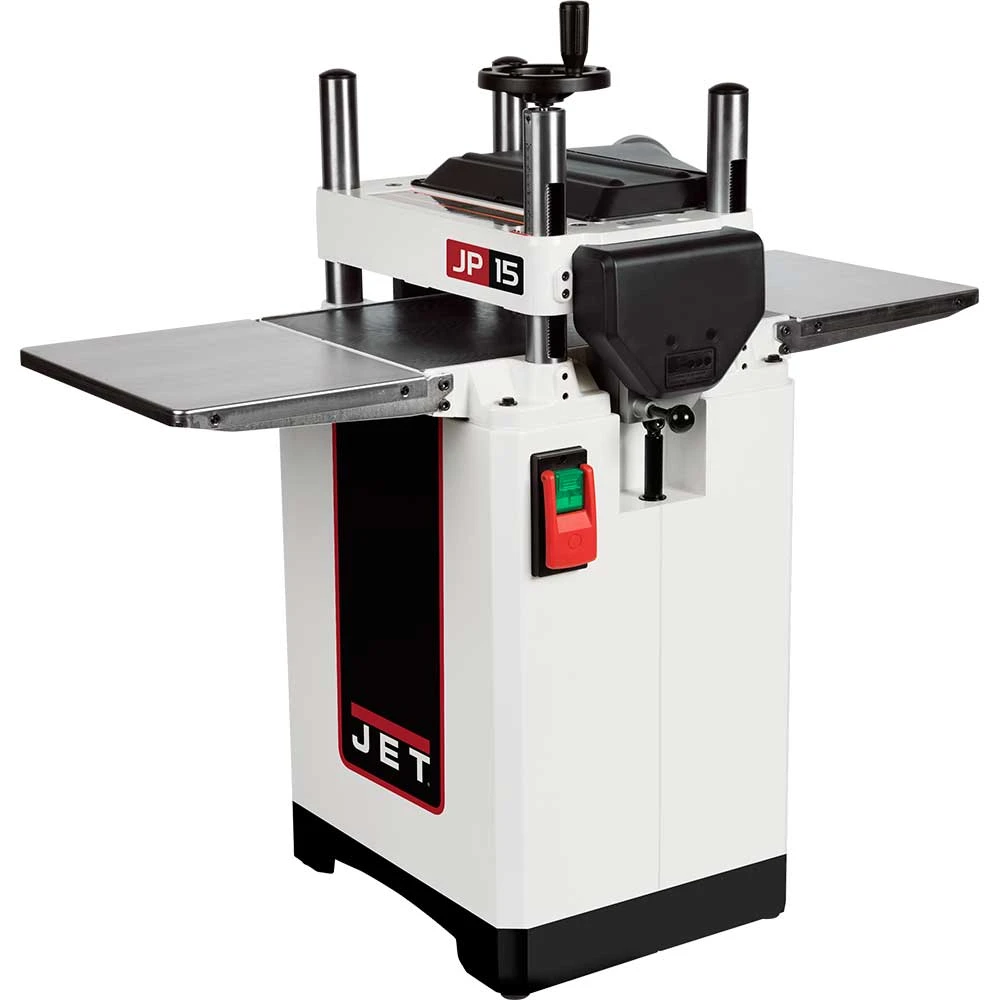

JET JWP-15B 240 Volt 15 Inch 3 Hp Floorstanding Straight Knife Planer – 722150 | Heavy-Duty Planer for Precision Woodworking

Features

• Innovative JET – Precision Air Strut System (PASS) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe
• Straight Cutterhead has three high-speed steel knives that lock firmly in place to prevent movement while in use
• Heavy-duty precision ground cast iron table and four post design provides maximum control and support when passing boards through planer.
• Powerful 3-HP motor with v-belt transmission reduces vibration and running noise
• Dual infeed speed control for 16fpm or 20fpm, maximizes cut efficiency
• Maximum depth of cut 1/8, 6 cutting height and 15 width capacity
• Heavy-duty folding infeed/outfeed tables provide support for work pieces and fold for convenience

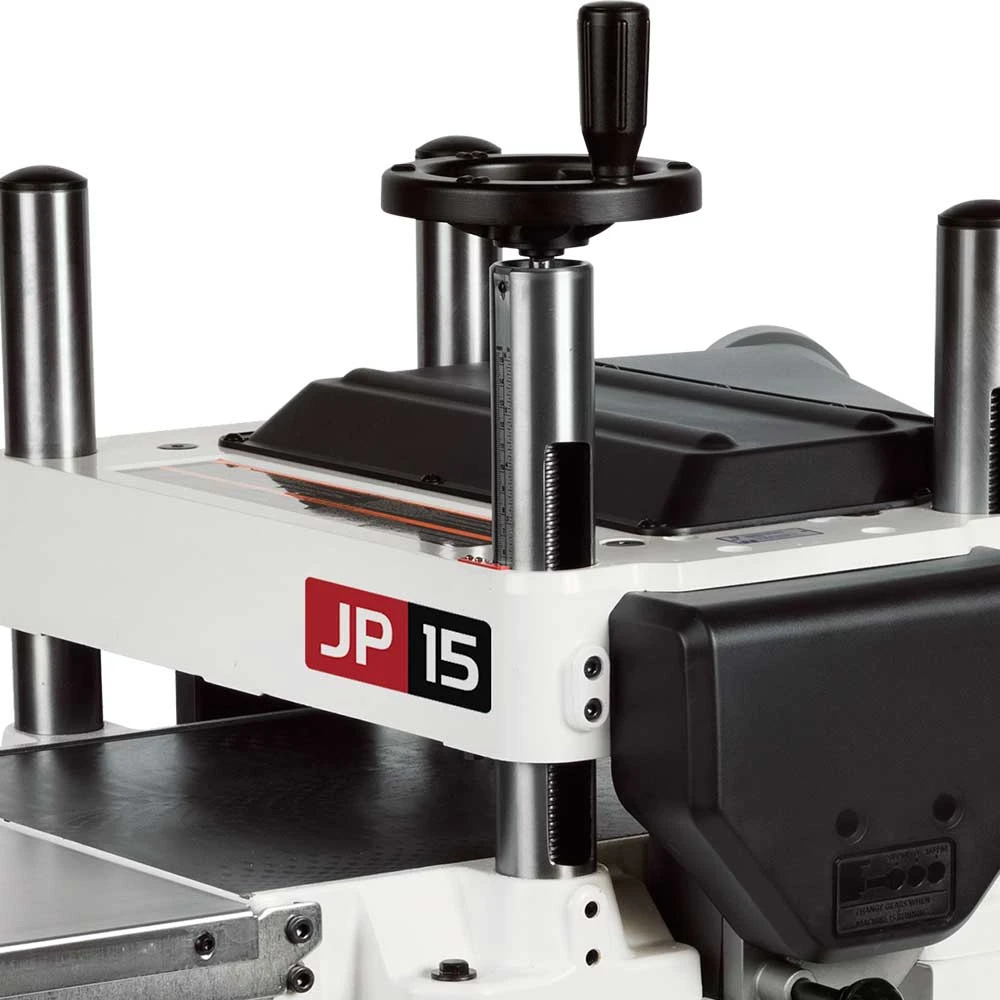

• Large hand wheel with positive gear drive easily moves the head to the desired board thickness

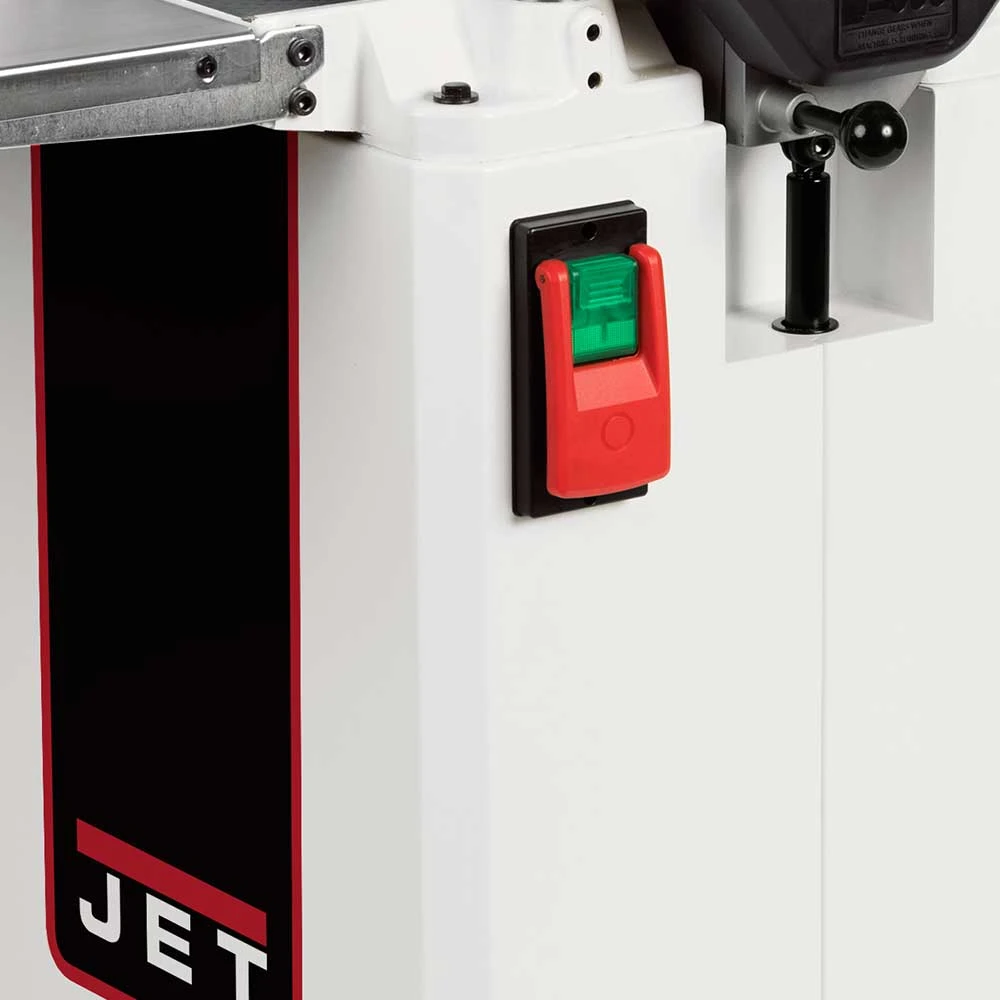

• Magnetic Switch with green safety light illuminates when powered
• 4 Dust Port hooks up to dust management system and helps keep shop clean

What’s in The Box

• 240-Volt 15-Inch Straight Knife Planer
• Owner’s Manual

Warranty

• 5-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	722150
Model	JWP-15B
Brand	Jet
Voltage	240V
Amperage	15A
Horsepower	3 Hp
Phase	1
Cutterhead Diameter	2-5/8 in.
Cutterhead Speed	5,200 Rpm
Number of Knives	3
Max. Depth of Cut	3/16 in.
Max. Full Width Depth of Cut	1/8 in.
Max. Planing Width	15 in.
Max. Planing Thickness	6 in.
Min. Planing Length	5.6 in.
Feed Rate	16 and 20 Fpm
Number of Speeds	2
Type of Cutterhead	Straight Knife
Style (Type)	Floorstanding Model
Dust Port Outside Diameter	4 in.
Table Size (L x W)	15 in. x 21.45 in.
Shipping Weight	319 lbs.
