Tools & Equipment JET JTM-4VS 3-Hp 230/460V Heavy Duty Variable Speed Vertical Milling Machine

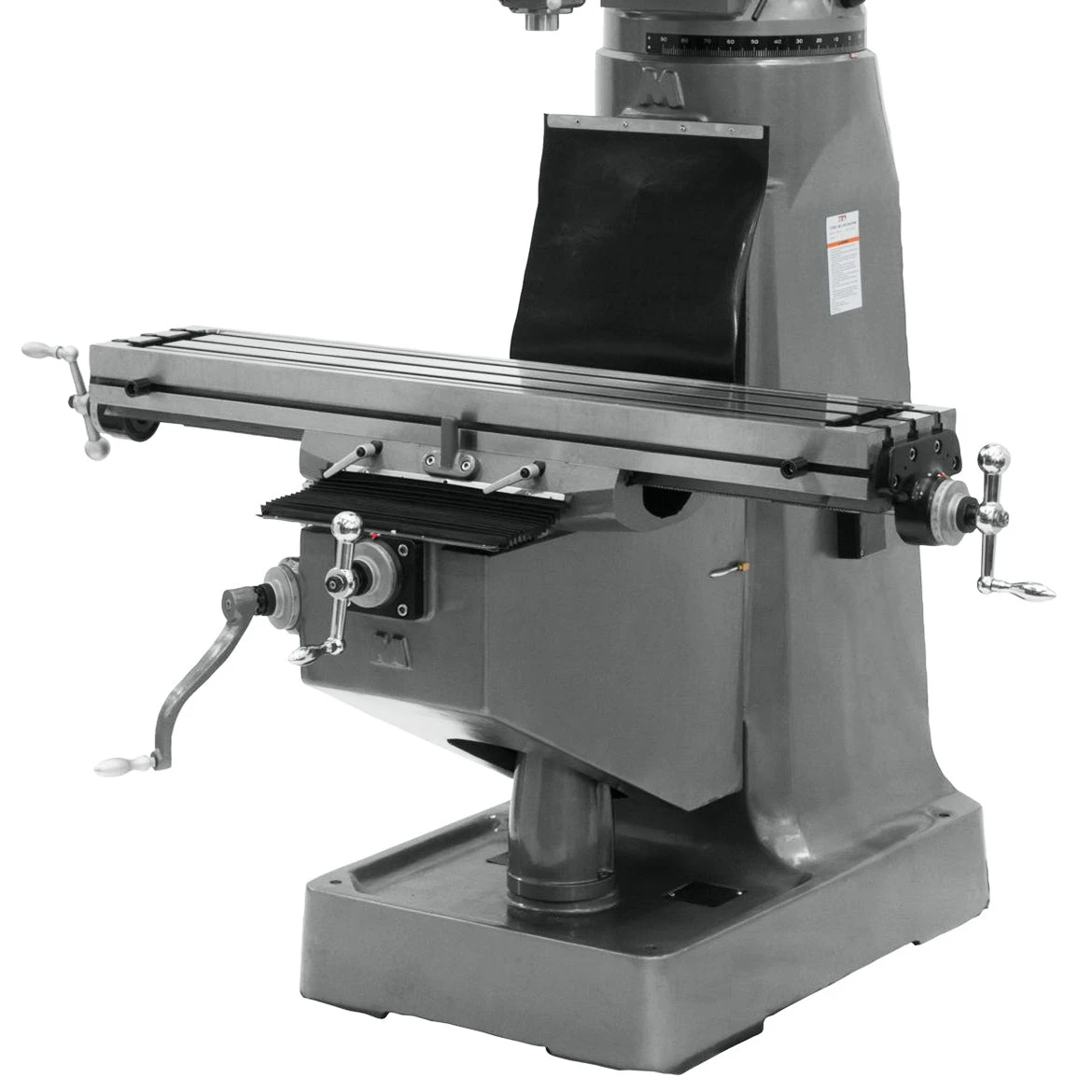

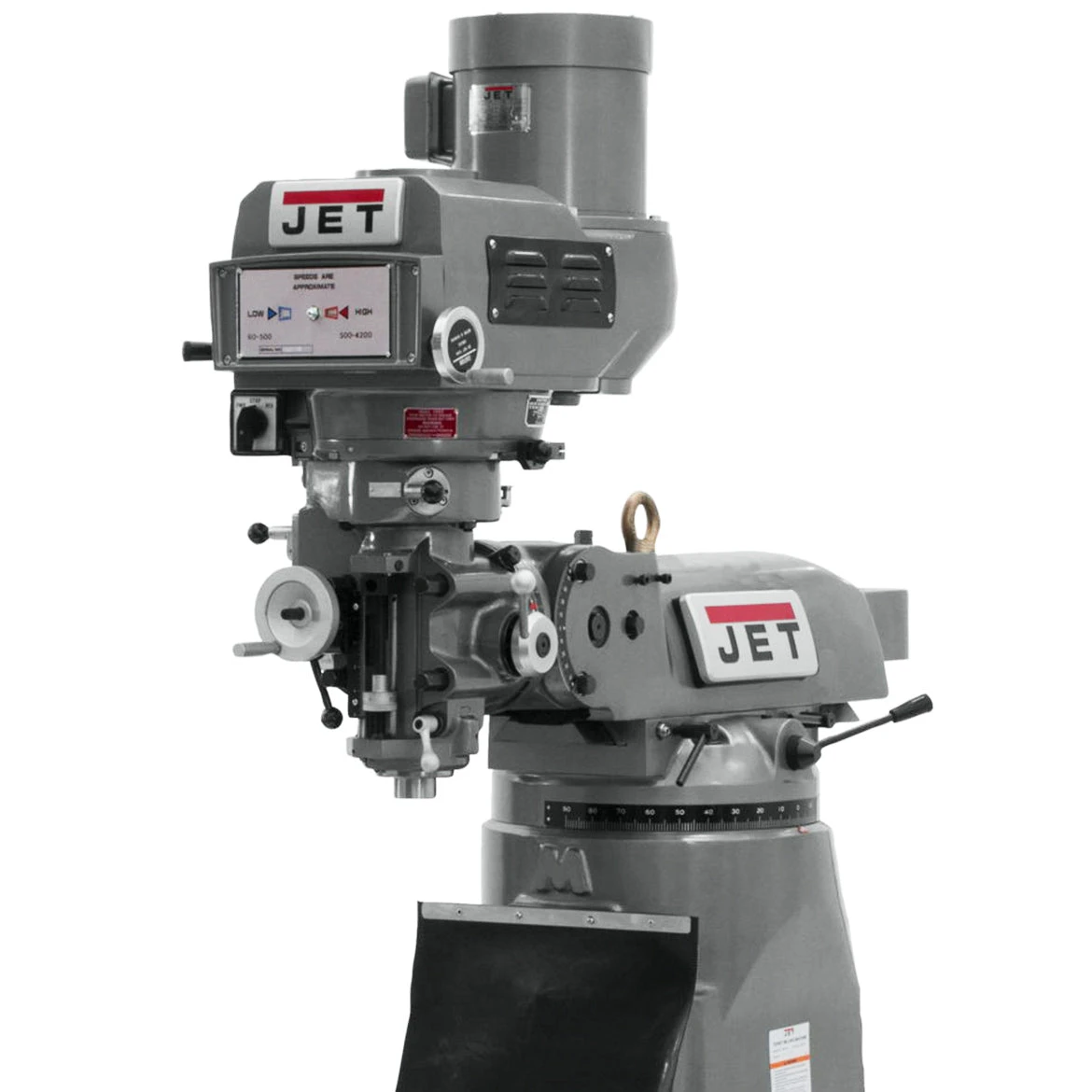

JET JTM-4VS 3-Hp Heavy Duty Variable Speed Vertical Milling Machine | Precision Metalworking Tool

Original price was: $596.00.Current price is: $91.99.

The JET JTM-4VS is a heavy-duty vertical milling machine built for precision metalworking. With a powerful 3-Hp motor and variable speed control, it delivers exceptional performance for professional workshops.
This milling machine features a robust cast iron construction, ensuring durability and stability during heavy-duty operations. Its variable speed range allows for versatility across a wide array of materials and applications.
Equipped with a 230/460V motor, the JET JTM-4VS is designed for industrial use, providing consistent power and reliability. Its vertical design maximizes workspace efficiency and ease of operation.
The JET JTM-4VS includes advanced safety features and a user-friendly interface, making it suitable for both experienced machinists and those new to metalworking. Its precision controls ensure accurate results every time.
Enjoy hassle-free purchasing with secure payment options and fast, reliable shipping. Backed by JET’s reputation for quality and performance, this milling machine is a must-have for any professional workshop.

SKU: specialty-metalworking-tools-4902728794248 Categories: Specialty Metalworking Tools, Specialty Power Tools, Specialty Tools, Tools & Equipment Tags: 230v, EXTdropship, LTL, New, Tools & Equipment

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

Meehanite Castings
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Chrome plated motor shaft with lower bearing support
Spindle head is internally cooled
Heavy duty splined motor drive
One piece quill pinion and shaft
Three stage power downfeed with automatic stop
Heavy duty spindle brake
Locks on all movable surfaces
Precision hardened and ground ways and table
Adjustable gibs throughout
Internal coolant tank built into casting base for use with coolant system (coolant pump not included)
Tolerance test sheet included
One shot lubrication system
Way covers
Draw bar
Tool box with tools

What’s in The Box

JTM-4VS Variable Speed Vertical Milling Machine 230/460V 3Ph 690182
Owner’s Manual

Warranty

JET Red Assurance 2-Year Warranty
30 Day Satisfaction Guaranteed

Specifications

Spindle Taper (In. x TPI)	R-8
Table Size (L x W) (In.)	9 x 42
Quill Diameter (In.)	3-3/8
Number of Spindle Speeds	8
Range of Spindle Speeds (RPM)	80 – 2,720
Quill Down Feed Rates (IPR)	.0015 – .003 – .006
Spindle Travel (In.)	5
Head Movement (Deg.)	90 R and L, 45 F and B
Max Distance Spindle to Table (In.)	17-1/2
Distance Spindle to Column (Max.) (In.)	19
Distance Spindle to Column (Min.) (In.)	4-1/2
Collet Capacity	1/8 – 7/8
Table Longitudinal Travel (In.)	23-7/8
Table Cross Travel (In.)	12-1/2
T-Slots Number and Size (In.)	3 – 5/8
T-Slot Centers (In.)	2-1/2
Work Table Weight Capacity (Lbs.)	550
Travel of Knee (In.)	14-1/2
Travel of Ram (In.)	13-3/8
Motor (HP)	2 HP, 115/230V, 1Ph
Prewired (V.)	230
Overall Dimensions (L x W x H) (In.)	57 x 64 x 82
Weight (Lbs.)	2,200
