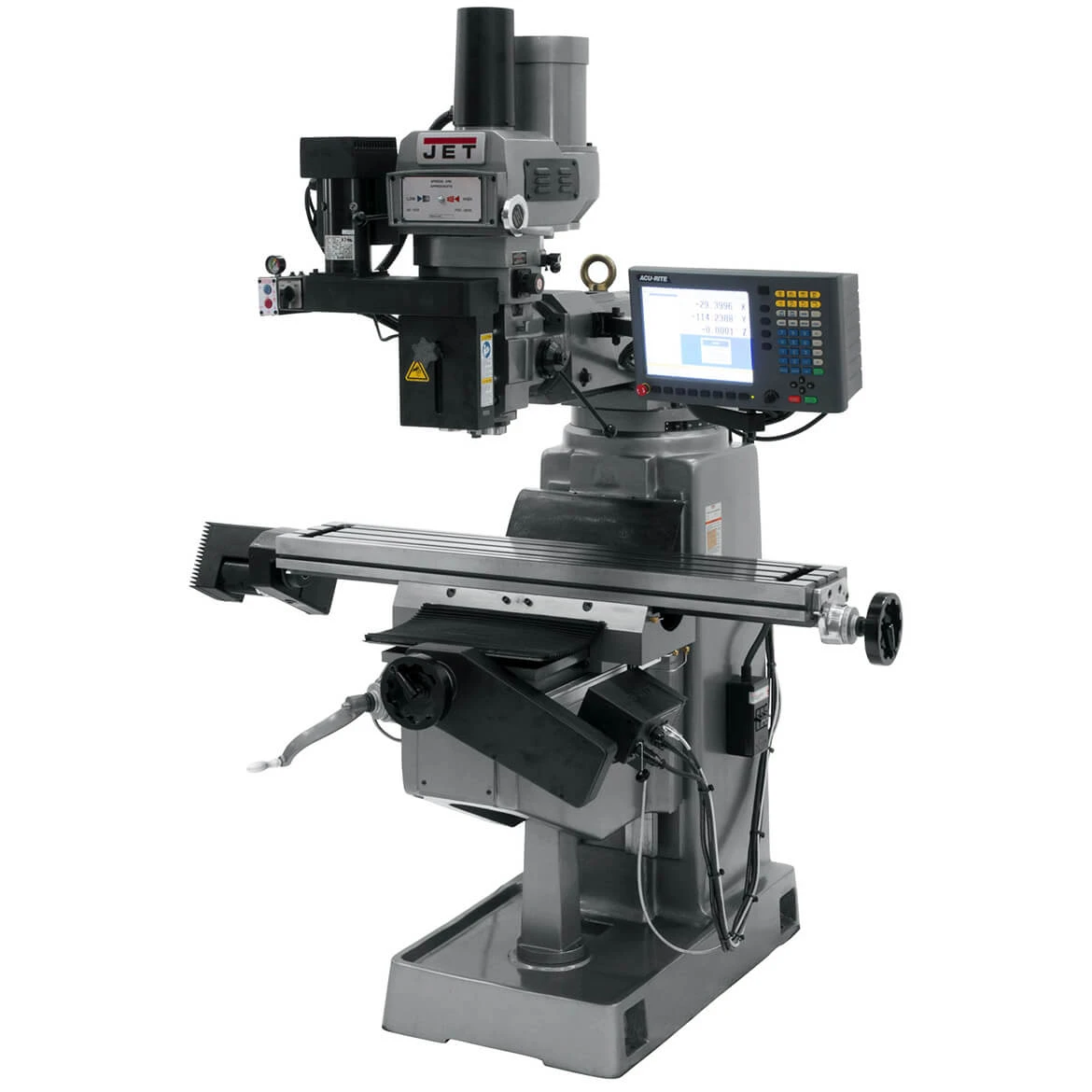

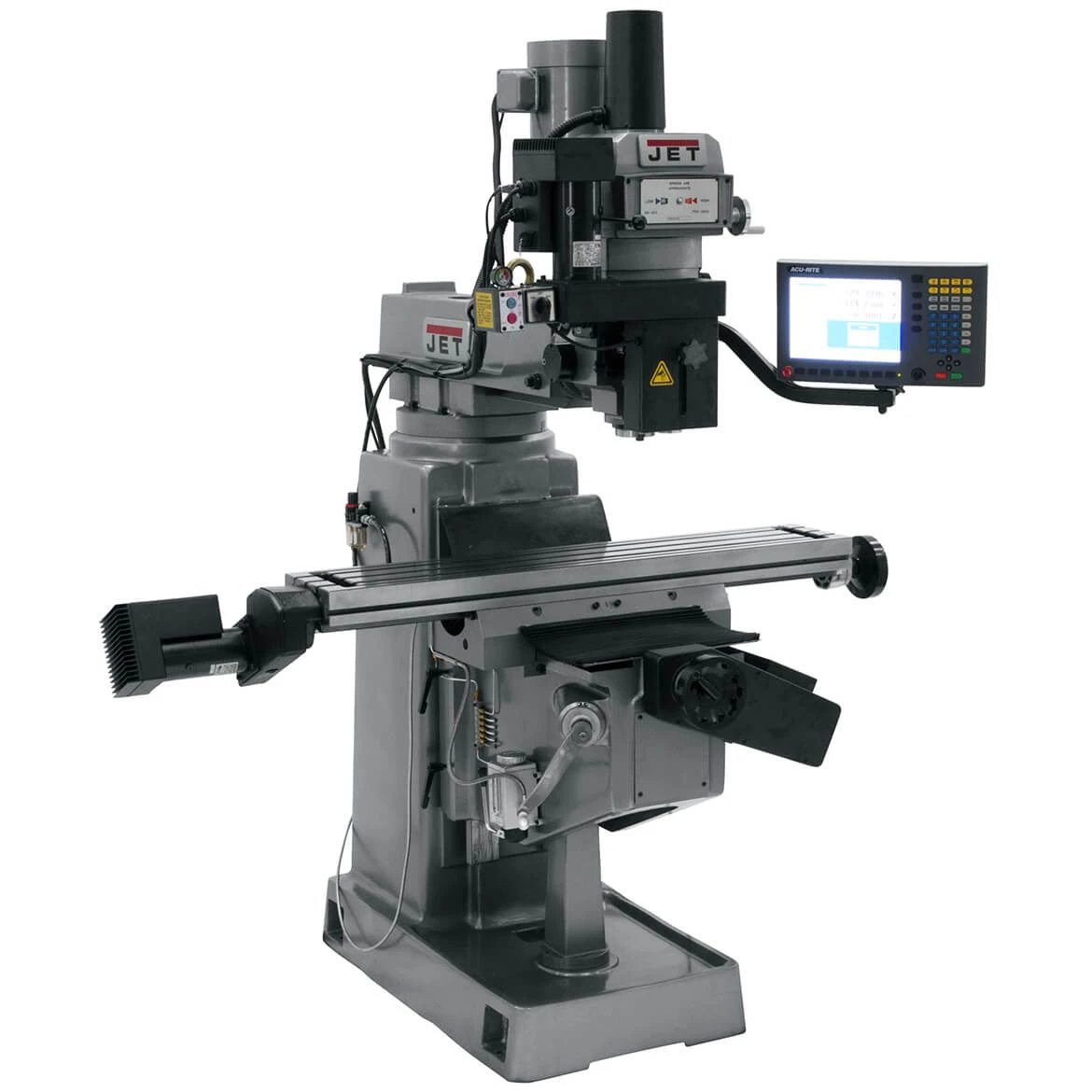

JET JTM-1050EVS2/230 230V Milling Machine with 2-Axis Acu-Rite MilPwr G2 CNC Controller

Features

• CNC Electronic Variable Speed Vertical Milling Machine Package JTM-1050EVS

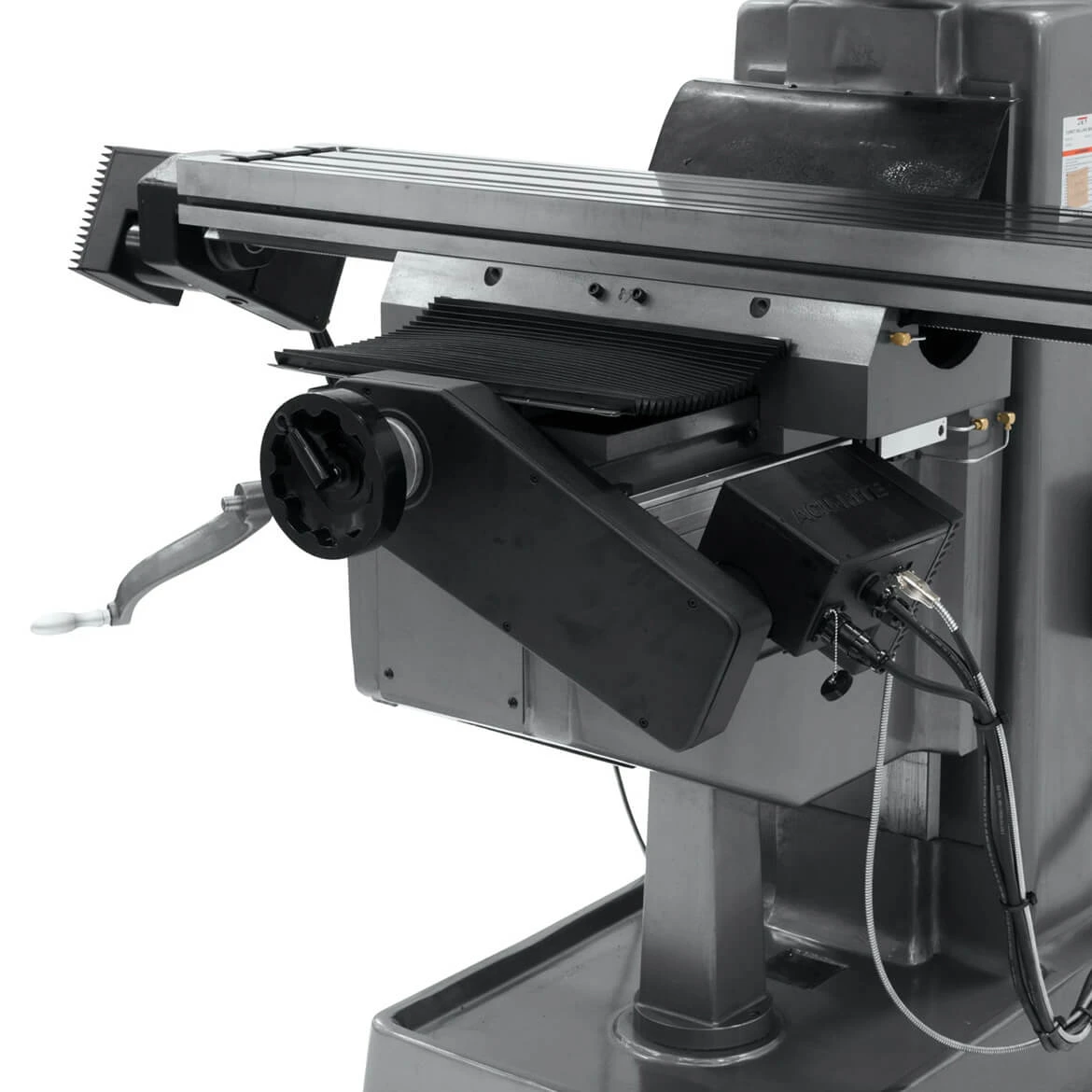

• Precision Ground Ball Screws eliminate backlash for precice lateral movements
• Closed loop feedback using Acu-Rite precision linear encoders with 0.00005″ resolution

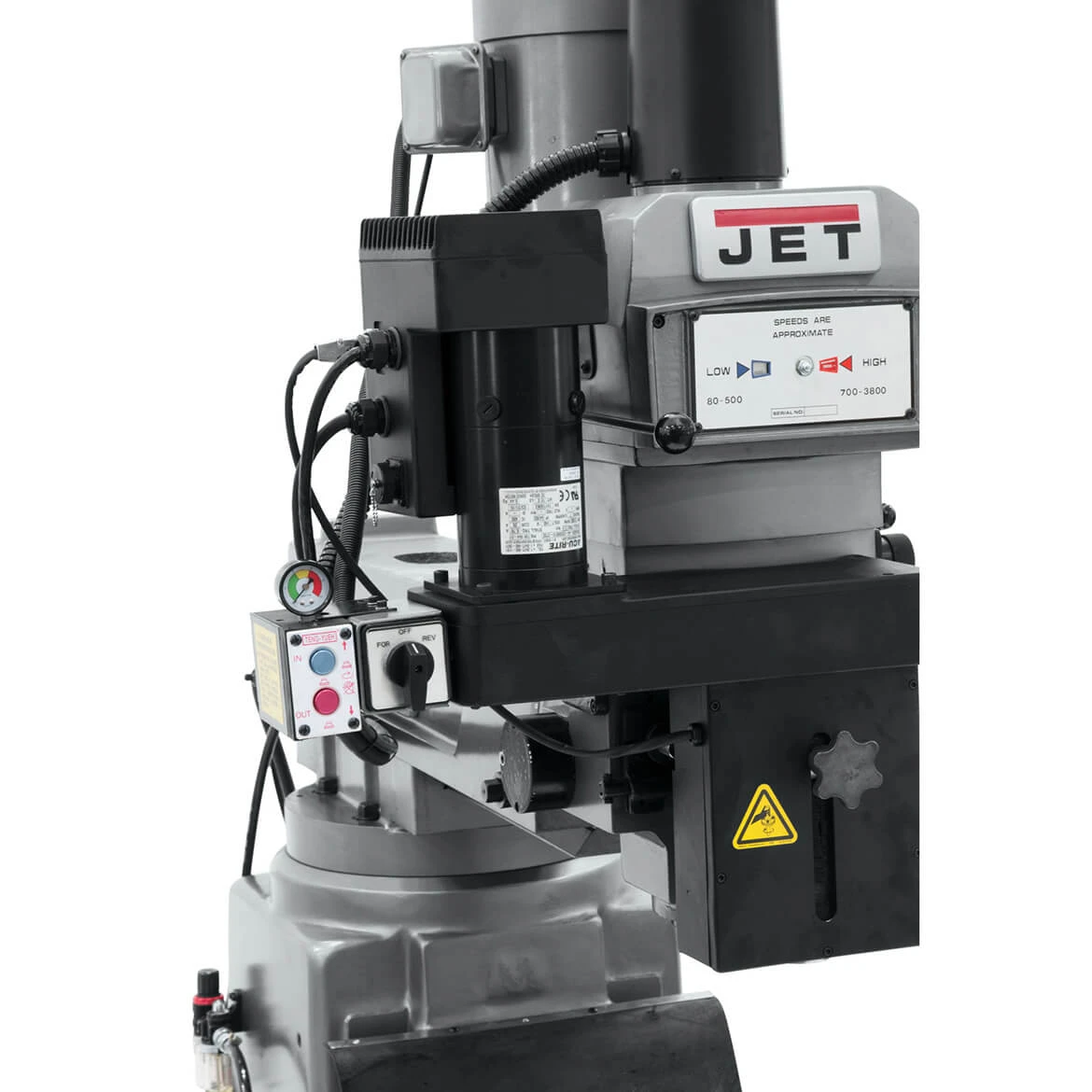

• Powerful DC Servo motor assemblies that include mounting castings and hardware
• Handwheels are included for manual operation
• USB and Ethernet compatible
• Simplified navigation that eliminates multiple menu screens
• 12.1″ High resolution display (1024 x 768) with 3D graphics
• 1 GHz Celeron M processor
• Expanded tool library and Datum offsets
• Program preview provides a graphical representation prior to operation
• Progam size limit increased by 90% to 9,999 steps
• Jog Control allows table movement, quickly from one location to another – using one axis at a time or any two axes simultaneously
• 3-D Contouring, ability to import and run G-code files from CAD/CAM programs
• Mirror/Repeat/Rotate/Explode/Merge, easily manipulate, explode and merge part programs to save time and reduce program steps
• Menu-prompted Conversational programming, easily create part programs, edit, reverse, change, delete and copy/move steps – follow the menu prompts and let MILLPWR G2 do the rest
• Built-in Calculator, perform standard, trig and geometry calculations and transfer them directly into part programs
• Custom Pockets and Islands utilize the new optimized path and ramp feed features
• Circles including the Pocket, Frame, Ring and Helix incorporate the new ramp feed feature
• May be used automatically or manually for ultimate shop versatility
• Available offline software
• Estimated runtime feature

What’s in The Box

• 230-Volt 3-Hp 3-Phase R-8 Mill

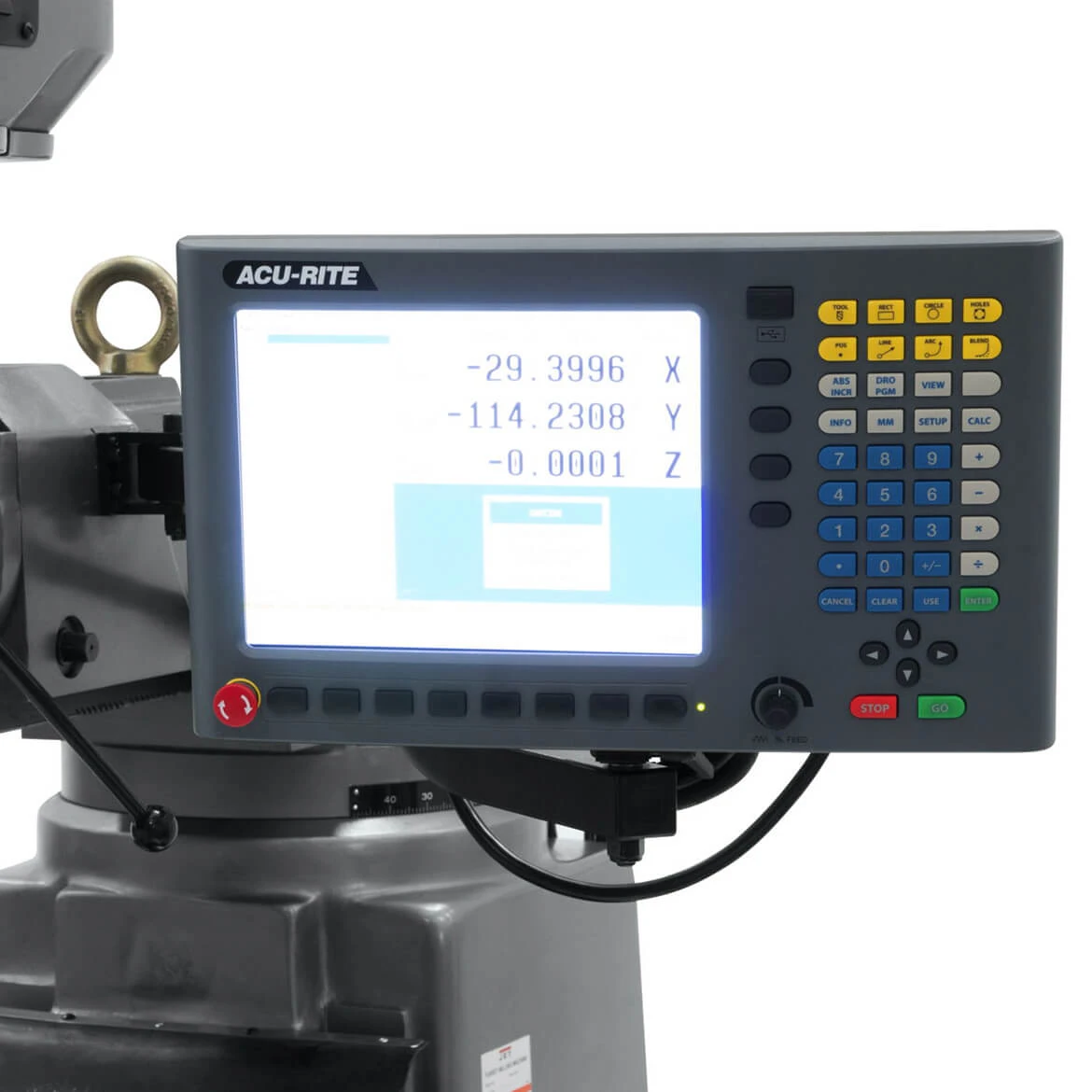

• Acu-Rite Milpower G2 CNC Controller
• Owner’s Manual

Warranty

• JET Red Assurance 2-Year Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	690675
Brand	Jet
Model	JTM-1050EVS2/230
Voltage	230V
Horsepower	3 Hp
Phase	3
Digital Readout	Newall DP700
Powerfeed	X-Axis
Spindle Taper (in. x tpi)	R-8
Table size (L X W)	10 in. x 50 tpi
Quill Diameter	3-3/8 in.
Number of Spindle Speeds	60 – 4,500 Rpm
Quill Down Feed Rates	.0015 – .003 – .006 ipr
Spindle Travel	5 in.
Head Movement	90-Degrees R and L 45-Degrees F and B
Max. Distance Spindle to Table	20-3/4 in.
Max. Distance Spindle to Column	26-3/4 in.
Min. Distance Spindle to Column	4-3/4 in.
Collet Capacity	1/8 in. – 7/8 in.
Table Longitudinal Travel	35-1/2 in.
Table Longitudinal Travel w/ Powerfeed	29-7/8 in.
Table Cross Travel	14-3/4 in.
T-Slots Number and Size	3 in. and 5/8 in.
T-Slot Centers	2-1/2 in.
Work Table Weight Capacity	840 lbs.
Travel of Knee	16-1/8 in.
Travel of Ram	15-7/8 in.
Saddle Width	11-1/2 in.
Column Width	20 in.
Inverter Typ	Delta, B
Length	66 in.
Width	63 in.
Height	87 in.
Product Weight	2,860 lbs.
