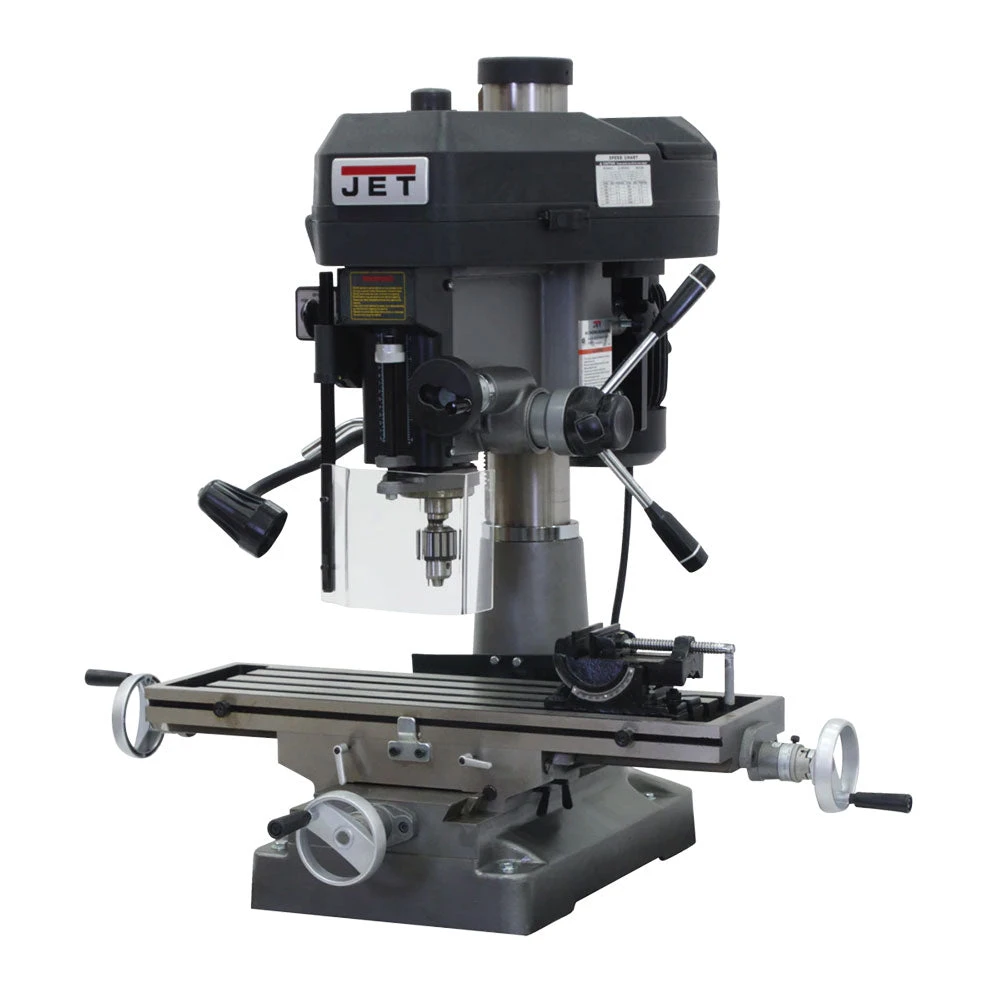

JET JMD-18PFN 115V/230V 2 HP 1 Phase Mill/Drill W/ Power Downfeed

JET JMD-18PFN 115V/230V 2 HP 1 Phase Mill/Drill with Power Downfeed – Precision Milling Machine

Original price was: $581.00.Current price is: $92.99.

The JET JMD-18PFN Mill/Drill is a versatile and powerful 2 HP milling machine designed for precision and efficiency. It operates on both 115V and 230V, making it adaptable to various workshop setups.
Equipped with a power downfeed feature, this mill/drill ensures smooth and accurate drilling and milling operations. The power downfeed can be easily adjusted for optimal performance.
Built with durability in mind, the JMD-18PFN features a robust construction and high-quality materials, ensuring long-term reliability and consistent performance in demanding environments.
This milling machine is ideal for both professional machinists and DIY enthusiasts. Its user-friendly design and precision features make it suitable for a wide range of milling and drilling tasks.
Jet Tools offers this product with a commitment to quality and customer satisfaction. Enjoy fast and reliable shipping, secure payment options, and excellent customer support when you purchase this milling machine.

SKU: milling-machines-5214382063752 Categories: Milling Machines, More Tools, Tools & Equipment Tags: 115v, Corded, Dropship, Power, Tools & Equipment

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

One-piece cast iron column for added support
Belt cover with quick slide latch allows faster belt adjustment to change spindle speeds
The base taper allows for easier cleanup
Drill Press angle vise
UL Listed motor
Extra-large worktable
Positive quick-stop knob and easy to read internal depth gauge
360-degree head swivel
Work lamp
Heavy-duty power downfeed with manual fine feed (JMD-18PFN)
1/2” drill chuck, chuck arbor
Drawbar
Drill Chuck Guard
Adjustable Carbide face mill

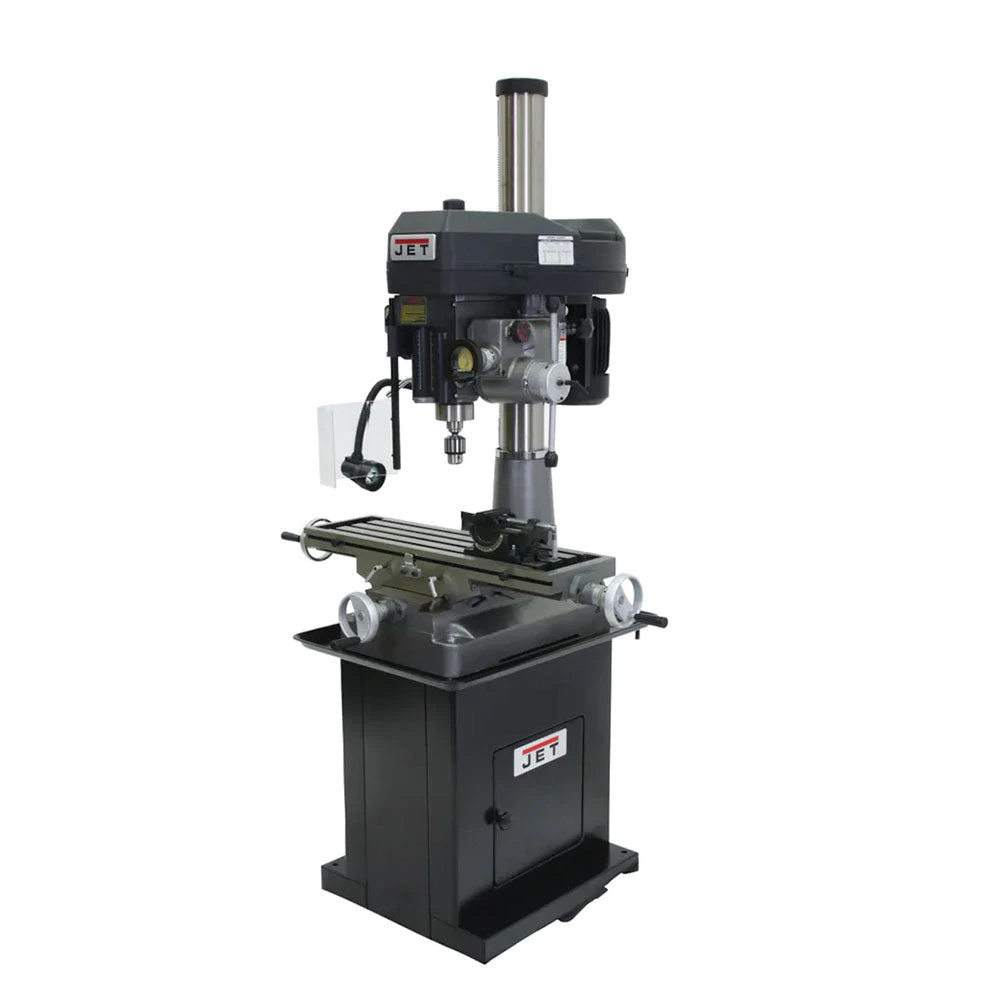

Mill Drill Stand, p/n 320020, shown in some images, is optional

What’s in The Box

Mill/Drill w/ Power Downfeed
Owner’s Manual

Warranty

2 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	JMD-18PFN
Brand	Jet
Volts	115/230
Horsepower	2
Phase	1
Powerfeed	Downfeed
Drilling Capacity	1-1/4 in
Face Mill Capacity	3 in
End Mill Capacity	3/4 in
Swing	15-7/8 in
Max Distance Spindle to Table	28 in
Spindle Taper (in x TPI)	R-8
Spindle Travel	5 in
Spindle Travel Auto	4-1/4 in
Quill Down Feed Rates (IPR)	0.0047, 0.007, 0.001
Quill Diameter	3
Column Diameter	4-1/2 in
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	150 -3000
Table Size (LxW)	9-1/2 x 31-3/4 in
Table Longitudinal Travel	20-1/2 in
Work Table Weight Capacity	400 lbs
T-Slots Number and Size	4 and 5/8 in
T-Slot Centers	1-13/16 in
Dimensions (L x W x H)	47 x 40 x 51
Weight	700 lbs
