JET JDP-20MF 20" Floor Drill Press 115/230V 1PH - 354170

JET JDP-20MF 20″ Floor Drill Press 115/230V 1PH – 354170 | Heavy-Duty Power Tool for Precision Drilling

Original price was: $526.00.Current price is: $93.99.

The JET JDP-20MF 20″ Floor Drill Press is a robust and reliable power tool designed for precision drilling in various materials. Its heavy-duty construction ensures long-lasting performance.
Equipped with a 20″ swing and a powerful motor, this drill press offers versatility and efficiency for professional workshops and DIY projects alike.
The JDP-20MF features a variable speed control, allowing you to adjust the drilling speed to suit different materials and applications, ensuring optimal results every time.
With a 115/230V 1PH motor, this drill press provides consistent power and performance, making it a must-have tool for any serious woodworker or metalworker.
Enjoy hassle-free logistics and secure payment options when you purchase the JET JDP-20MF Drill Press. Experience the quality and reliability of JET tools today!

SKU: drill-presses-2612386758774 Categories: Drill Presses, Power Tools, Tools & Equipment Tags: Corded, Dropship, LTL, New, Power

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

Hinged metal belt and pulley cover
Quick adjustment motor mount for rapid changing of spindle speeds

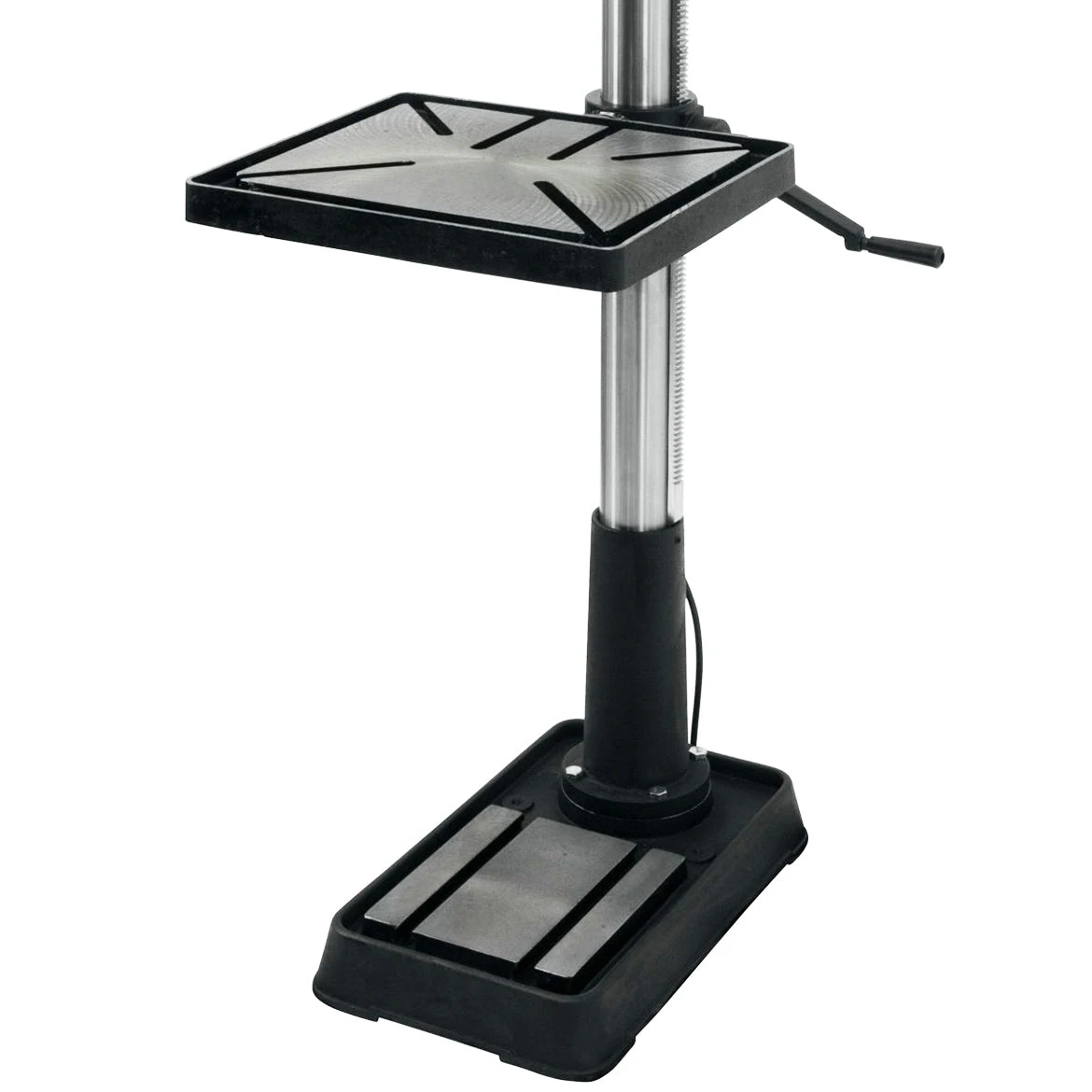

Rotating, 45Degree tilting, crank operated worktable with release clamp

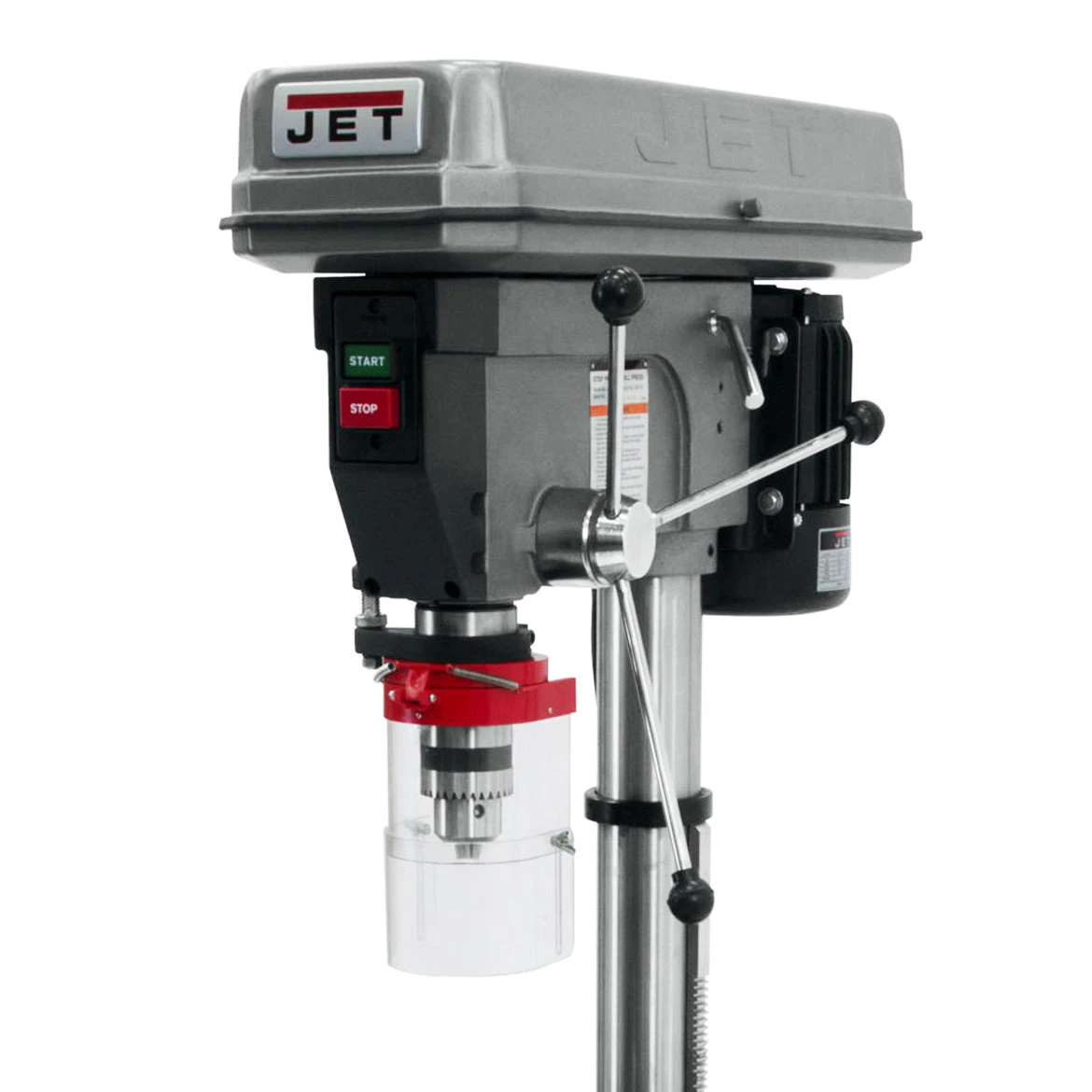

On/off switch located on front of drill press head
1/2 diameter external depth stop with three nut locking feature for quick adjustment
Adjustable tension spindle return spring
Spindle is supported by high quality bearings
Drill chuck and key included
Telescoping safety spindle guard

What’s in The Box

JET JDP-20MF, 20 Floor Drill Press, 1PH 115/230V

Warranty

JET Red Assurance 2-Year Warranty
JET warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these JPW Industries Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET tools.
30 Day Satisfaction Guaranteed

Specifications

Model	354170
UPC	662755104121
Style (Type)	Variable
Drills to Center of Circle (in)	20
Drilling Capacity Cast Iron (In.)	1
Drilling Capacity Mild Steel (In.)	3/4
Distance Column to Spindle (In.)	10
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	150 – 4,200
Column Diameter (In.)	3-3/8
Spindle Taper (In. x TPI)	MT-3
Spindle Travel (In.)	4-5/8
Spindle Distance to Base (In.)	46-3/4
Spindle Distance to Table (Max.) (In.)	29-1/8
Table Size (L x W) (In.)	18-1/2 x 16
Table Travel (In.)	21-1/2
T-Slots Number and Size (In.)	6, 1/2
T-Slot Centers (In.)	3-1/2
Work Table Weight Capacity (Lbs.)	80
Base Dimensions (In.)	13-3/4 x 22-3/4
Base Work Table (In.)	13 x 8-1/2
Base Slots Number and Size (In.)	2, 5/8
Motor (HP)	1-1/2 HP, 115/230V, 1 Ph
Overall Dimensions (L x W x H) (In.)	33-1/2 x 18-1/2 x 67
Weight (Lbs.)	282
