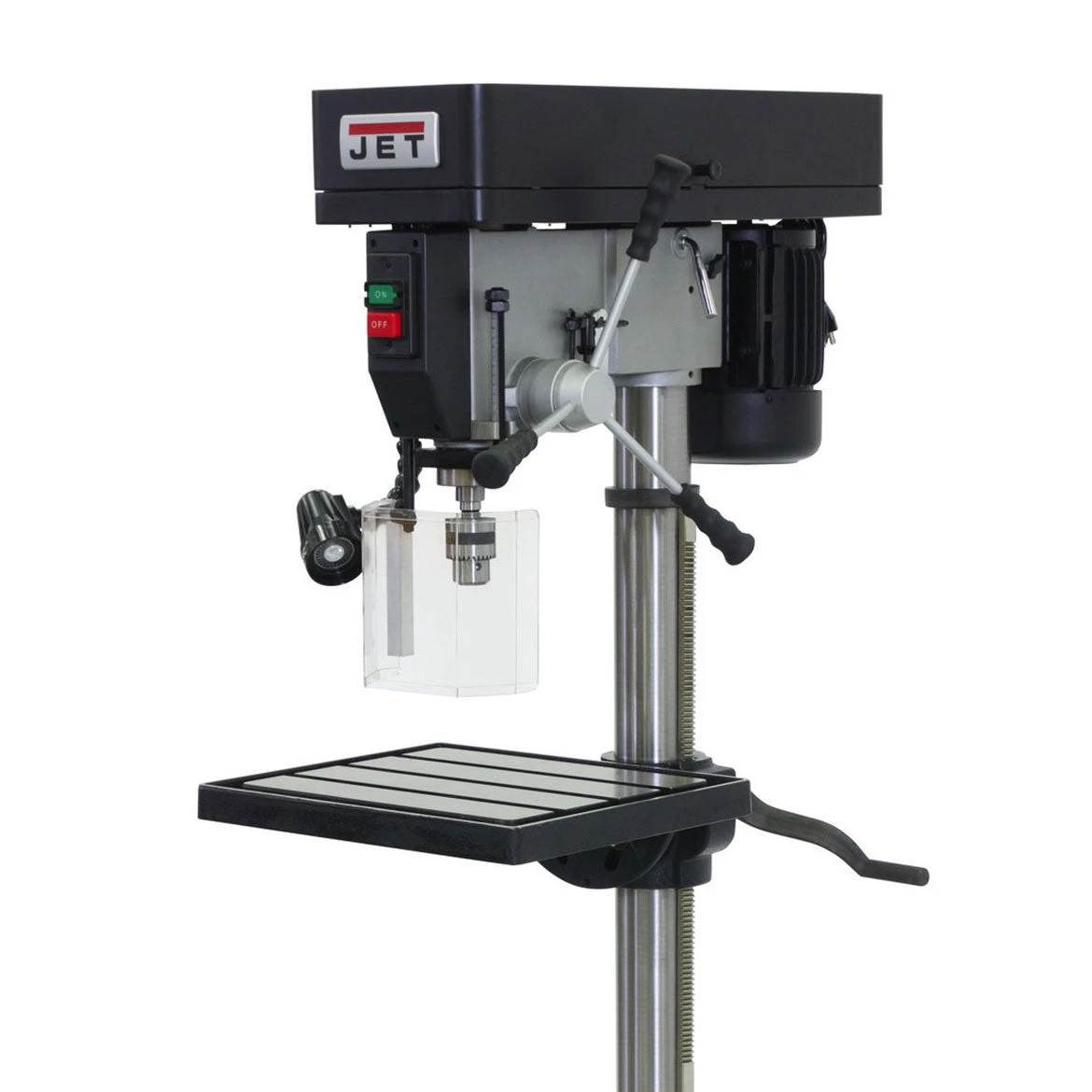

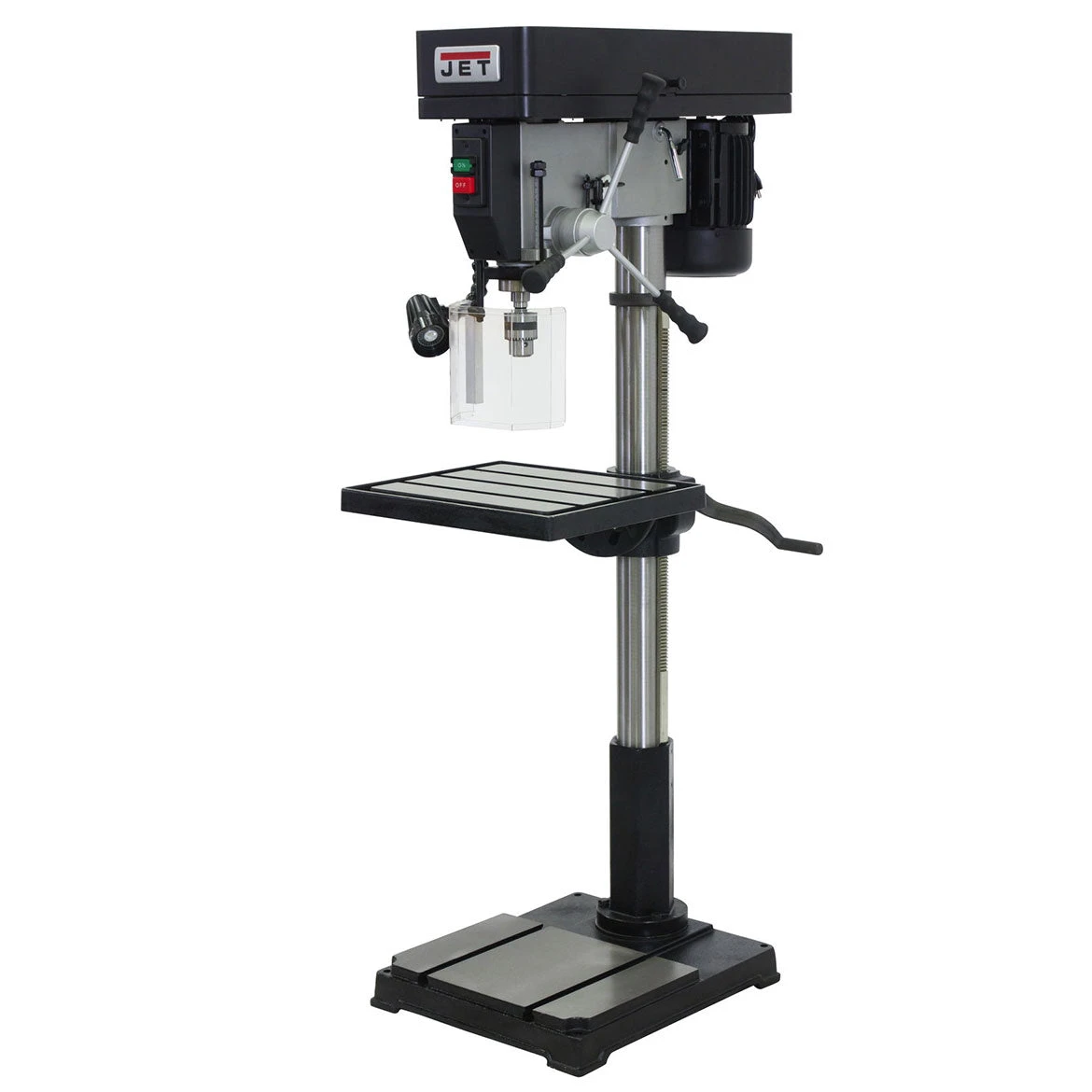

JET IDP-22 1-Hp 115/230V 22" Heavy Duty Industrial Floor Model Drill Press Tools & Equipment

JET IDP-22 1-Hp 115/230V 22″ Heavy Duty Industrial Floor Model Drill Press | Power Tools & Equipment

Original price was: $451.00.Current price is: $95.99.

The JET IDP-22 Drill Press is a robust, 1-Hp motor-powered tool designed for heavy-duty industrial applications, offering precision and durability.
Features a 22″ swing, 115/230V power options, and a floor model design for stability and ease of use in demanding environments.
Ideal for professionals and workshops, this drill press ensures accurate drilling with its adjustable speed settings and heavy-duty construction.
Backed by Jet’s reputation for quality and reliability, the IDP-22 is a trusted choice for industrial-grade drilling tasks.
Easy to integrate into your workflow with flexible payment options and reliable logistics for fast delivery to your location.

SKU: drill-presses-4902736593032 Categories: Drill Presses, Power Tools, Tools & Equipment Tags: Corded, Dropship, New, Power, Tools & Equipment

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

For added Safety, the IDP-22, 22″ Industrial Floor Model Drill Press follows strict guidelines and electrical requirements to be certified by the CSA Group.
Spindle is supported by high quality ball bearings
Hinged metal belt and pulley cover coupled with quick adjustment motor mount allow rapid changing of spindle speeds
Large Hand Grips designed with the users comfort in mind

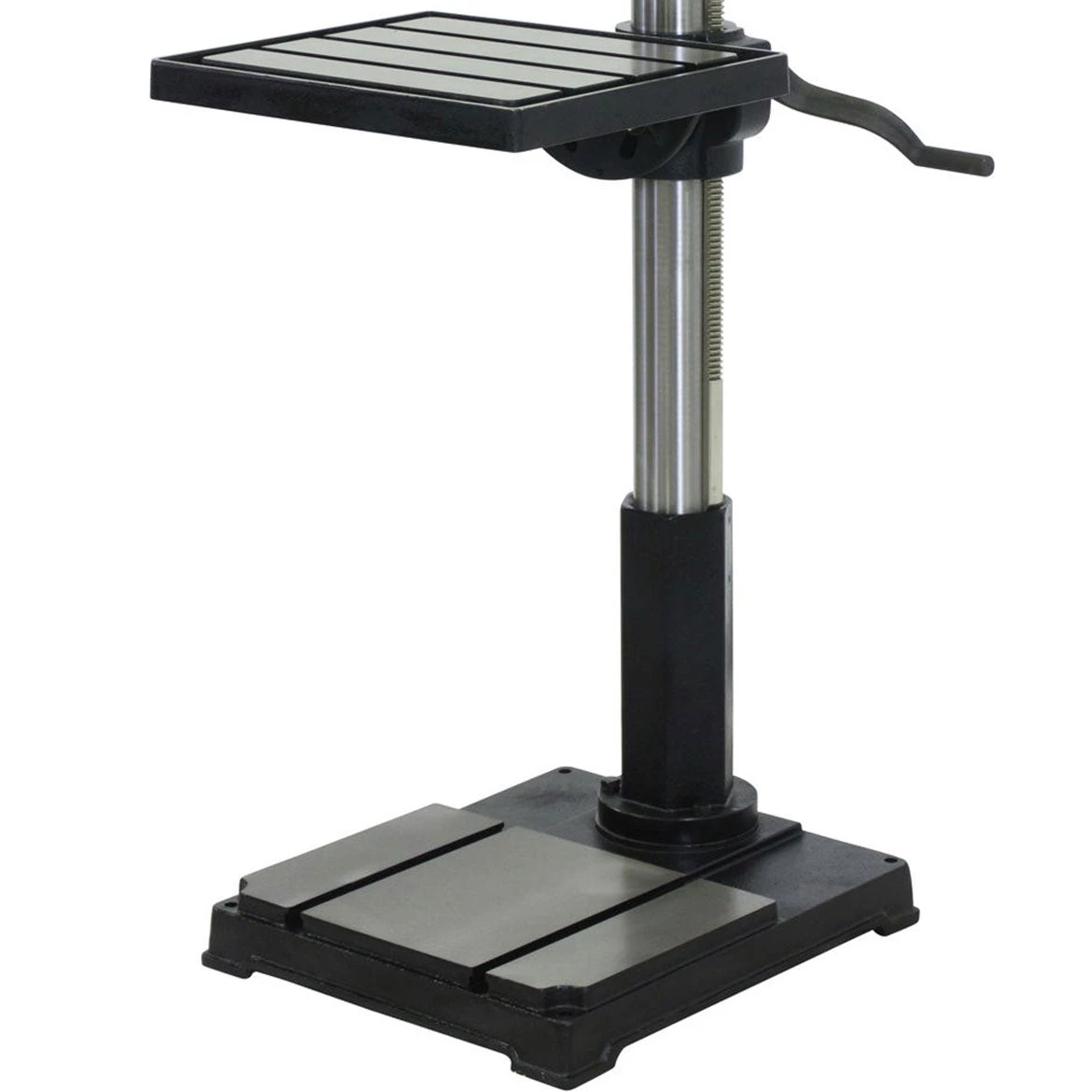

Rotating, 45° tilting, crank-operated worktable with quick release clamp
A 1/2″ diameter external positive depth stop with three nut locking feature for quick adjustment
Adjustable tension spindle return spring
Drill chuck and key attach to the side of the drill press always within reach of the operator
On/off switch located on front of the drill press head
Heavy Duty construction
Cast Iron table and base
Table ground for accuracy
STANDARD EQUIPMENT
LED Machine Lamp
Ground Table
Spindle Safety Guard
Drill Chuck and Key

What’s in The Box

22-Inch Industrial Floor Drill Press
Owner’s Manual

Warranty

2-Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

Model	IDP-22
Sku	354301
Brand	Jewt
Style (Type)	Belt Drive
Drills to Center of Circle (in)	22
Drilling Capacity Cast Iron (in.)	1-1/4
Drilling Capacity Mild Steel (in.)	1
Tapping Capacity Mild Steel (in.)	1
Distance Column to Spindle (in.)	10-7/8
Number of Spindle Speeds	12
Range of Spindle Speeds (Rpm)	175 – 3,050
Column Diameter (in.)	3-5/8
Spindle Taper (in. x Tpi)	MT-3
Spindle Travel (in.)	4-13/16
Spindle Distance to Base (in.)	48-1/2
Spindle Distance to Table (Max.) (in.)	28
Table Size (L x W) (in.)	18-5/8 x 16-1/8
T-Slots Number and Size (in.)	2 and 5/8
T-Slot Centers (in.)	3/4
Work Table Weight Capacity (lbs.)	176
Base Dimensions (in.)	22-5/8 x 19-7/16
Base Work Table (in.)	21-1/2 x 18-5/16
Base Slots Number and Size (in.)	2 and 5/8
Motor (Hp)	1-1/2
Voltage	115/230
Phase	Single
Weight (lbs.)	364
