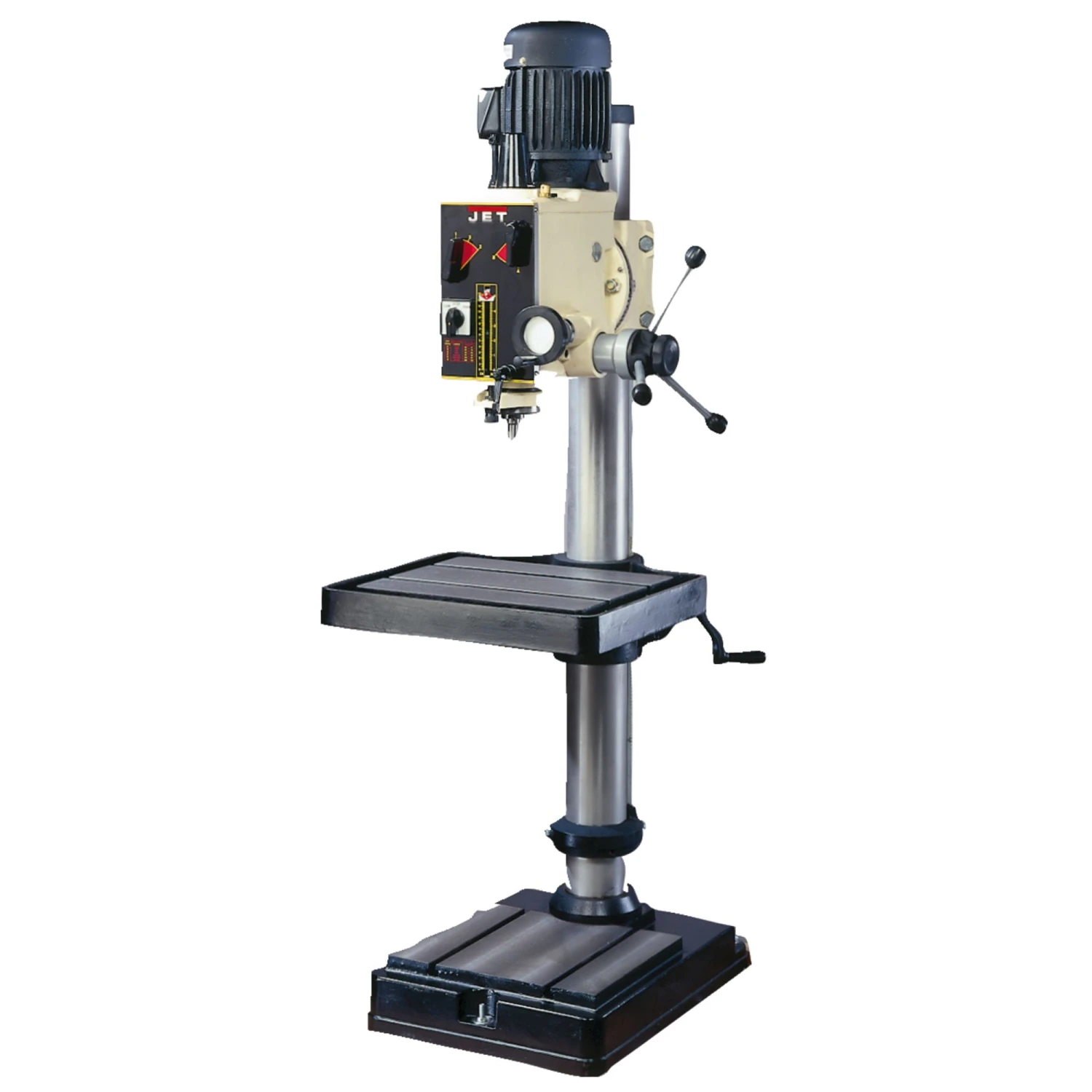

JET GHD-20 2-Hp 230V 20" Smooth Quiet Geared Head Drill Press W/ Metric Gauge

Jet GHD-20 2-HP 230V 20″ Smooth Quiet Geared Head Drill Press with Metric Gauge

Original price was: $541.00.Current price is: $97.99.

The Jet GHD-20 Drill Press delivers a powerful 2-HP motor and a 230V power supply, ensuring reliable performance for all your drilling needs.
Equipped with a 20″ smooth and quiet geared head, this drill press offers precision and ease of use, making it ideal for detailed woodworking and metalworking projects.
Includes a metric gauge for accurate measurements, enhancing the precision of your work and reducing the chance of errors.
Built with durability in mind, the Jet GHD-20 is designed to withstand heavy-duty use, making it a long-lasting addition to your workshop.
Enjoy hassle-free shipping and secure payment options when you purchase the Jet GHD-20 Drill Press. Elevate your craftsmanship with this top-tier power tool.

SKU: drill-presses-4902726860936 Categories: Drill Presses, Power Tools, Tools & Equipment Tags: 230v, LTL, New, Power, Tools & Equipment

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

Heavy-duty design allows a variety of precision drilling applications
Large production table and T-slotted base
Easy-to-read internal depth gauge
Three power downfeed rates
Calibrated fine downfeed built in
TEFC motor
Built-in spindle lock
Head tilts left or right
Easily accessible table raiser
Drill chuck arbor
Draw bar

What’s in The Box

JET GHD-20, 20″ Gear Head Drill Press 230V 3PH
Owner’s Manual

Warranty

2-Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

Model	354020
UPC	662755803840
Style (Type)	Geared Head
Drills to Center of Circle (In.)	20
Drilling Capacity Cast Iron (In.)	1-1/2
Drilling Capacity Mild Steel (In.)	1-1/4
Column Diameter (In.)	4-1/2
Distance Column to Spindle (In.)	10
Range of Spindle Speeds (RPM)	Low – 60, 130, 230, 450, 800, 1500; High 120, 260, 460, 900, 1600, 3000
Spindle Taper (In. x TPI)	MT-3
Spindle Travel (In.)	5
Spindle Distance to Base (In.)	44-15/16
Spindle Distance to Table (Max.) (In.)	30-1/2
Table Size (L x W) (In.)	21-3/4 x 19-1/2
Table Travel (In.)	25-1/2
T-Slots Number and Size (In.)	2 and 5/8
T-Slot Centers (In.)	9
Work Table Weight Capacity (Lbs.)	275
Base Dimensions (In.)	26 x 18
Base Work Table (In.)	15-1/4 x 13
Base Slots Number and Size (In.)	2 and 5/8
Motor (HP)	2 HP (2 Speed) , 230V, 3Ph
Prewired (V.)	230
Overall Dimensions (L x W x H) (In.)	32 x 24 x 71
Weight (Lbs.)	660
