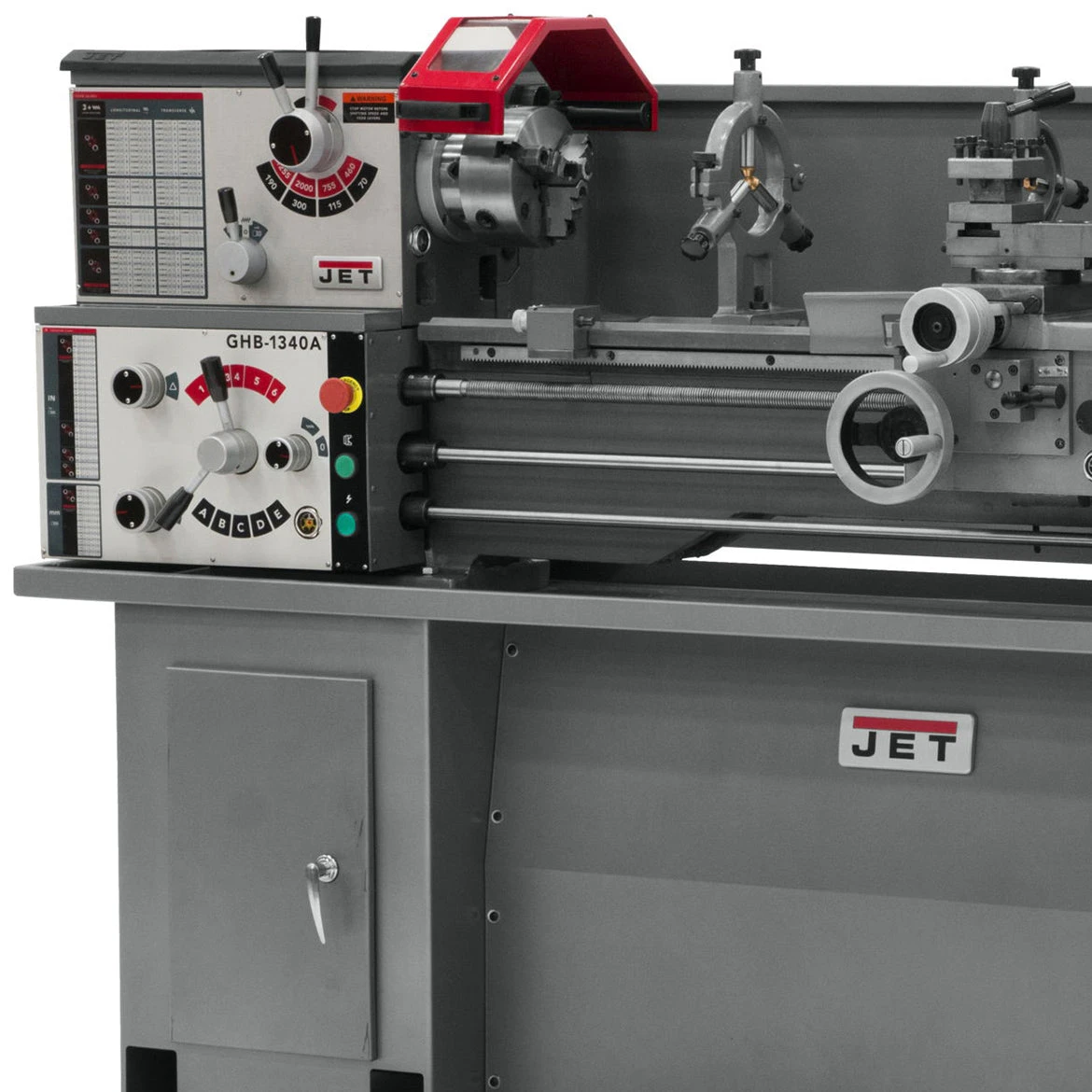

JET GHB-1340A 2-Hp 230V Quiet Operation Geared Head Bench Lathe - 321357A

JET GHB-1340A 2-Hp 230V Quiet Operation Geared Head Bench Lathe – 321357A | Precision Lathe for Professional Woodworking

Original price was: $480.00.Current price is: $94.99.

The JET GHB-1340A 2-Hp 230V Bench Lathe is engineered for precision and durability, making it an ideal choice for professional woodworkers and hobbyists alike.
Featuring a quiet operation and a robust geared head design, this lathe ensures smooth and accurate turning for all your woodworking projects.
With a powerful 2-Hp motor and 230V power supply, the JET GHB-1340A delivers consistent performance and handles heavy-duty tasks with ease.
This bench lathe comes with a user-friendly design, including easy-to-adjust settings and a compact footprint, perfect for any workshop setup.
Enjoy hassle-free purchasing with secure payment options and fast, reliable shipping. Trust JET for high-quality tools and exceptional customer service.

SKU: lathes-4902728499336 Categories: Lathes, Power Tools, Tools & Equipment Tags: 230v, Corded, LTL, Power, Tools & Equipment

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
Enclosed gearbox design provides smooth, quiet operation
Fast, easy speed changes
Hardened and ground gears are featured in the headstock and gearbox
D1-4 spindle is precision ground for accuracy and supperted by high quality tapered roller bearings
Headstock is constantly oiled during operation
Gear box gives wide inch threading and feed capabilities with no gear changes
V-way bed is induction hardened and ground
Gap bed section provided for large diameter work
Independent leadscrew and feed rod
Spindle actuation control is apron mounted
Compound and cross slide have backlash elimination
Adjustable gibs are incorporated in the carriage and slideways
Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
Oil pan included
Tolerance test certificate included
6″ 3-jaw direct mount chuck with top reversing jaws
8″ 4-jaw chuck
12″ face plate
Steady and follow rest
Four-way tool post
Metric change gear
Splash guard
Centers and headstock center sleeve
Threading dial
Tool box with tools

What’s in The Box

GHB-1340A, Gear Head Bench Lathe 321357A
Owner’s Manual

Warranty

JET Red Assurance 2-Year Warranty
30 Day Satisfaction Guaranteed

Specifications

Size	13 x 40
Swing Over Bed (In.)	13
Swing Over Cross Slide (In.)	7-25/32
Swing Through Gap (In.)	18-3/4
Length of Gap (In.)	8
Distance Between Centers (In.)	43
Spindle Bore (In.)	1-3/8
Spindle Mount	D1-4
Spindle Taper with Sleeve	MT-5 (MT-3)
Number of Spindle Speeds	8
Range of Spindle Speeds (RPM)	70 – 2,000
Number of Longitudinal and Cross Feed Rates	40
Range of Longitudinal Feeds (IPR)	.0018 – .0374
Range of Cross Feeds (IPR)	.0006 – .0130
Number of Inch Threads	38
Range of Inch Threads (TPI)	3-1/2 – 80
Number of Metric Threads	23
Range of Metric Threads	.45 – 10
Max Tool Size (In.)	5/8 x 5/8
Compound Slide Travel (In.)	2-11/16
Cross Slide Travel (In.)	6-5/16
Carriage Travel (In.)	35
Tailstock Spindle Travel (In.)	3-3/4
Taper in Tailstock Spindle	MT-3
Follow Rest Capacity (In.)	2-3/8
Steady Rest Capacity (In.)	2-3/4
Width of Bed (In.)	7-3/8
Motor (HP)	2 HP, 230V, 1Ph
Prewired (V.)	230
Weight (Lbs.)	1,154
Overall Dimensions (L x W x H) (In.)	79 x 28-1/2 x 30
Drive	Geared Head
Style (Type)	Bench – Geared Head
