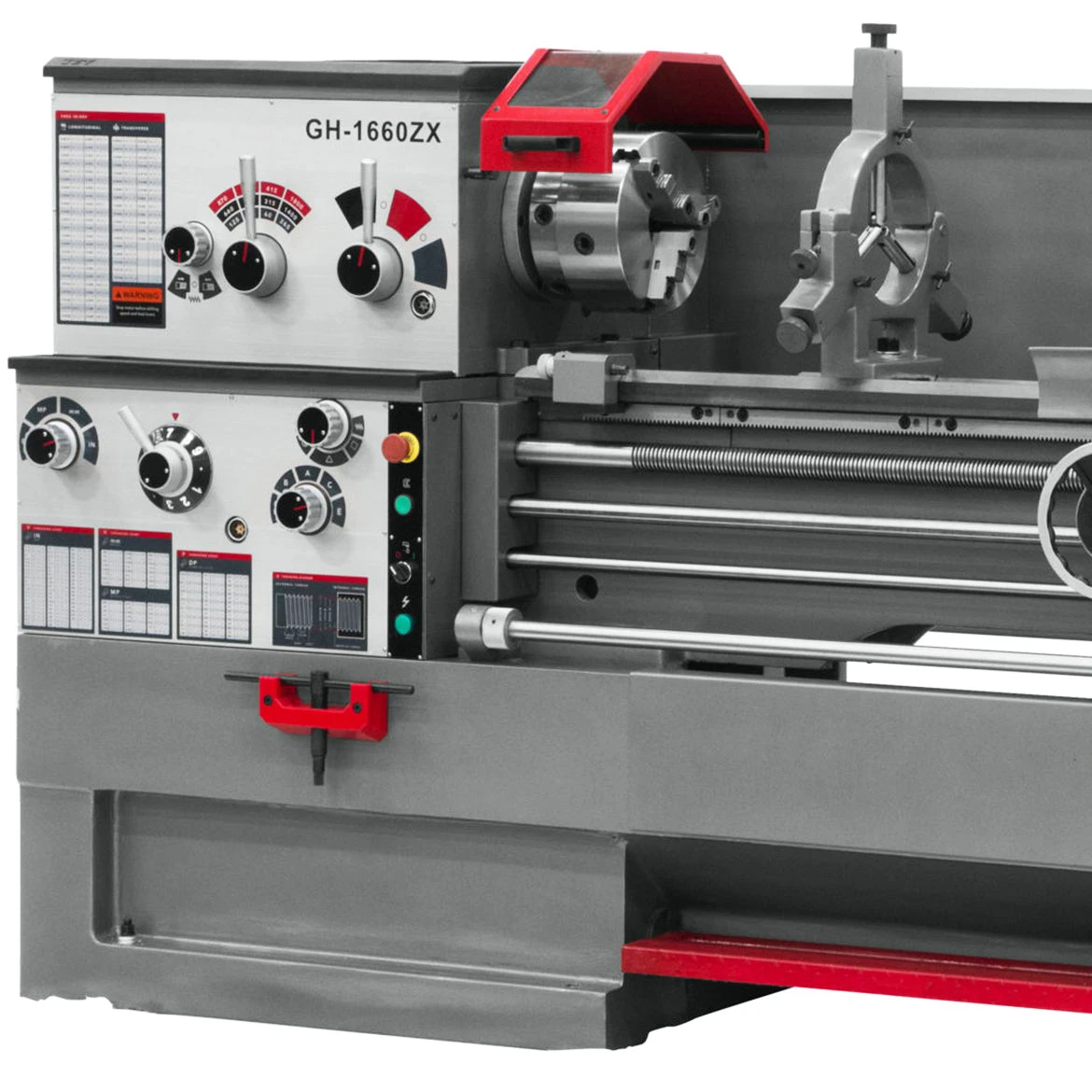

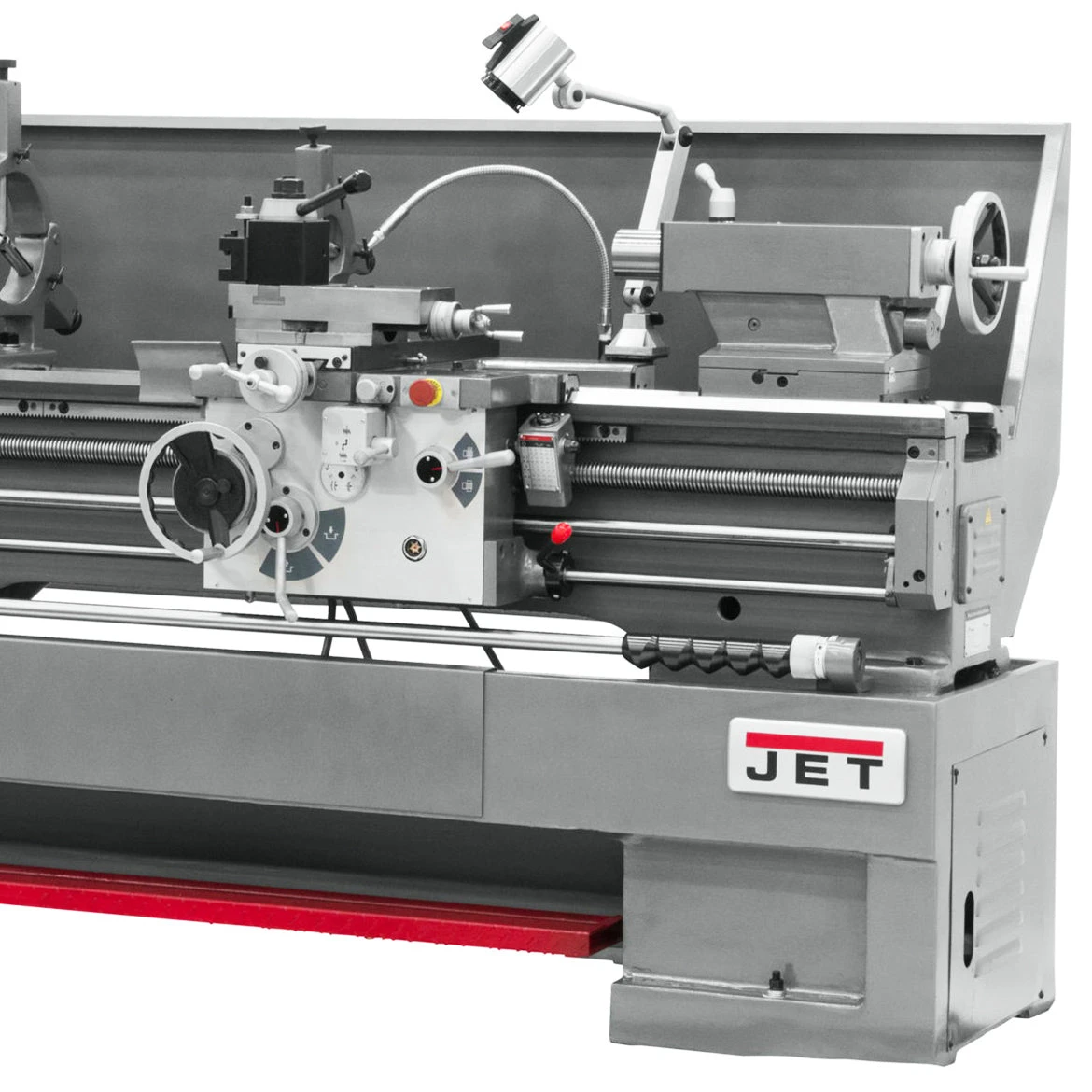

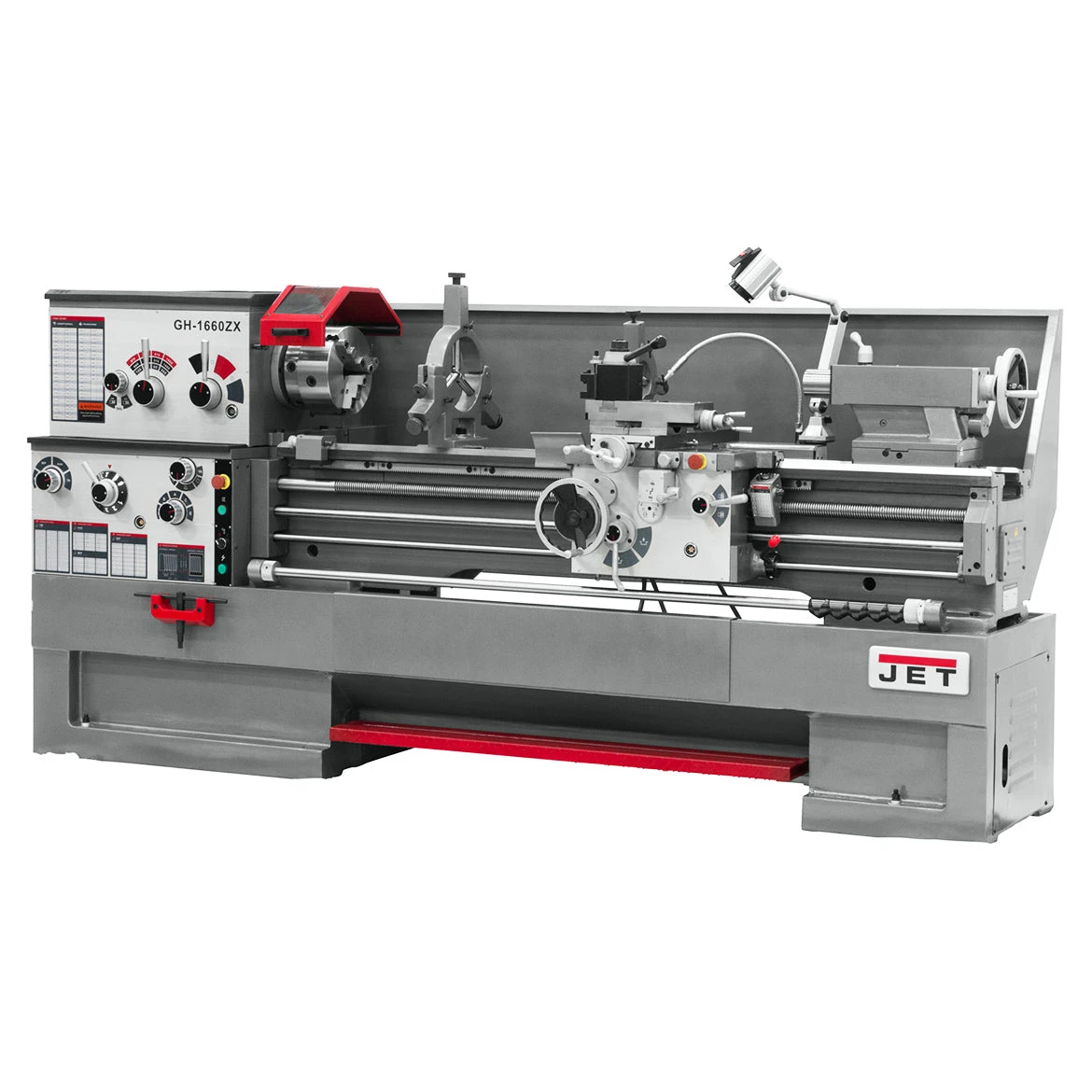

JET GH-1660ZX 7-1/2-Hp 230/460V 3-1/8" Durable Spindle Bore Geared Head Lathe Tools & Equipment

JET GH-1660ZX 7.5-Hp Geared Head Lathe with 3-1/8″ Spindle Bore | 230/460V | Durable Tools & Equipment

Original price was: $503.00.Current price is: $96.99.

The JET GH-1660ZX Geared Head Lathe features a powerful 7.5-Hp motor and a 3-1/8″ spindle bore, designed for heavy-duty and precision machining tasks.
Built for durability, this lathe is equipped with a robust geared head design, ensuring smooth operation and long-lasting performance in demanding environments.
Versatile and reliable, the GH-1660ZX operates on 230/460V power, making it suitable for professional workshops and industrial applications.
Jet’s GH-1660ZX lathe is perfect for turning, facing, and threading operations, offering exceptional accuracy and control for advanced machining projects.
Purchase with confidence! Jet provides secure payment options and reliable logistics to ensure your lathe arrives safely and ready for use.

SKU: lathes-4902727745672 Categories: Lathes, Power Tools, Tools & Equipment Tags: 230v, Corded, Dropship, Power, Tools & Equipment

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

3-1/8” bore spindle is supported by two tapered and one ball bearings
Chrome molybdenum headstock gears are hardened, ground and shaved
Universal gearbox allows inch, metric, diametral and module pitch threads, no change gears required
Carriage features one-shot lubrication and Turcite-B on bed sliding surfaces
T-slotted compound slide featuring four-way tool post
One piece cast iron base absorbs vibration allowing heavier cuts
High quality ANSI Class 50 wear resistant cast iron bed ways are hardened and ground
Removable gap allows large diameter work
Five position automatic carriage stop increases productivity
Attractive chrome levers, dials and knobs complete this impressive package
Meehanite Castings
Standard Equipment
10” 3-jaw scroll chuck with top reversing jaws
12” 4-jaw independent chuck
12” face plate
Four-way tool post
Follow rest
Large capacity steady rest
Fully integrated coolant system
Full length splash guard and coolant return
Large easy to use foot brake
Articulating halogen work lamp
Centrally located controls with jog button
Threading dial
Mounting pads and levelers
Live center

What’s in The Box

GH-1660ZX, 3-1/8″ Spindle Bore Geared Head Lathe
Tool box with tools
Tolerance Test Certificate Included
Owner’s Manual

Warranty

JET Red Assurance 2-Year Warranty
30 Day Satisfaction Guaranteed

Specifications

Size	16 x 60
Swing Over Bed (In.)	16
Swing Over Cross Slide (In.)	10
Swing Through Gap (In.)	25-1/2
Length of Gap (In.)	12
Distance Between Centers (In.)	60
Spindle Bore (In.)	3-1/8
Spindle Mount	D1-8
Spindle Taper with Sleeve	MT-7 (MT-5)
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	25 – 1,800
Number of Longitudinal and Cross Feed Rates	122
Range of Longitudinal Feeds (IPR)	.0015 – .0913
Range of Cross Feeds (IPR)	.0006 – .0365
Number of Inch Threads	61
Range of Inch Threads (TPI)	1-5/8 – 72
Number of Metric Threads	24
Range of Metric Threads	.05 – 20
Max Tool Size (In.)	1 x 1
Compound Slide Travel (In.)	5-1/8
Cross Slide Travel (In.)	9
Carriage Travel (In.)	55-9/16
Tailstock Spindle Travel (In.)	5
Taper in Tailstock Spindle	MT-4
Follow Rest Capacity (In.)	1/2 – 3-1/2
Steady Rest Capacity (In.)	3/8 – 7
Width of Bed (In.)	13-1/8
Motor (HP)	7-1/2 HP, 230/460, 3 Ph
Prewired (V.)	230
Weight (Lbs.)	5,795
Overall Dimensions (L x W x H) (In.)	115 x 44 x 66
Drive	Geared Head
Style (Type)	Engine – Large Spindle Bore
