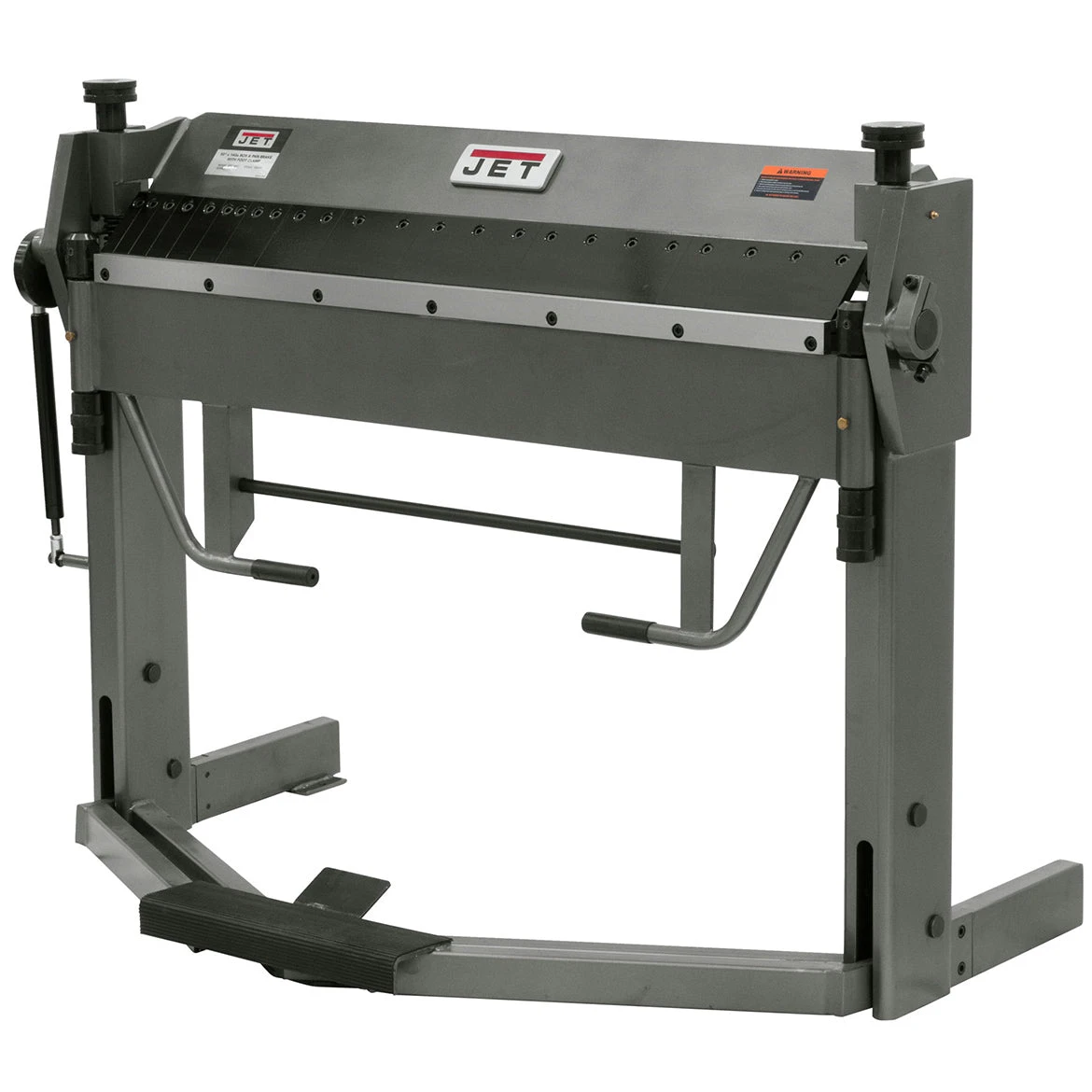

Jet BPF-1450 50″ X 14″ Durable Gauge Box/Pan Brake with Foot Clamp | Heavy-Duty Metalworking Tool

Features

• Precision and durability with innovative ergonomic features ensures ongoing accuracy and operation, without user fatigue.
• Wide Assortment of Finger widths allow greater versatility in the shop
• Black Ceramic Coated Fingers prevent rust and ensure longer finger life
• All body sections are welded steel plate with heavy truss rods and braces designed to give greater strength and durability
• Stop rod for repeatable bending
• Material clamping is foot operated to save strain on back and arms
• Air spring to assist in raising the clamping handle

What’s in The Box

• BPF-1450, 50″ x 14 Gauge Box and Pan Brake With Foot Clamp 752127
• Owner’s Manual

Warranty

• 2-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Style (Type)	Floor Box and Pan
Mild Steel Capacity (Gauge)	14
Bending Length Capacity (In.)	50
Maximum Box Depth (In.)	2-1/2
Maximum Lift of Beam (In.)	1-7/8
Number and Width of Fingers (In.)	1 ea 1, 1-1/8, 1-3/8, 1-1/2, 1-3/4, 2, 3, 4, 6, 7-3/4, 10, 10-5/8
Finger Nose Angle (Deg.)	42
Nose Radius (In.)	1/32
Overall Dimensions (L x W x H) (In.)	67 x 28 x 50
Weight (Lbs.)	900
