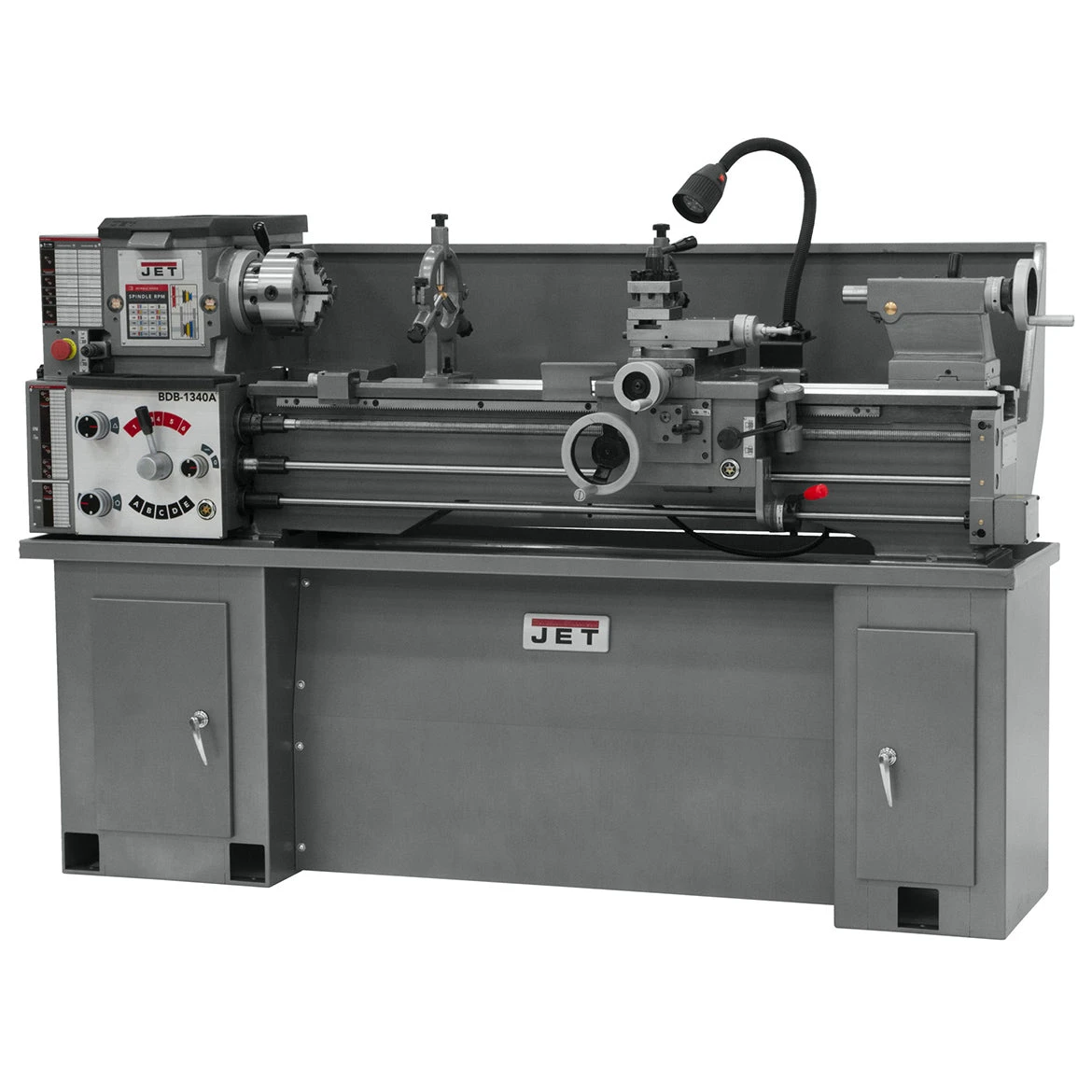

Tools & Equipment JET BDB-1340A 2-Hp 230V Belt Drive Bench Lathe W/ CBS-1340A Stand - 321102AK

JET BDB-1340A 2-Hp 230V Belt Drive Bench Lathe with CBS-1340A Stand – 321102AK | Premium Power Tool for Precision Woodworking

Original price was: $485.00.Current price is: $95.99.

The JET BDB-1340A 2-Hp 230V Belt Drive Bench Lathe is designed for precision woodworking, offering robust performance for both hobbyists and professionals.
This lathe features a powerful 2-Hp motor and a belt drive system, ensuring smooth and consistent operation for detailed woodworking projects.
Includes the CBS-1340A Stand, which provides a stable and durable base, enhancing the lathe’s performance and safety during use.
Ideal for a variety of woodworking tasks, this lathe is perfect for creating intricate designs and professional-grade finishes.
Enjoy the reliability and quality of JET tools, backed by excellent customer support and a commitment to superior craftsmanship.

SKU: lathes-4902728728712 Categories: Lathes, Power Tools, Tools & Equipment Tags: Corded, EXTdropship, LTL, New, Power

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

One of the most popular JET lathes now comes with an enclosed gearbox as a standard feature
Enclosed gearbox design provides smooth, quiet operation
Fast, easy speed changes
Low voltage motor controls
Helical cut headstock gears reudce noise
Change gears allow metric threading
Spindle is supported by precision tapered roller bearings
V-way bed is induction hardened and ground
Gap bed section provided for large diameter work
Independent leadscrew and feed rod
T-slotted compound slide with four-way tool post
Carriage mounted spindle control lever
Automatic feeding and threading are fully interlocked
Feed selectors travel in grooved ways
Tailstock may be offset for turning tapers and includes and inch/metric graduated quill
Oil pan included
Tolerance test certificate included
6″ 3-jaw direct mount scroll chuck with top reversing jaws
8″ 4-jaw independent chuck
12″ faceplate
Four-way tool post
Steady and follow rest
Metric change gear
Centers and headstock center sleeves
Threading dial
Tool box with tools

What’s in The Box

BDB-1340A With CBS-1340A Stand 321102AK
Owner’s Manual

Warranty

JET Red Assurance 2-Year Warranty
30 Day Satisfaction Guaranteed

Specifications

Size	13 x 40
Accessories	Stand
Swing Over Bed (In.)	13
Swing Over Cross Slide (In.)	7-25/32
Swing Through Gap (In.)	18-3/4
Length of Gap (In.)	8
Distance Between Centers (In.)	40
Spindle Bore (In.)	1-3/8
Spindle Mount	D1-4
Spindle Taper with Sleeve	MT-5 (MT-3)
Number of Spindle Speeds	12
Range of Spindle Speeds (RPM)	60 – 1,240
Number of Longitudinal and Cross Feed Rates	38
Range of Longitudinal Feeds (IPR)	0.0018-0.0374
Range of Cross Feeds (IPR)	0.0006-0.013
Number of Inch Threads	38
Range of Inch Threads (TPI)	3-1/2 – 80
Number of Metric Threads	23
Range of Metric Threads	0.45-10
Max Tool Size (In.)	5/8 x 5/8
Compound Slide Travel (In.)	2-11/16
Cross Slide Travel (In.)	6-5/16
Carriage Travel (In.)	35
Tailstock Spindle Travel (In.)	3-3/4
Taper in Tailstock Spindle	MT-3
Follow Rest Capacity (In.)	2-3/4
Steady Rest Capacity (In.)	2-5-8
Width of Bed (In.)	7-3/8
Motor (HP)	2 HP, 230V, 1Ph
Prewired (V.)	230
Weight (Lbs.)	1,175
Overall Dimensions (L x W x H) (In.)	71 x 32 x 45
Drive	Belt
Style (Type)	Bench
