JET 690408 JTM-4VS 230/460V Mill W/ 3-Axis ACU-RITE 203 DRO W/ X-Axis Powerfeed Tools & Equipment

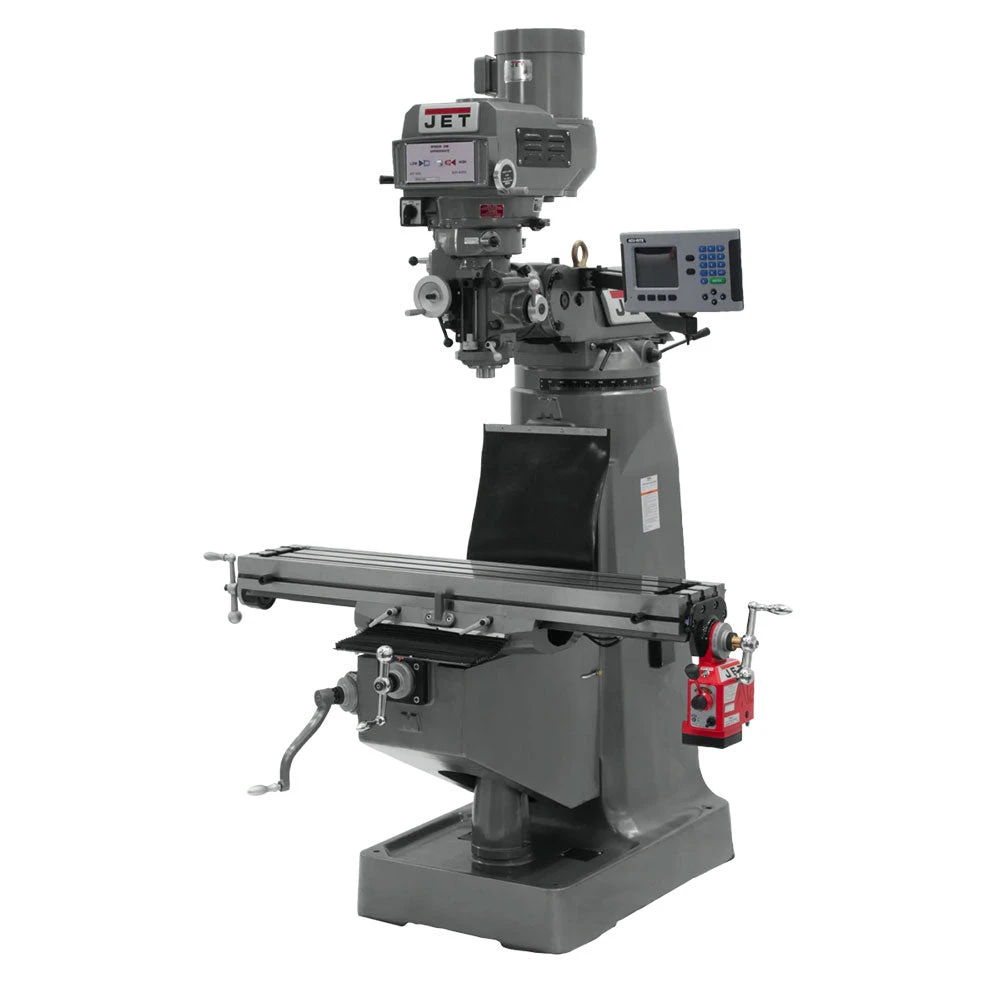

JET 690408 JTM-4VS Milling Machine with 3-Axis ACU-RITE 203 DRO & X-Axis Powerfeed, 230/460V

Original price was: $451.00.Current price is: $89.99.

The JET 690408 JTM-4VS Milling Machine is engineered for precision and efficiency, making it ideal for professional workshops and advanced DIY projects.
Equipped with a 3-Axis ACU-RITE 203 Digital Readout (DRO), this milling machine ensures accurate measurements and superior control during operations.
Features an X-Axis Powerfeed for smooth and consistent feed rates, reducing operator fatigue and improving machining results.
Runs on 230/460V power, offering flexibility for various workshop setups and ensuring compatibility with standard industrial power systems.
Backed by the trusted JET brand, this milling machine is built to last, providing reliable performance and durability for all your machining needs.

SKU: milling-machines-5214383440008 Categories: Milling Machines, More Tools, Tools & Equipment Tags: 460v, Corded, LTL, New, Power

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

Certified Meehanite Castings
Precision bored and honed milling head
Large diameter quill is chromed
High precision Class 7 spindle bearings
Chrome-plated motor shaft with lower bearing support
The spindle head is internally cooled
Heavy-duty splined motor drive
One-piece quill pinion and shaft
Three-stage power down feed with automatic stop
Heavy-duty spindle brake
Locks on all movable surfaces
Precision hardened and ground ways and table
Adjustable gibs throughout
Internal coolant tank built into casting base for use with a coolant system (coolant pump not included)
Tolerance test sheet included
One-shot lubrication system
Way covers
Drawbar
Toolbox with tools

What’s in The Box

Mill With 3-Axis ACU-RITE 203 DRO
Owner’s Manual

Warranty

2 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	690408
Brand	Jet
Volts	230/460
Horsepower	3
Phase	3
Style	Variable Speed R8
Digital Readout	ACU-RITE 203
Number of Axis	3
Spindle Taper (in x TPI)	R-8
Table Size (L x W)	9 x 49 in
Quill Diameter	3-3/8 in
Number of Spindle Speed (RPM)	Variable
Range of Spindle Speed (RPM)	60 – 4,200
Quill Down Feed Rates (IPR)	.0015 – .003 – .006
Spindle Travel	5 in
Head Movement	90 R & L, 45 F & B degree
Max Distance Spindle to Table	17-1/2 in
Distance Spindle to Column (Max)	19 in
Distance Spindle to Column	4-1/2 in
Collet Capacity	1/8 – 7/8
Table Longitudinal Travel	34 in
Table Longitudinal Travel w/ Powerfeed	28-3/4 in
Table Cross Travel	12 in
T-Slots Number and Size	3 and 5/8 in
T-Slot Centers	2-1/2 in
Work Table Weight Capacity	660 lbs
Travel of Knee	14-1/2 in
Travel of Ram	13-3/8 in
Dimensions	66 x 63 x 85 in
Weight	2420
