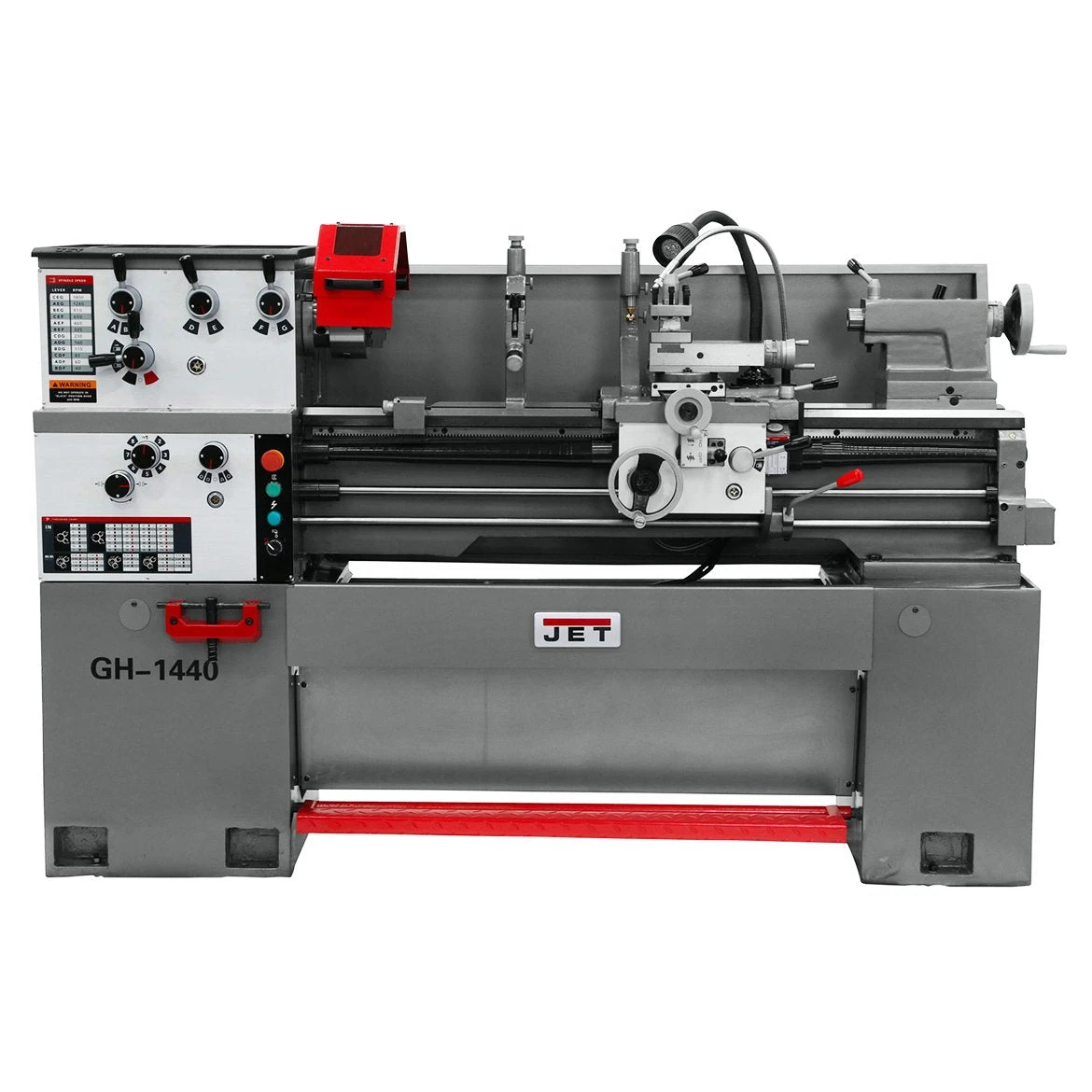

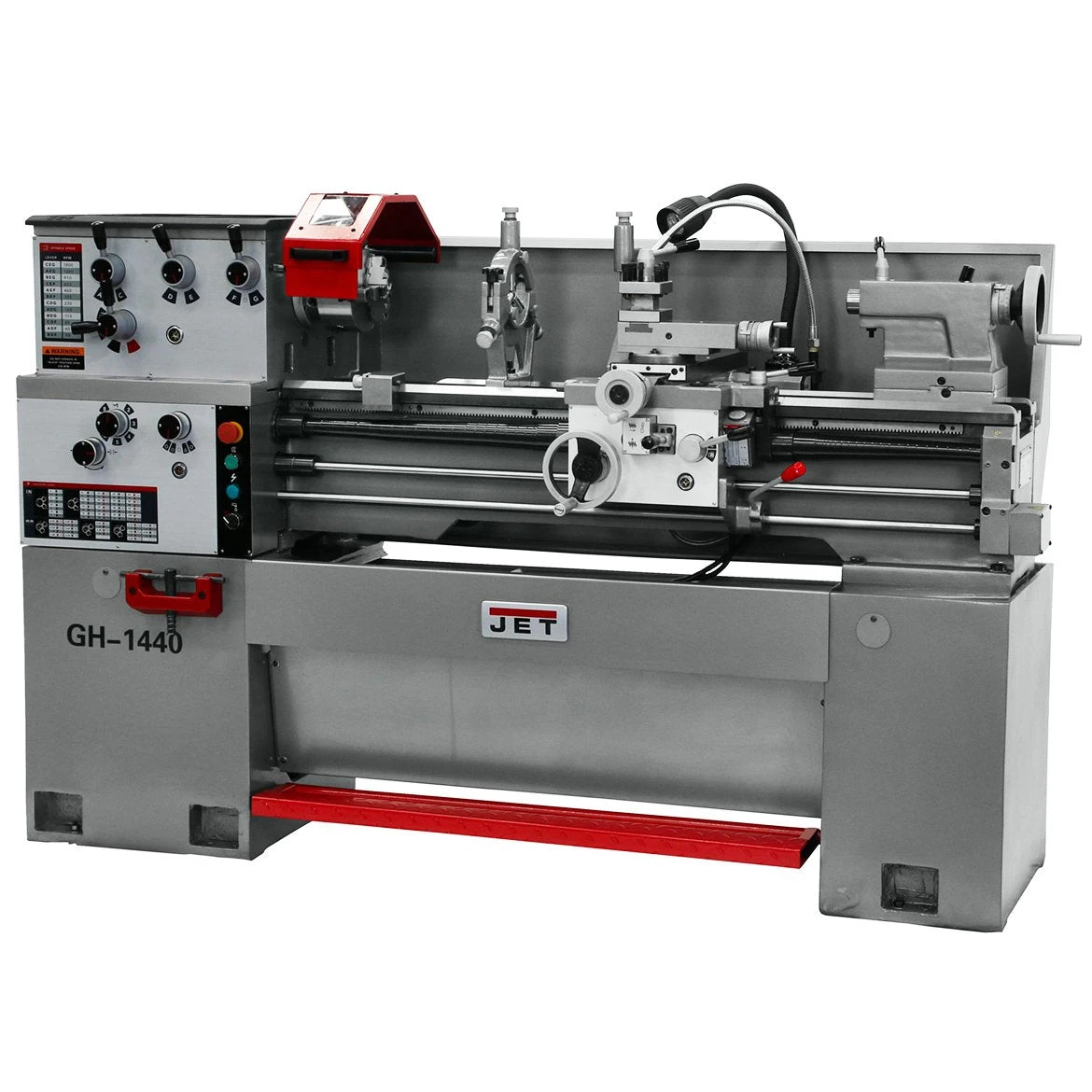

Jet 323403 14-Inch X 40-Inch 3-Phase Geared Head Bench Lathe W/ 200S Dro Tools & Equipment

Jet 323403 14-Inch X 40-Inch 3-Phase Geared Head Bench Lathe with 200S DRO – Precision Tools & Equipment

Original price was: $479.00.Current price is: $92.99.

The Jet 323403 14-Inch X 40-Inch 3-Phase Geared Head Bench Lathe is designed for precision machining, offering a robust build and reliable performance for both professional and hobbyist use.
Equipped with a 200S Digital Read Out (DRO), this lathe ensures accurate measurements and enhances productivity by minimizing manual adjustments.
Featuring a 3-phase geared head, the Jet 323403 provides smooth operation and consistent power, making it ideal for a wide range of turning applications.
With a 14-inch swing and 40-inch distance between centers, this lathe accommodates large workpieces, offering versatility for various machining tasks.
Jet is a trusted brand in the tools and equipment industry, known for delivering high-quality, durable machinery backed by excellent customer support and warranty options.

SKU: lathes-2612710637686 Categories: Lathes, Power Tools, Tools & Equipment Tags: 240v, LTL, Metalworking, New, Power

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

V-way bed design is induction hardened and ground
Splined, not keyed, shafts are utilized
D1-4 spindle is precision ground for accuracy and supported by high quality tapered roller bearings
Independent leadscrew and feed rod
Adjustable gibs are incorporated in the carriage and slideways
Safety on/off switch
Emergency Stop within easy reach of the Operator
Electronic Chuck Key Docking Station
Chuck Guard
Foot Brake
Gearbox provides larger threading and feed capabilities with no gear changes
Spindle actuation control is apron mounted
Gap bed section provided for larger diameter work
Inch-metric dials are standard
Compound and cross slide have backlash elimination
Tailstock may be offset for turning tapers and includes an inch-metric graduated quill
Front removable chip tray
Spindle jog button for easy gear engagement and spindle inching
Coolant system
Full length splash guard

What’s in The Box

14-Inch x 40-Inch Geared Head Lathe
Acu-Rite 200S Digital Readout
Owner’s Manual

Warranty

2-Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

Sku	323403
Model	GH-1440-3
Brand	Jet
Voltage	230v
Horsepower	3 Hp
Phase	3-Phase
Swing Over Bed	14 in.
Swing Over Cross Slide	8-1/5 in.
Swing Through Gap	20 in.
Length of Gap	9-3/8 in.
Distance Between Centers	40 in.
Spindle Bore	1-1/2 in.
Spindle Mount	D1-4
Spindle Taper w/ Sleeve	MT-5
Number of Spindle Speeds	12
Range of Spindle Speeds	40 Rpm – 1,800 Rpm
Number of Longitudinal and Cross Feed Rates	40
Range of Longitudinal Feeds	0.012 Ipr – 0.0294 Ipr
Range of Cross Feeds	0.0004 Ipr – 0.0103 Ipr
Number of Inch Threads	40
Range of Inch Threads	4 Tpi – 112 Tpi
Number of Metric Threads	23
Range of Metric threads	0.45 – 7.5
Max Tool Size	5/8 in. x 5/8 in.
Compound Slide Travel	3-1/2 in.
Cross slide Travel	6-3/8 in.
Carriage Travel	37-1/2 in.
Tailstock Spindle Travel	4-3/4 in.
Taper in Tailstock Spindle	MT-3
Follow Rest Capacity	2-5/8 in.
Steady Rest Capacity	3-1/2 in.
Width of Bed	10-1/5 in.
Length	74-4/5 in.
Width	28 in.
Height	46 in.
Product Weight	2,336 lbs.
