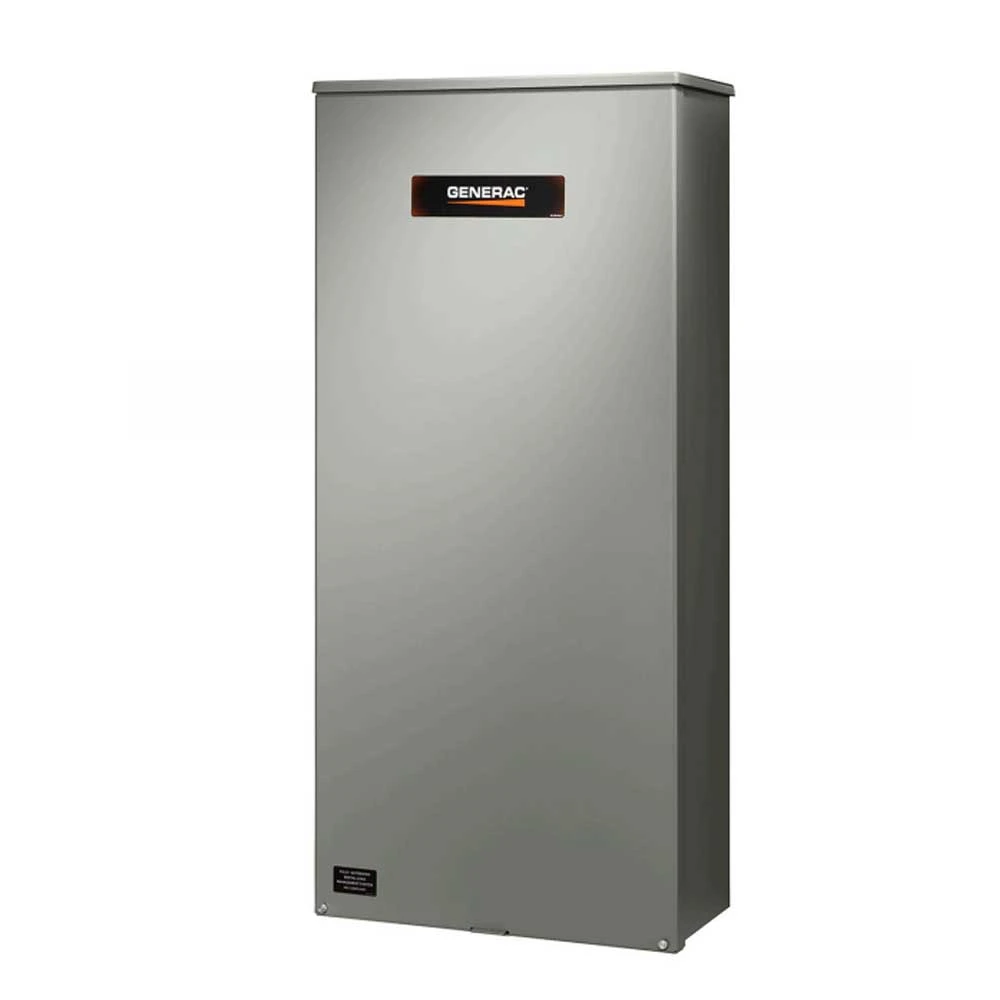

Generac RXGW20SHA3 120/240V Automatic Smart Transfer Switch 20-40 Circuit Load

Original price was: $418.00.Current price is: $89.99.

The Generac RXGW20SHA3 is an automatic smart transfer switch designed to manage power between your generator and utility power seamlessly.
Compatible with 120/240V systems, this transfer switch supports 20-40 circuit loads, ensuring reliable power distribution during outages.
Built with advanced smart technology, it automatically switches to generator power during a utility outage and back to utility power when restored.
Easy to install and user-friendly, the RXGW20SHA3 is an essential component for homes and businesses requiring backup power solutions.
Generac is a trusted brand in power solutions, known for its durability, efficiency, and innovative technology for over 60 years.

SKU: transfer-switches-4750225473672 Categories: Generators, Transfer Switches Tags: 120v, 240v, Corded, Dropship, New

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

Generac 200-Amp Auto Smart Transfer Switch w/ Power Management
Compatible with Evolution or Nexus generator controllers
Improved Design
35 percent Smaller footprint and greater branch circuit capacity
Integrated 20-Circuit Load Center (Breakers Not Included)
40-Circuit capacity with the use of tandem breakers
For use with Siemens, Murray, Square D and Eaton 1″ breakers
Accepts GFCI, AFCI and tandem breakers
Digital Power Management Technology (DPM)
Allows your generator to work smarter, not harder
Be Smart Get More Out Of Your Generator
Cycles power on and off as needed for different appliances
Manage Up To (4) Individual HVAC Loads – No Hardware Req.
Great for homes with multiple Air conditioners (24 VAC controlled)
Up To (8) Smart Management Modules (SMM) (Sold Separately)
Frequency (Hz) monitoring design, no control wire required
Versatile design, easily prioritize loads and lock-out non-essential loads
Service Entrance Rated (Load Side and Line Side Disc. Breakers)
Installs between the main meter and service panel
NEMA 3R Indoor/Outdoor Rated
Aluminum, wall mountable weather-proof enclosure
Electrostatically applied and baked powder coating paint (Gray)
Tech Spec Summary: Only For Use w/ Generac Generators
Load Transition Type: Open Transition
Withstand Rating: 22,000 Amps Lug Range: 2/0 – #14

What’s in The Box

Automatic Smart Transfer Switch 20-40 Circuit Load
Owner’s Manual

Warranty

5 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	RXGW20SHA3
Brand	Generac
Volts	120/240V
Phase	Single
Watts	48000
Amps	200
Max Circuits	20
Enclosure	NEMA 3R
Transfer Switch Style	Service Disconnect
ATS Poles	2 poles
Length	38.5 inch
Width	17 in
Height	8 in
Weight	45 lbs
