Features
- Delivers best-in class power quality with less than 5 percent total harmonic distortion (THD) for clean, smooth operation of sensitive electronics and appliances.
- Cutting-edge, intuitive control, the evolution controller features a multilingual, 2-line LCD text display with color-coded, backlit buttons, it has received upgrades, including USB flash capability, smart battery charging, voltage adjustment and backlit membrane pad style buttons.
- Backup generators run a weekly test to ensure the system is running properly, thanks to quiet-test, your protector series home generator runs its self-test at a lower, quieter Rpm which can be programmed to run weekly, bi-weekly or monthly.
- Improved stub ups and electrical connection access decrease installation costs, all connections are dual conductor rated and the implementation of quick connects for the control wires, completely eliminates the need for crimping or lugging.
- Delivers best-in class power quality with less than 5% total harmonic distortion (THD) for clean, smooth operation of sensitive electronics and appliances
- Cutting-edge, intuitive control, the evolution controller features a multilingual, 2-line LCD text display with color-coded, backlit buttons, it has received upgrades, including USB flash capability, smart battery charging, voltage adjustment and backlit membrane pad style buttons
- Backup generators run a weekly test to ensure the system is running properly, thanks to quiet-test, your protector series home generator runs its self-test at a lower, quieter RPM which can be programmed to run weekly, bi-weekly or monthly
What’s in The Box

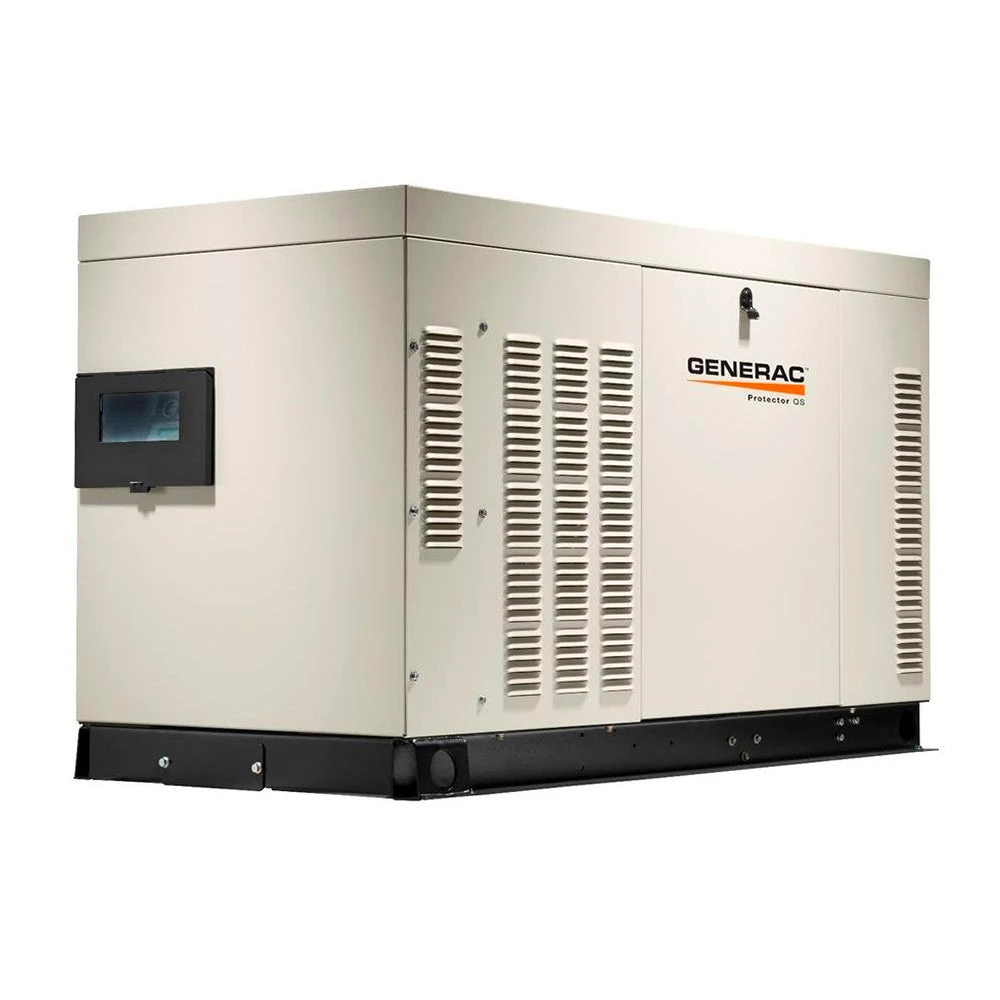

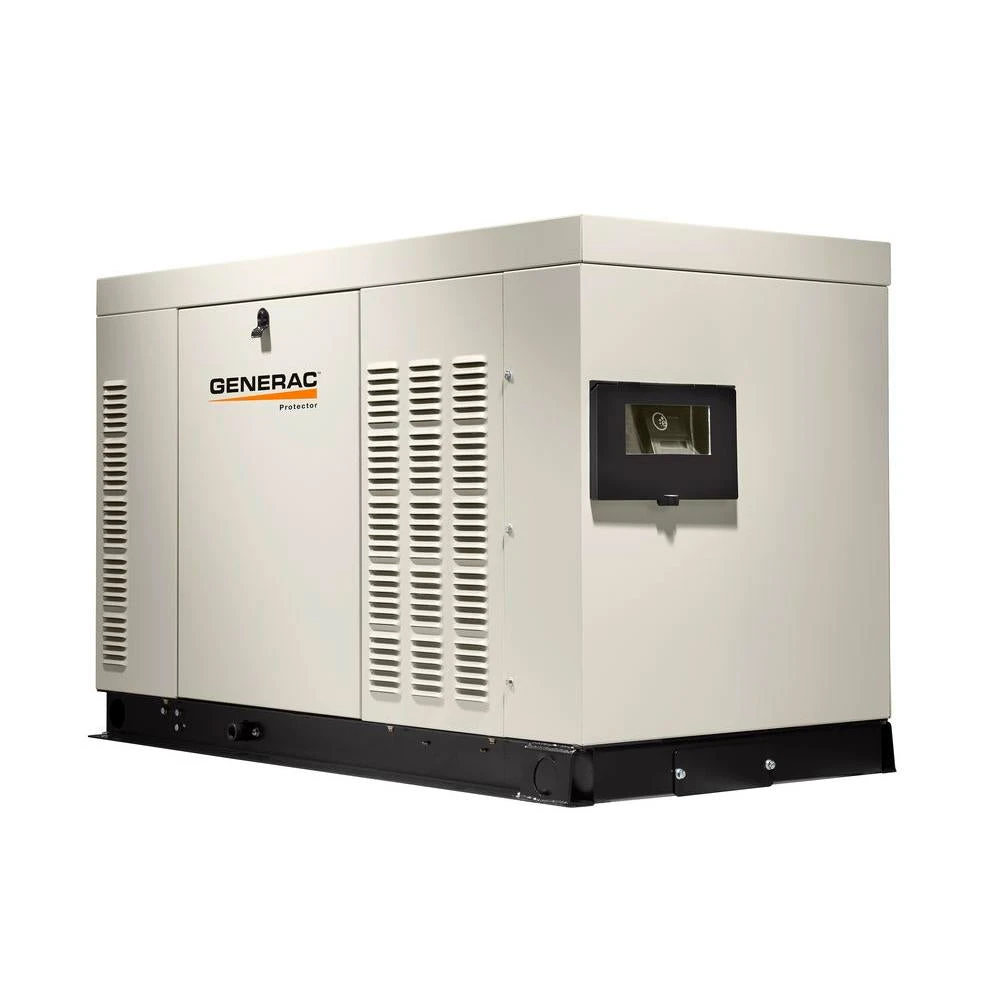

- Generac 22,000-Watt 2.4cc Liquid Cooled Protector Standby Generator – RG02224ANAX
- Owners Manual
Warranty
- 5-Year Limited Factory Warranty
- 30 Day Satisfaction Guaranteed

Specifications
| Sku | RG02224ANAX |
| Brand | Generac |
| Voltage | 120/240V |
| Series | Protector QS |
| Engine Make | Generac |
| Cooling System | Liquid |
| Enclosure Type | Aluminum |
| Engine Displacement | 2,400cc |
| Engine Speed (Rpm) | 1,800 Rpm |
| Fuel Consumption at 100 percent Load (LP Vapor) | 3.4 gal/hr. |
| Fuel Consumption at 100 percent Load (Natural Gas) | 316 cubic ft/hr. |
| Fuel Consumption at 50 percent Load (LP Vapor) | 2.1 gal/hr. |
| Fuel Consumption at 50 percent Load (Natural Gas) | 190 cubic ft/hr. |
| Fuel Type | LP / Natural Gas |
| Motor Phase | Single Phase |
| Rated Watts (LP Vapor) | 22,000 Watts |
| Rated Watts (Natural Gas) | 22,000 Watts |
| SCAQMD Compliant | Yes |
| Product Dimensions (In.) | 62.9 x 29 x 29.7 In. |
| Shipping Weight (lbs) | 905 lbs |
