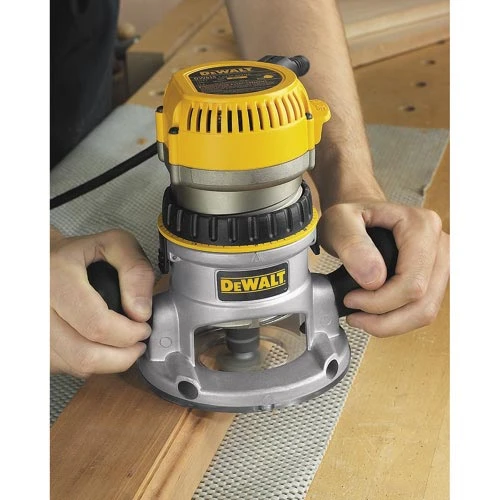

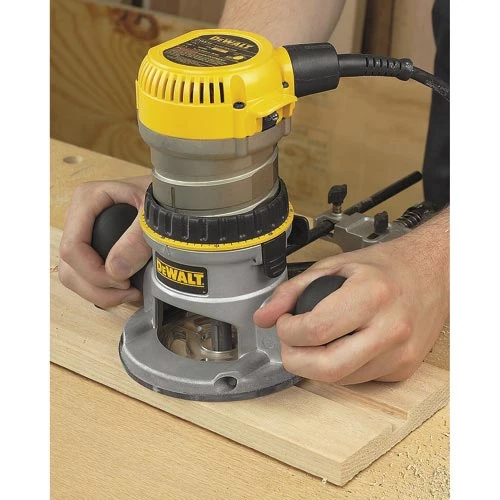

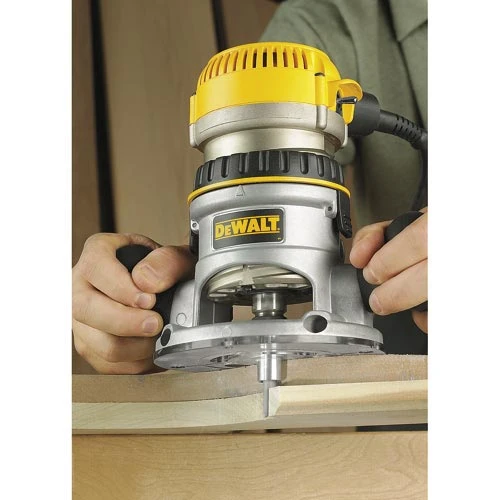

DeWALT DW616PK 1-3/4 HP Fixed Base Plunge Router Woodworking Tool Kit | Powerful & Precision Woodworking Tool

Features

• 1-3/4 HP (maximum motor HP), 11 amp motor provides the power to rout smoothly through the toughest hardwoods.
• Micro-fine depth adjustment ring provides precise depth adjustments in 1/64 increments and adjusts vertically for a constant switch/cordset location.
• Adjustable, tool-free steel motor cam lock makes depth adjustment and base changes quick and solid-locking.
• Quick release motor latches for fast and easy motor pack removal for bit and base changes.
• Integral, through-the-column dust collection collects 95% of the dust and provides superior bit visibility.
• Detachable cordset offers cordset serviceability and removes the need for a shorty cord motor pack.
• Sub-base concentricity gauge included to ensure bit concentricity for best-in-class accuracy.
• Precision machined brass bushings and case-hardened steel guide rods provide a smooth and accurate plunge stroke.
• Clear, LEXAN sub-base provides enhanced base durability, bit visibility, and accepts standard template guide bushings.
• Rubber overmolded handles and low center of gravity designprovide best-in-class comfort, balance, and control.
• Dust-sealed switch provides durability and long switch life.
• Heavy duty, precision machined, die-cast aluminum base and motor housing for durability and low tool weight.
• Nickel plated motor housing for a smooth, long-lasting depth adjustment.
• Right or left switch and cordset location provices the ability to have the switch in your right or left hand.
• Flat top for easy bit and depth changes.
• Self-releasing, long, eight slotted collets for better bit retention and eliminates frozen bits.
• Five position adjustable turret stop assists in stepped or repeated plunge cuts.
• Micro-fine depth adjustment on plunge base 5/128 per turn for precise routing in veneer and inlays.
• Easy to reach plunge lever and switch for superior control while routing.

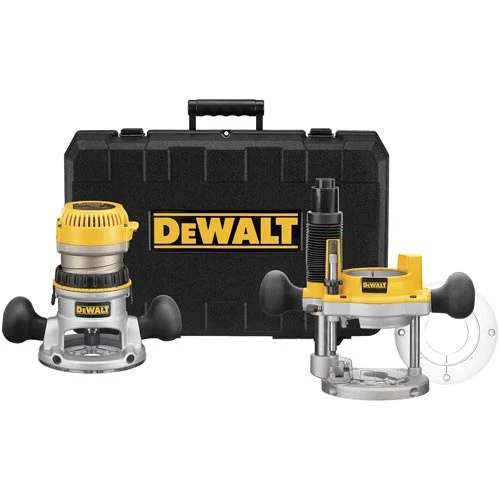

What’s in The Box

• 1-3/4-Hp Electric Motor
• Fixed Base – DW6184
• Plunge Base – DW618
• 1/4-Inch and 1/2-Inch Collets
• (2) Wrenches
• Sub-Base Concentricity Gauge
• Vacuum Adapter
• Kit Box
• Owner’s Manual

Warranty

• 3-Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

Sku	DW616PK
Brand	DeWALT
Collet Diameter	1/4 in. and 1/2 in.
Base Dimension	6 in.
Horsepower	1-3/4 in.
Amperage	11A
Plunge Stroke	2-1/2 in.
Depth Stop	Micro-Fine Depth Adjustment Ring
No Load Speed	24,500 Rpm
Spindle Lock	No
Product Weight	10 lbs.
