Bosch GCL100-40G 165′ Green Beam Self Leveling Cross Line Laser W/ Plumb Points Tools & Equipment

Features

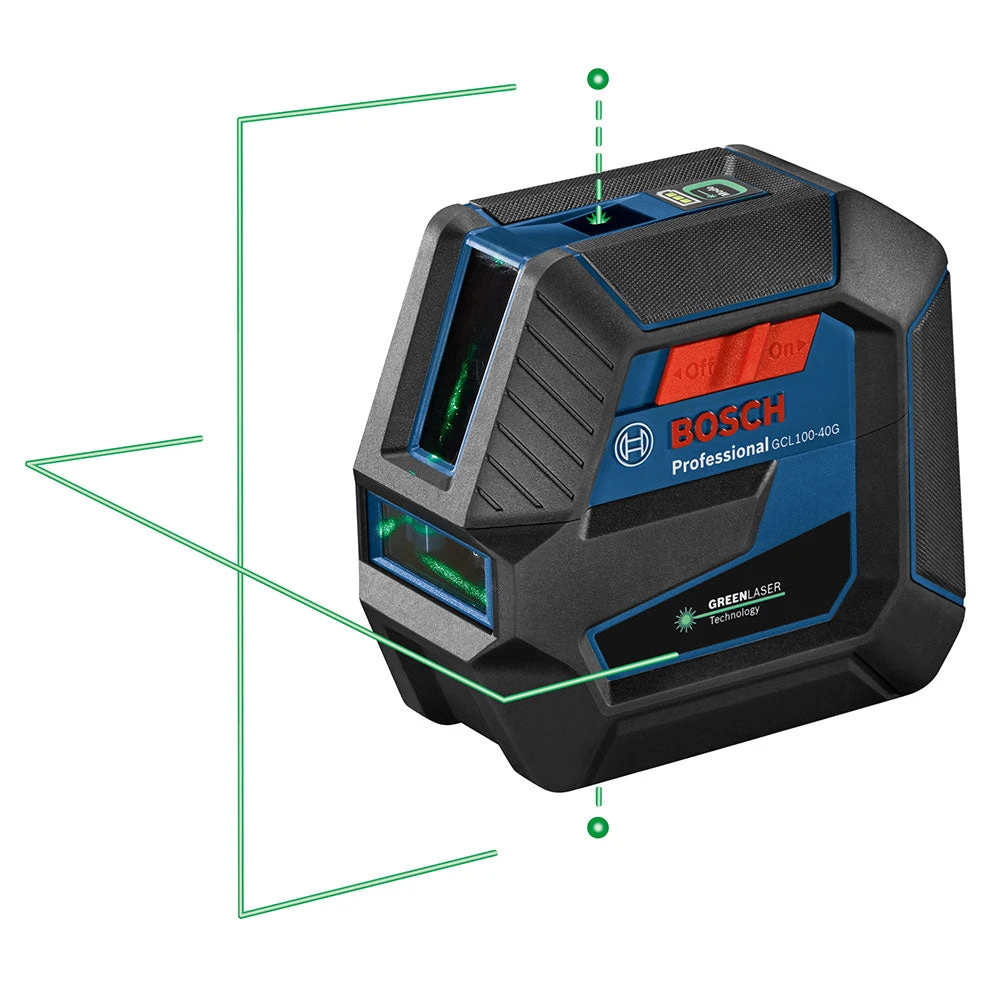

• Easy-to-use line laser – facilitates quick job set up with a range up to 165 Ft. with vertical, horizontal, and cross-line modes
• Plumb points – projects upward and downward green laser points for transferring applications with a range of up to 50 Ft.
• Built-in VisiMax technology – monitors power consumption to maximize line visibility and extend battery life
• Bright green-beam laser — up to 4X brighter than standard red beams
• Full rubber over mold housing – helps protect every major impact point, with a design similar to a roll cage

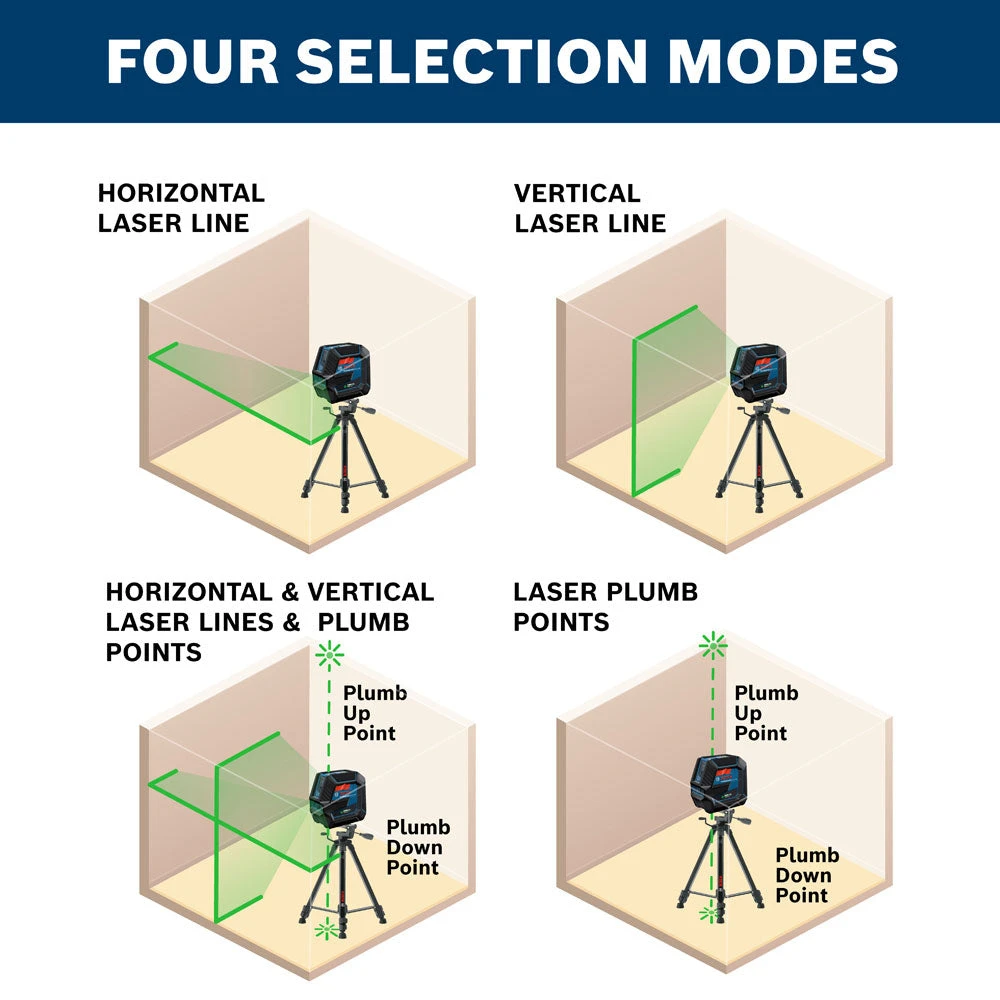

• Easy-to-use laser setup modes – controls vertical, horizontal, cross lines, and plumb points
• Versatile job layout – lines can be projected separately or together for a variety of level and alignment applications
• Pulse receiver mode – use an optional laser receiver for applications with a 165 Ft. working range
• Smart Pendulum System – allows the tool to self-level, and it indicates out-of-level condition
• Secure laser transport – after switching off, the pendulum is locked
• Onboard user interface – easily select among the layout modes

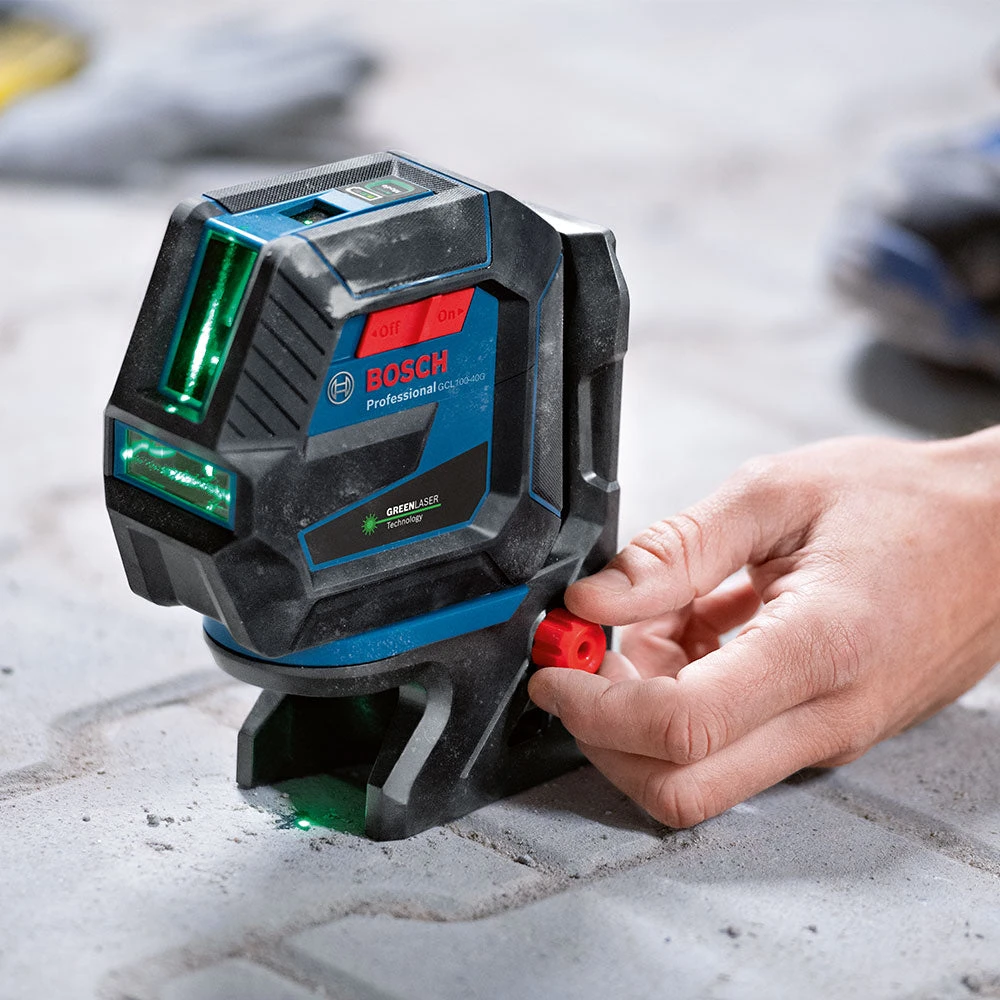

• RM10 Rotating Mount – provides fast setup, extra-strong magnets, and fine adjustment rotation nob
• Jobsite tough construction – withstands rainy or dusty job site conditions, and is IP64 rated
• Battery gauge – features a three-LED indicator for battery management

What’s in The Box

• GCL100-40G Green-Beam Self-Leveling Cross-Line Laser with Plumb Points
• RM10 Rotating Mount
• (4) AA Batteries
• Hard Carry Case
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	GCL100-40G
Brand	Bosch
Volts	1.5V

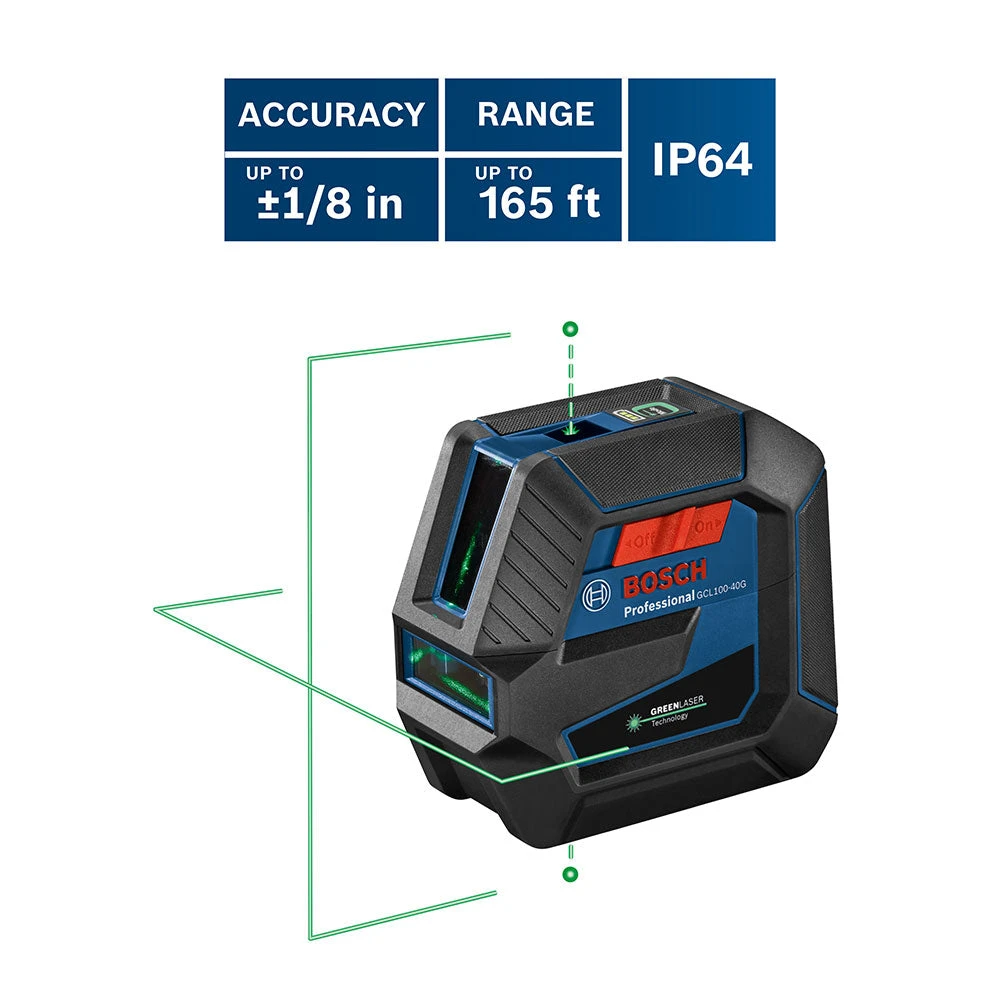

Accuracy	+/-1/8 in at 30 ft
Laser Diode	<10 mW at 500 nm -540 nm, Class 2
Leveling Type	Self-Leveling, up to 4 degrees
Mount Threading	1/4-20
Operating Temperature	14 F / -10 C ~1 22 F / 50 C degrees
Range	up to 165-ft
Length	4.5 in
Width	2.5 in
Height	5 in
Weight	1.28 lbs
