Baileigh IP-2509-HD 25″ Numerically Controlled Planer – 220V 10HP – Professional Power Tool

Features

• 10 hp motor has enough muscle to smooth full 25” boards.
• Spiral cutter head (included) spins at 5,000 rpm.
• Rows of rotatable carbide blades make the spiral cutter head last much longer and work more quietly than a straight-knife cutter.
• Runs on 220-volt single-phase power, so you can use this sophisticated machine in almost any shop.
• Can smooth off up to .25” of material at one time.
• Variable speed from 20 to 30 feet per minute, so you can finetune to get the exact speed you need for your material and finish.
• 25” x 32” main cast iron table expands to an even larger 25” x 57”, supporting your material and helping you create straight, smooth boards.
• Programmable controller makes it simple to set the height. Just enter what you want, and the bed automatically moves to that setting.
• Controller includes automatic backlash compensation to produce exact, repeatable thicknesses.

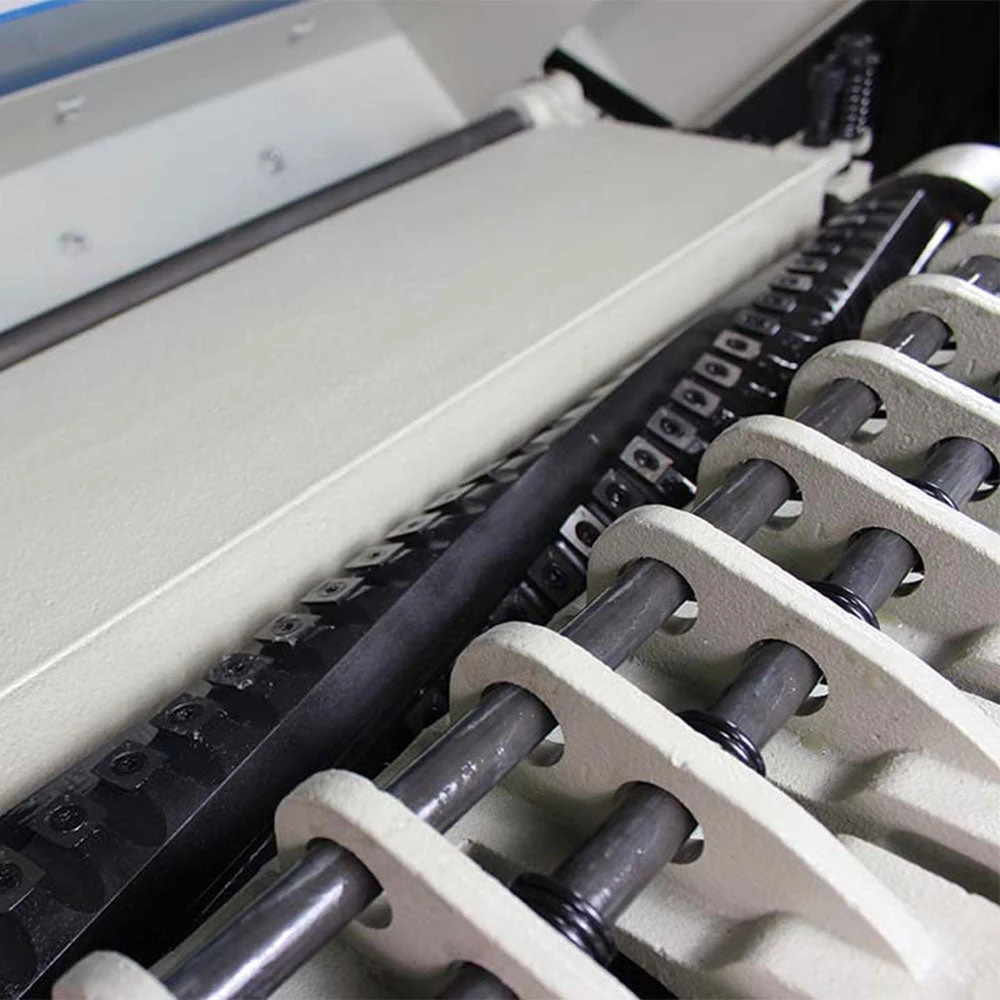

• Segmented steel infeed roll allows you to smooth multiple boards with different heights at once, increasing your productivity.
• Durable dual steel outfeed roll moves boards along to the cutting head.
• You can set the quick-adjust bed rolls high to reduce friction on rough-sawn stock, or adjust them lower for straighter, smoother results.
• Segmented chip breaker prevents large chips or strips of wood from clogging up the machine or your dust collector.
• Solid iron pressure bar applies even force across the boards to avoid chipping.
• Anti-kickback fingers grip the material so it’s less like to shoot back out if there’s a problem at the cutter head.
• Oversized bearing housings ensure quiet performance and long life.
• Covered by a 1-year parts warranty.

What’s in The Box

• IP-2509-HD – Numerically Controlled Planer
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	IP-2509-HD
Power	220V Single Phase
Horse Power	10
Table Size (Length)	57″
Table Size (Width)	25″
RPM	5000
Maximum Depth of Cut (Resaw)	1/4″
Cutter Head Diameter	3-3/8″
Max Stock Width	25′
Number of Knives	5 Row Spiral
Maximum Stock Height	9″
Minimum Stock Thickness	1/2″
Minimum Stock Length	9′
Feed Speed	20 to 30 FPM
Table Elevation	Digitally Controlled
Shipping Weight	2070lbs
Shipping Dimensions (Inches)	60x44x67
Weight (lbs)	1760
