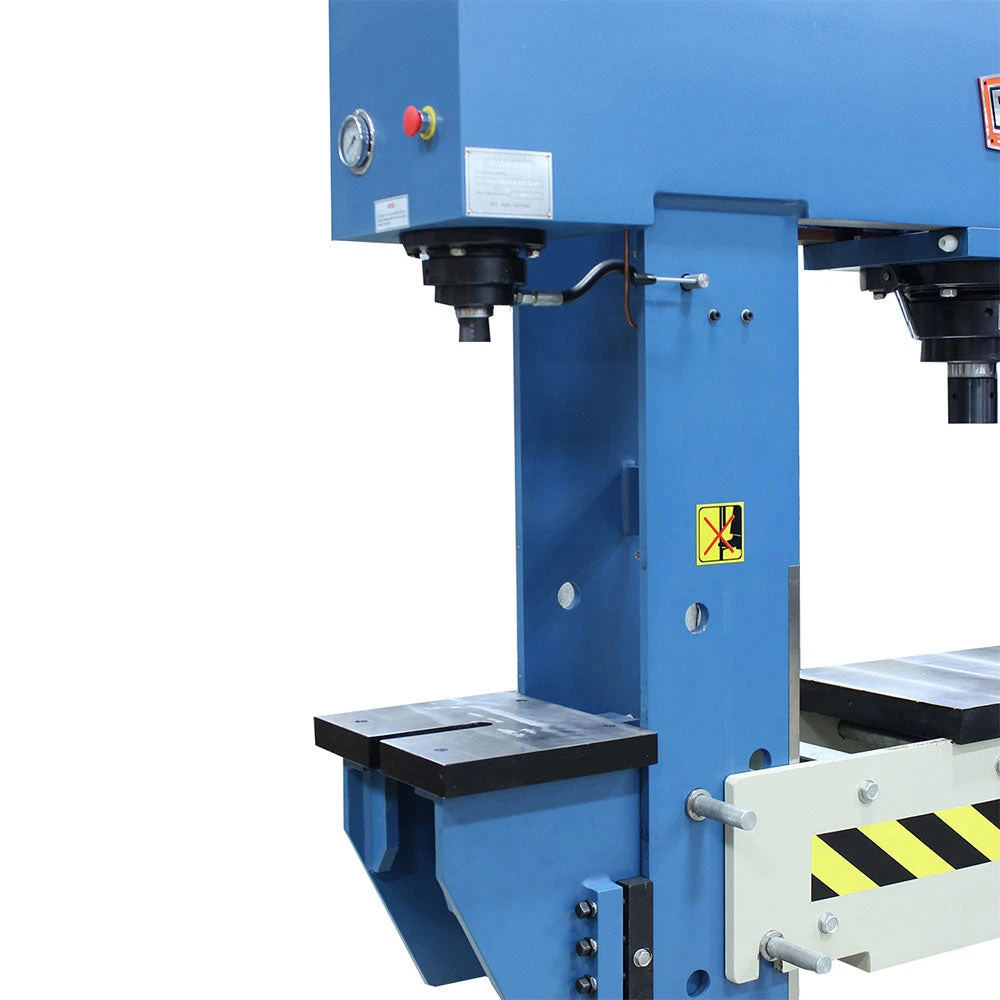

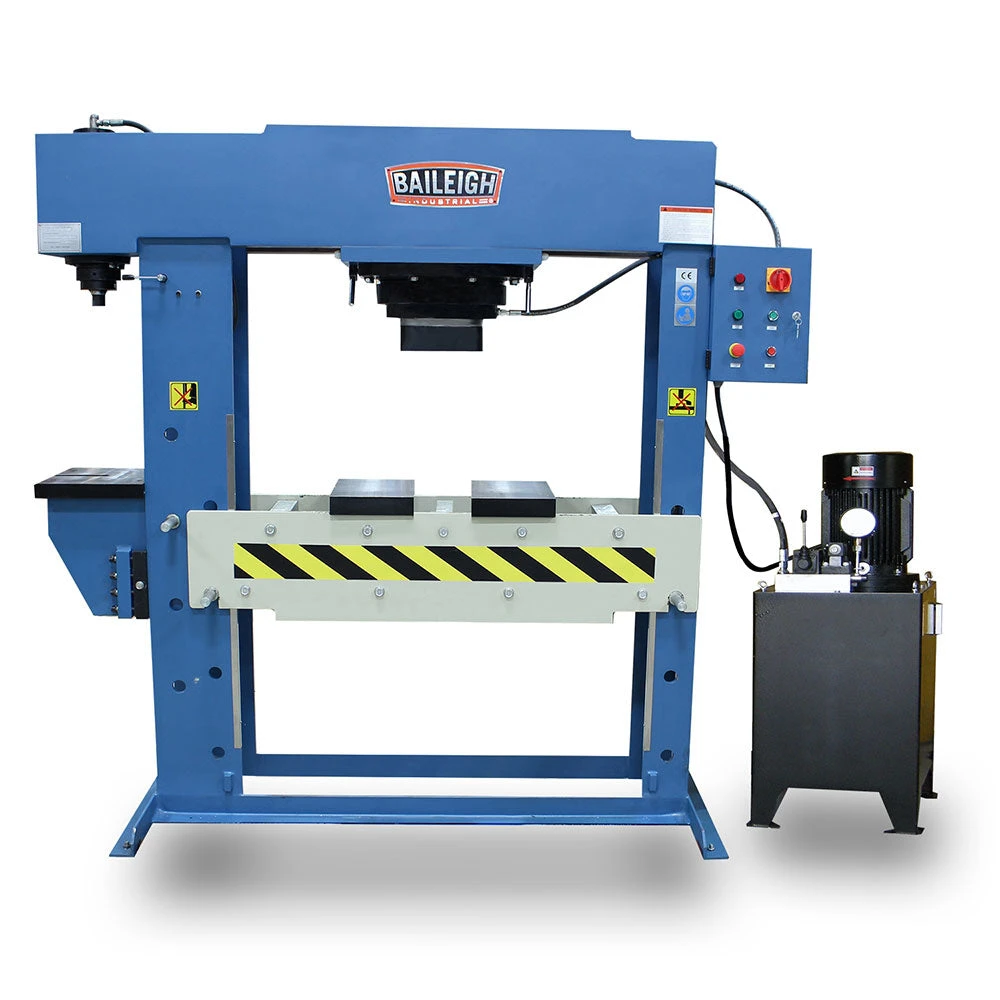

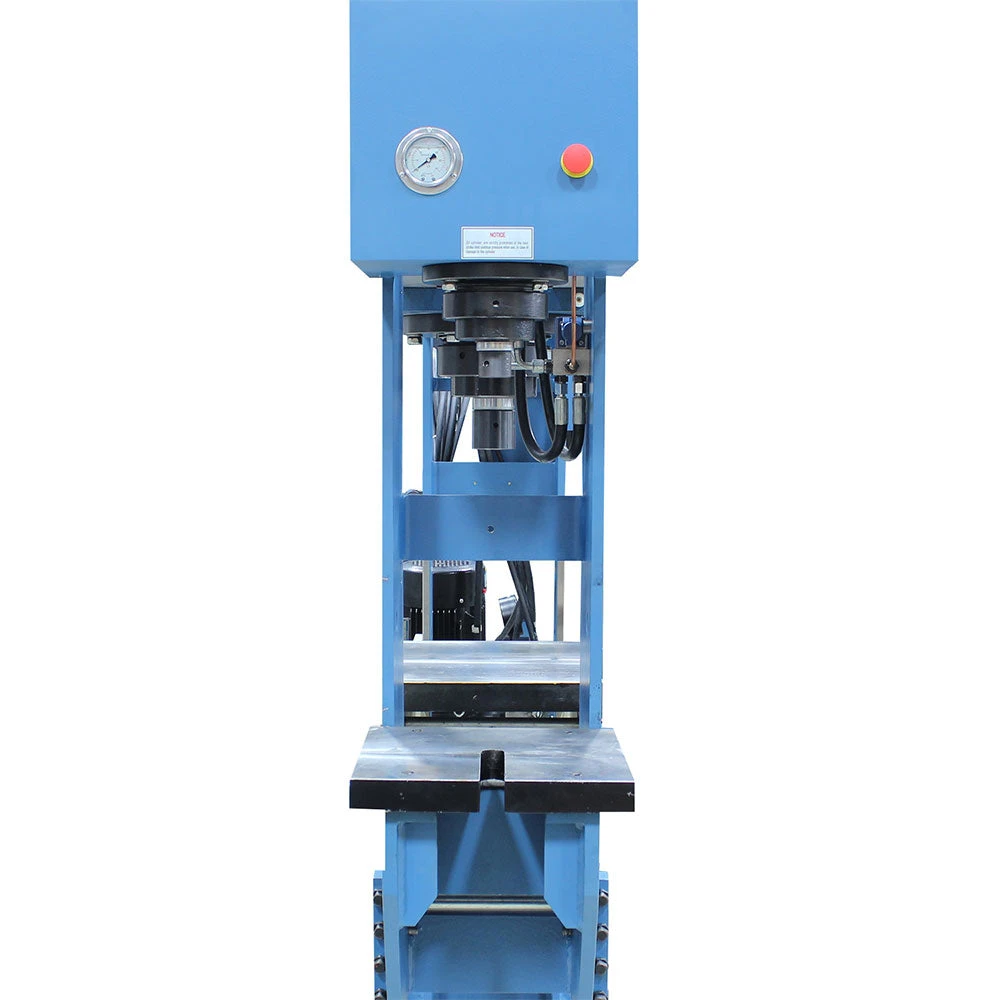

Tools & Equipment Baileigh 1019291 HSP-200M-C 200/20 Ton Two Station Hydraulic H-Frame Press

Baileigh HSP-200M-C 200/20 Ton Two Station Hydraulic H-Frame Press | Heavy-Duty Metalworking Tool

Original price was: $420.00.Current price is: $88.99.

The Baileigh HSP-200M-C 200/20 Ton Two Station Hydraulic H-Frame Press is a robust and reliable tool designed for heavy-duty metalworking tasks. Perfect for bending, shaping, and pressing applications.
Featuring two independent stations, this hydraulic press offers versatility and efficiency, allowing you to handle multiple tasks simultaneously. Its 200-ton capacity ensures it can tackle even the most demanding jobs.
Constructed with high-quality materials, the Baileigh HSP-200M-C is built to last. Its H-frame design provides stability and strength, ensuring precise and consistent results every time.
This hydraulic press is easy to operate and maintain, making it a valuable addition to any professional workshop or industrial setting. It includes safety features to protect users during operation.
Enjoy fast and reliable shipping with secure payment options. The Baileigh HSP-200M-C comes with a manufacturer’s warranty, ensuring peace of mind and long-term satisfaction with your purchase.

SKU: specialty-metalworking-tools-6854770098312 Categories: Specialty Metalworking Tools, Specialty Power Tools, Specialty Tools, Tools & Equipment Tags: 220v, Corded, Dropship, LTL, Tools & Equipment

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

Unique two station design.
200-ton capacity on main press.
20-ton capacity on side press.
47” working width.
11”-diameter cylinder with 11.8” stroke.
10 hp motor runs on 220-volt 3-phase power.
Stand-alone hydraulic system with a piston-style pump.
Cylinder can move left and right within the frame, ideal for off-center projects.
Pressure gauge comes standard.
Includes a 2-piece V-block set.
Baileigh Industrial covers this hydraulic H-frame press with a 1-year parts warranty.

What’s in The Box

HSP-200M-C – Two Station Hydraulic Press
Owner’s Manual

Warranty

1 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	HSP-200M-C
Power	220 Volt Three Phase
Return Speed	.228″ / sec.
Motor	10 hp
Piston Head Diameter	6.125″ (Main), 1.77″ (Side)
Pump Speed	4 gal/min
Oil Capacity	32 gal.
Included Accesories	Included Accesories
Working Speed	.154″ / sec.
Working Width	47″ (Main)
Maximum Capacity	200 ton (Main), 20 ton (Side)
Cylinder Stroke	11.8″ (Main), 11.75″ (Side)
Cylinder Movable	Yes (Main Only)
Cylinder Diameter	11″ (Main), 3.95″ (Side)
Distance From Table To Ram	Min. 8.11″ – Max. 32.01″ (Main), Min. 9.84″ – Max. 38.97″ (Side)
Shipping Dimensions (Inches)	96x48x93 & 48x45x55
Shipping Weight	6910 lbs
