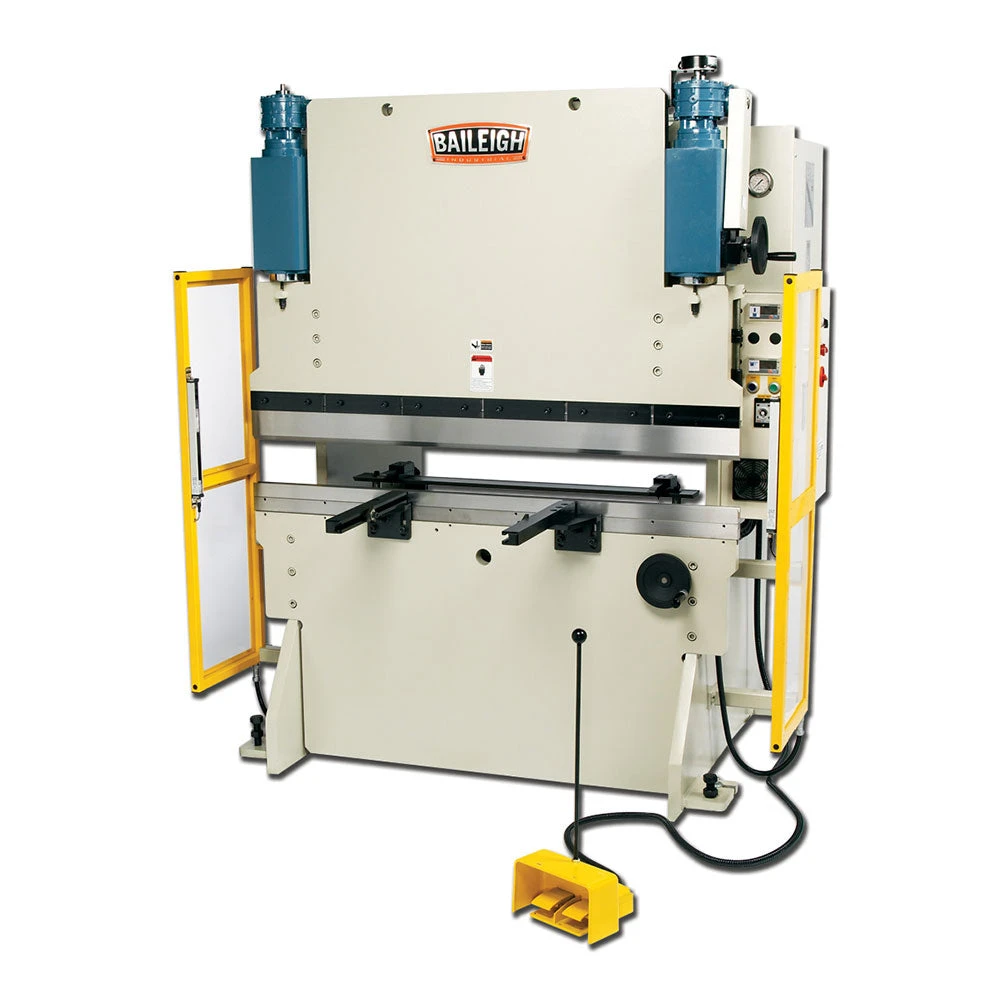

Baileigh BP-5060NC 50 Ton Hydraulic Sheet Metal Press Brake for Precision Metalworking

Features

• Delivers up to 50 tons of pressure.
• Maximum capacity of .118” thick sheet metal across the machine’s full width.
• 5 hp main motor requires 220-volt 3-phase power.
• Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.
• 2 encoder-controlled hydraulic cylinders move the top beam.
• Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.
• It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).
• You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend keeps its shape.
• 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.
• Foot pedal brings the stroke up and down, leaving your hands free to position the material.
• Motorized back gauge rides on a solid ball screw trolley mechanism.
• Back gauge encoder shows its position on its own DRO.
• Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine.
• Heavy electrowelded frame, made of solid plate steel, keeps this press brake accurate and running smoothly in production for many years.
• Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.
• Includes a set of hardened single-Vee American tooling.
• Accepts standard press brake tooling, giving you a wide variety of options.
• Comes with front material rests (or support arms), which some competing machines do not include.
• 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.
• 4 grease zerks let you add oil every few months.
• Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.

What’s in The Box

• BP-5060NC – Hydraulic Sheet Metal Press Brake
• Owner’s Manual

Warranty

• 1 Year Limited Factory Warranty
• 30 Day Satisfaction Guaranteed

Specifications

SKU	BP-5060NC
Power	220V / 3-phase
Main Motor	5 hp
Gauge Length	17201
Return Speed	2.36″ / sec.
Maximum Pressure	50 tons
Oil Capacity	28 gal
Included Accesories	Included Accesories
Throat Depth	7.87″
Bending Capacity Max Length Max Thickness	61″ / .118″
Stroke Distance	5.9″
Approach Speed	3.14″ / sec.
Back Gauge Motor	1/2 hp
Bending Speed	.275″ / sec.
Distance Between Housings	49.21″
Distance From Table To Ram	11.81″
Dimensions (Inches)	90x63x96
Weight	6160 lbs
