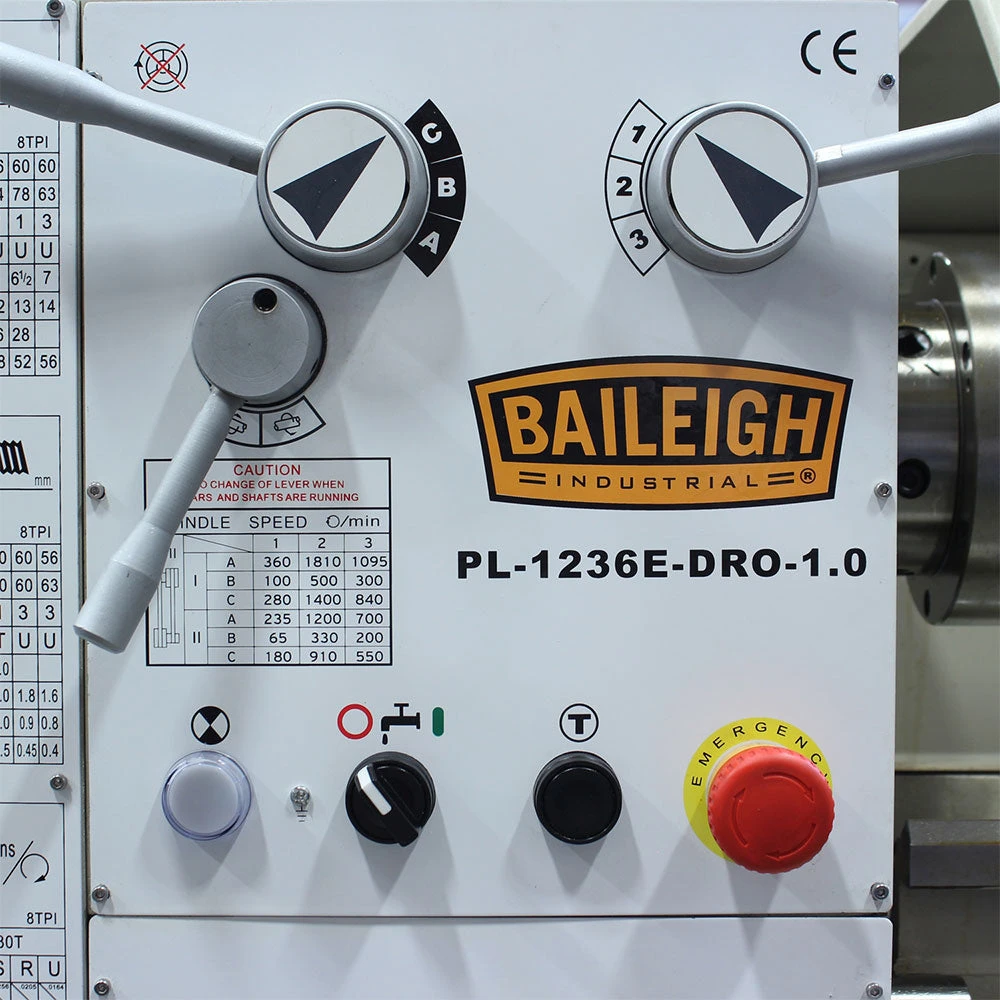

Baileigh 1016617 PL-1236E-DRO-1.0 220V 1PH Variable Speed Metal Lathe

Baileigh 1016617 PL-1236E-DRO-1.0 220V 1PH Variable Speed Metal Lathe – Precision Tool for Metalworking

Original price was: $498.00.Current price is: $98.99.

The Baileigh 1016617 PL-1236E-DRO-1.0 Metal Lathe is engineered for precision and durability. With a 220V 1PH motor and variable speed control, it offers versatility for a wide range of metalworking projects.
This metal lathe comes equipped with a digital readout (DRO) for enhanced accuracy, making it ideal for complex tasks that require high precision. The robust construction ensures long-lasting performance.
Designed for both professional and hobbyist use, the Baileigh PL-1236E-DRO-1.0 is user-friendly and easy to operate. Its compact design makes it suitable for various workshop settings.
Enjoy seamless operation with the variable speed feature, allowing you to adjust the lathe speed according to the material and task at hand. This feature enhances both efficiency and finish quality.
Baileigh offers reliable customer support and a comprehensive warranty on this product. We provide flexible payment options and efficient logistics to ensure a smooth purchasing experience.

SKU: lathes-6854771769480 Categories: Lathes, Power Tools, Tools & Equipment Tags: 220v, Corded, Dropship, New, Tools & Equipment

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

Recommended for small fabricators, schools, or garages.
70 to 1,400 rpmvariable speed.

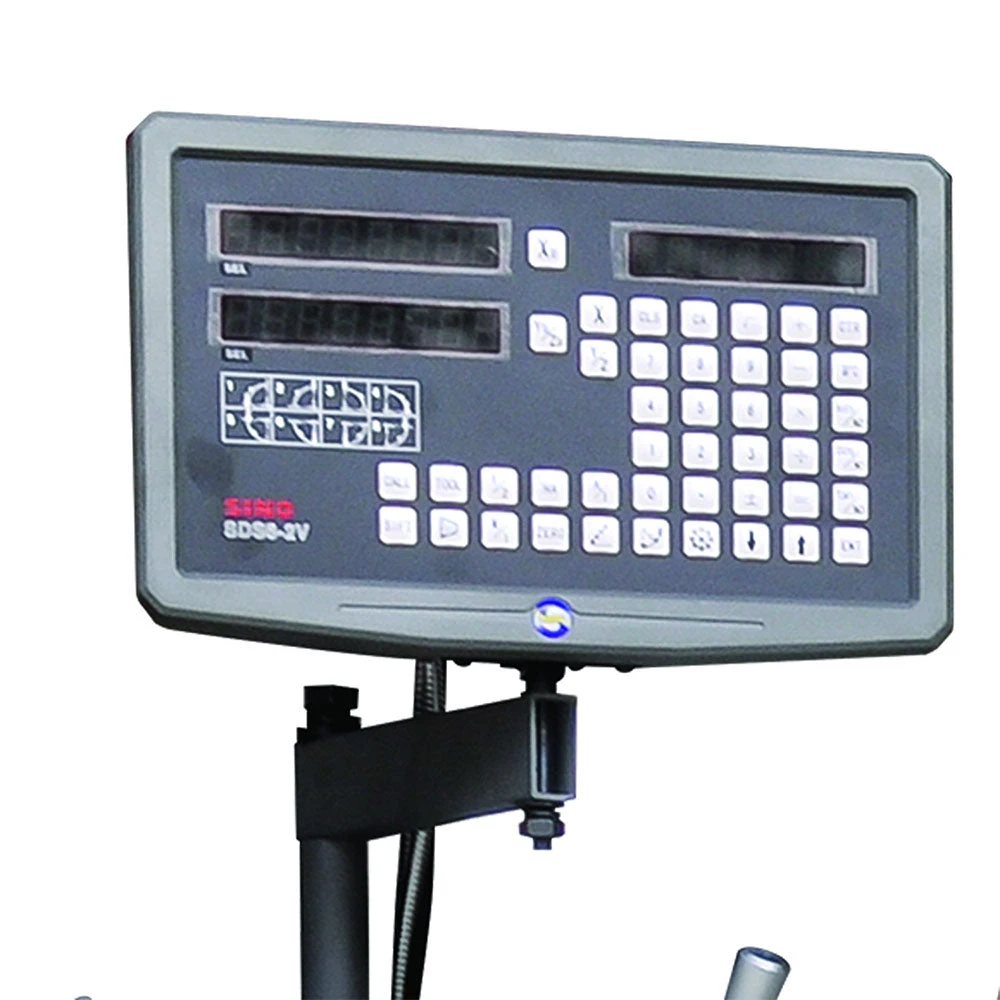

Integrated digital readout (DRO) helps you get repeatable results.

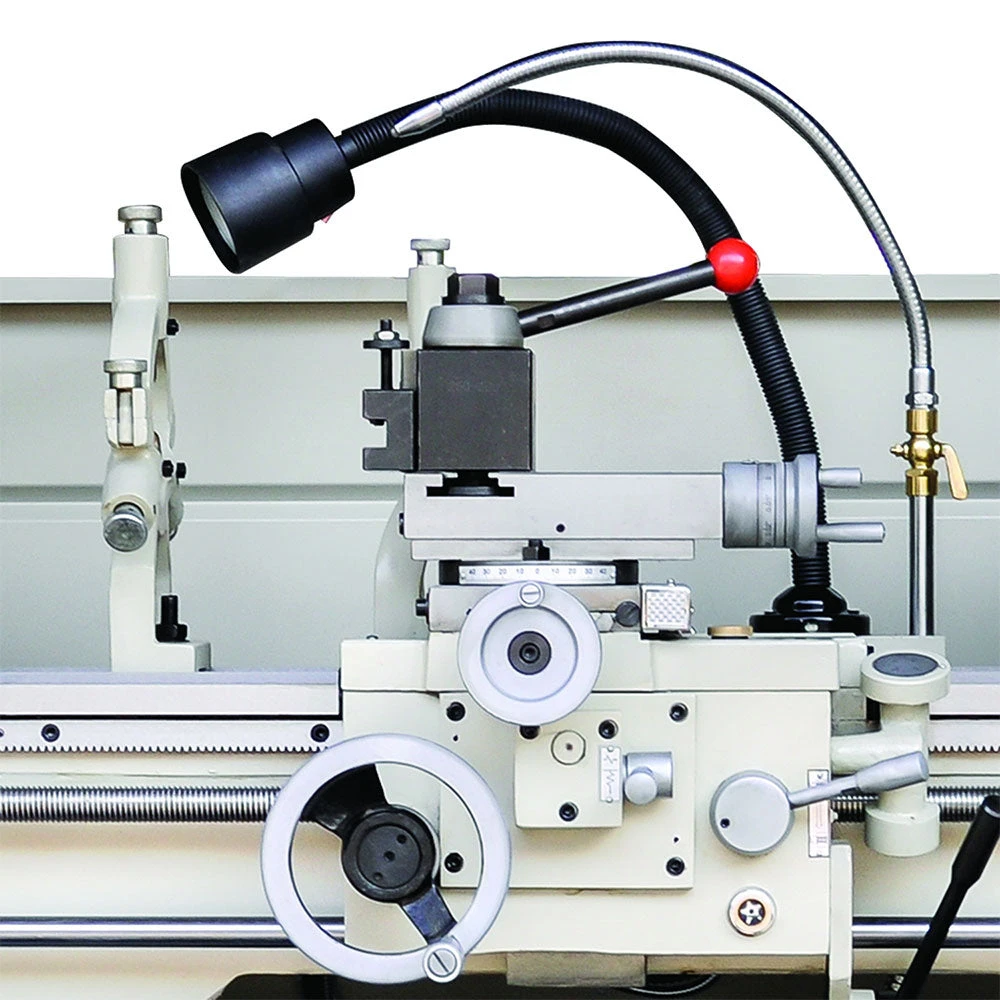

Quick-change tool post makes tooling changes more efficient.

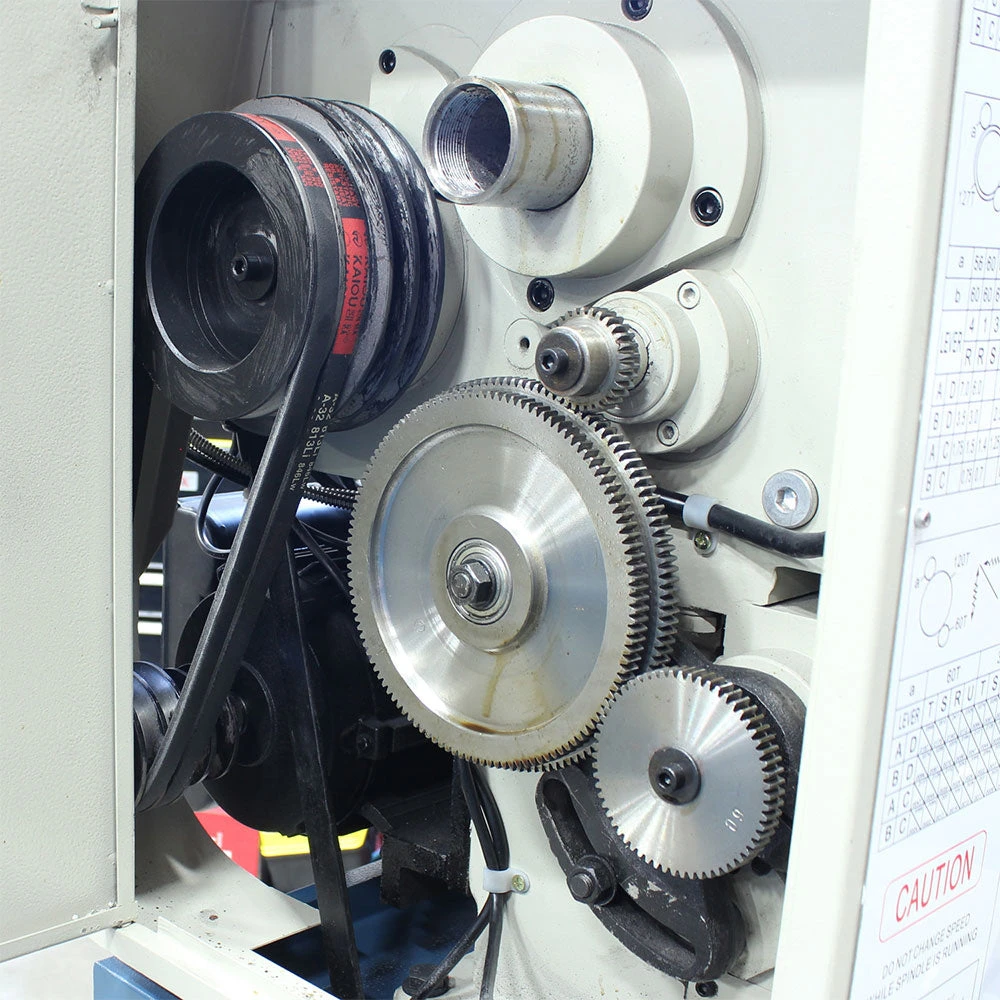

Gear system allows for taping, turning, and polishing.
All ways are ground and hardened to ensure long life.

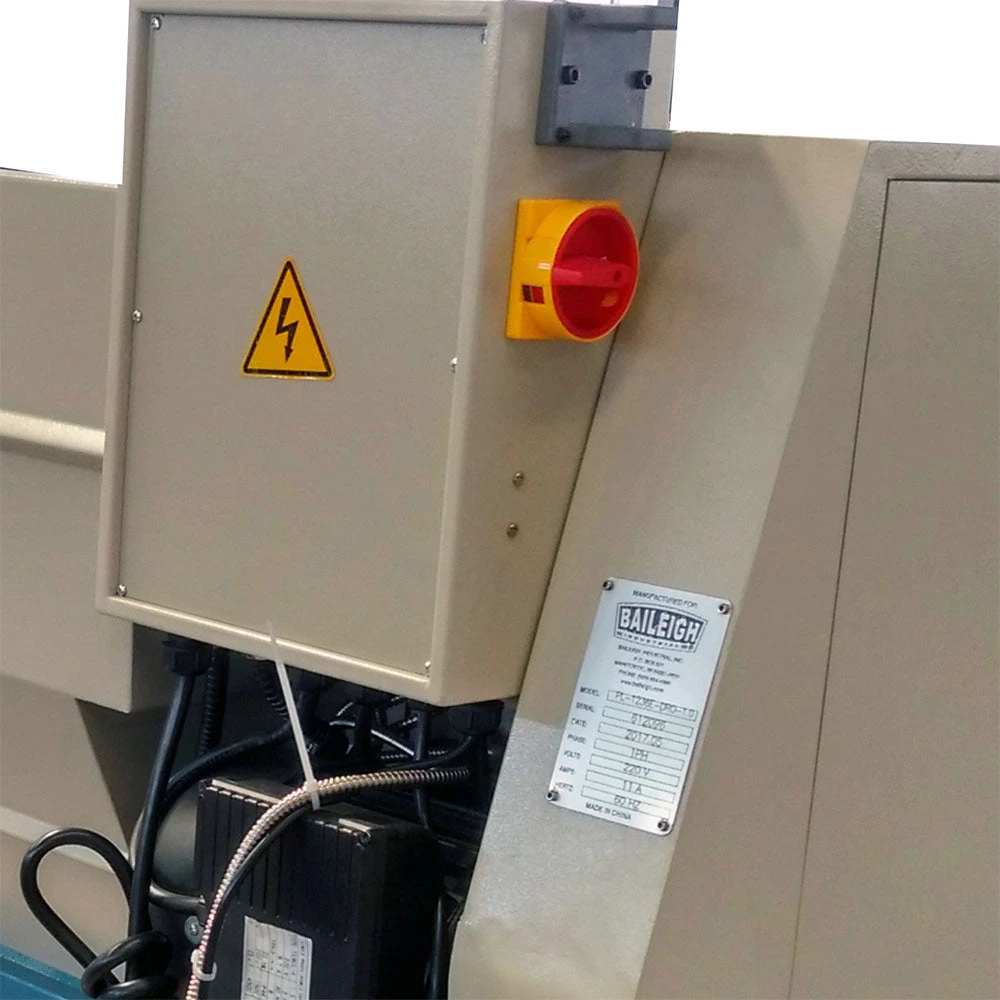

Runs on 220-volt single-phase power.
Capable of standard and metric threading.(Metric with optional kit)
Quick-change tool post helps you save time.

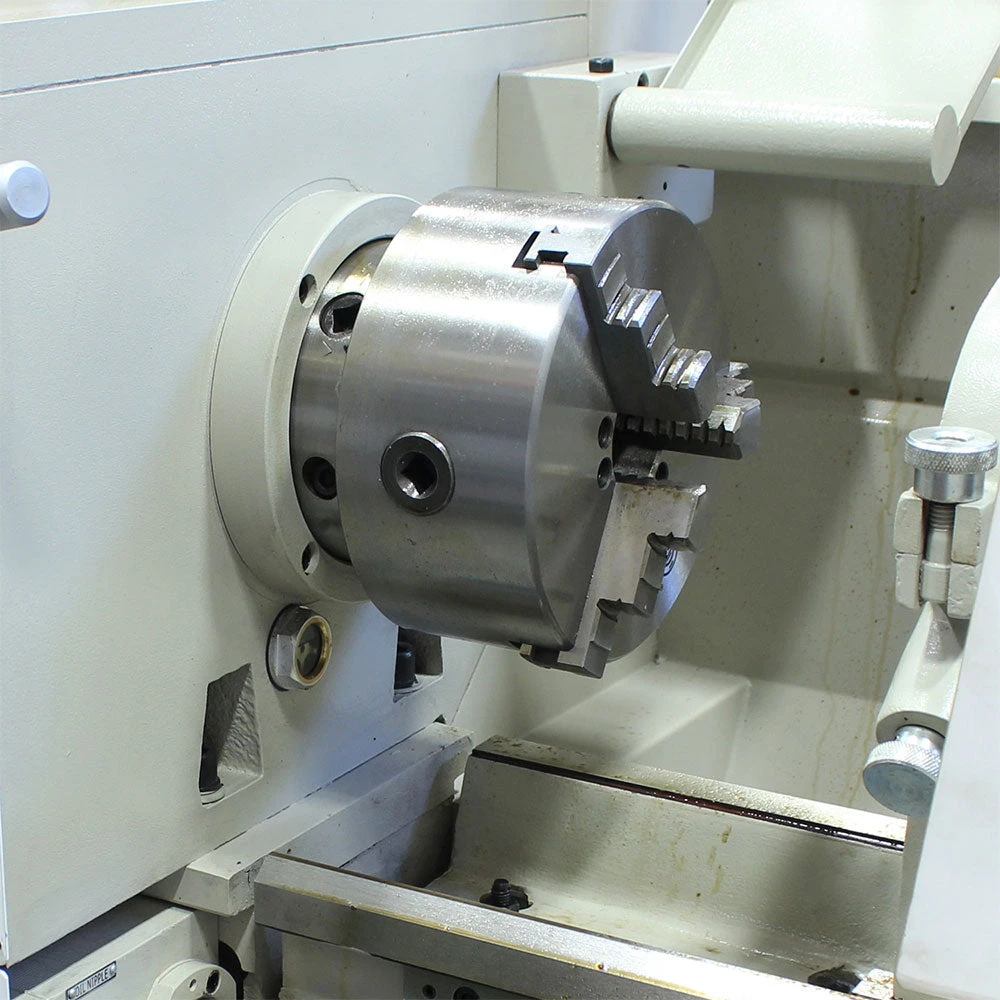

3-jaw and 4-jaw chucks can hold both square and rounded materials.
Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy.
Facing plate lets you shape materials that are large but not long. Bolt your metal to the plate to keep it square and symmetrical.

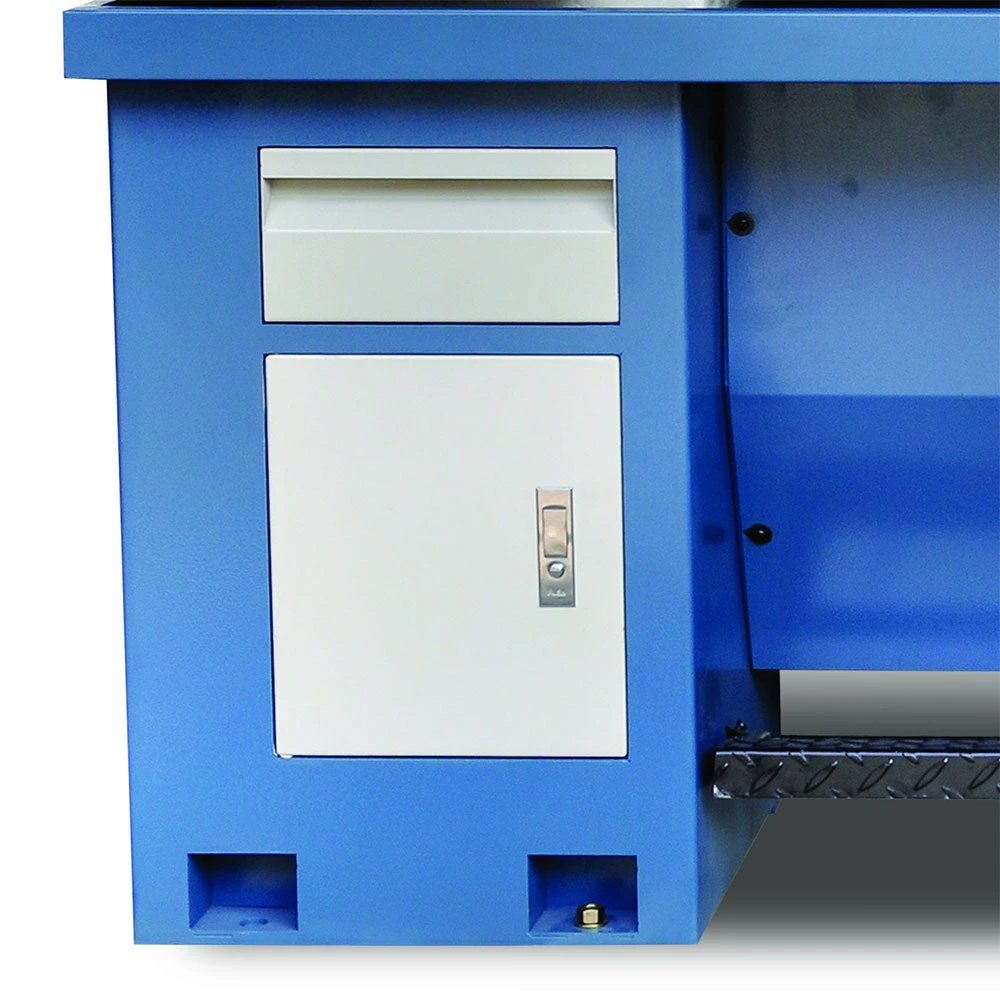

Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed.
Foot brake helps keep your shop safe.
Halogen work light comes standard.

What’s in The Box

PL-1236E-DRO-1.0 – Metal Lathe
Owner’s Manual

Warranty

1 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	PL-1236E-DRO-1.0
Power	220V / 1-phase
Sleeve Travel	4″
Spindle Bore	1.50″
Spindle Bore Taper	Morse #5
Sleeve Taper	Morse #3
Sleeve Diameter	1.250″

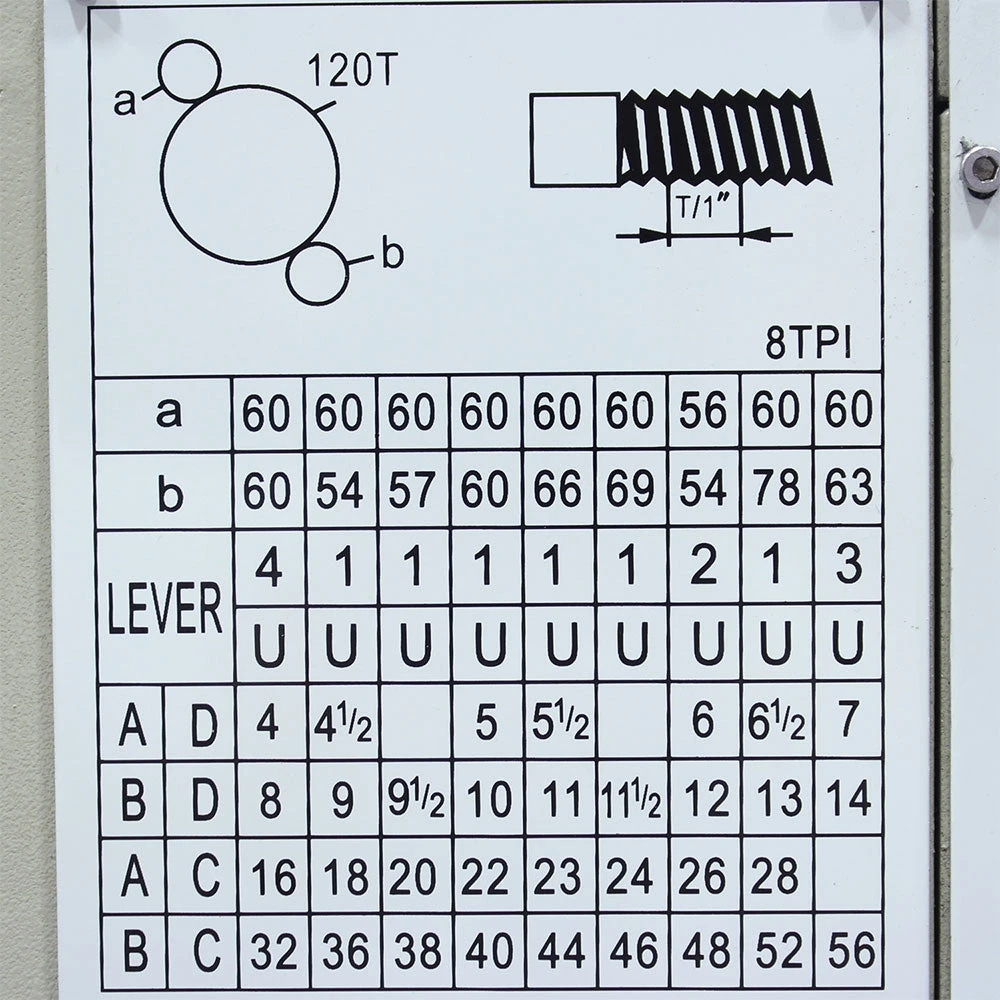

Range Of Inch Threads	4 – 56 T.P.I.
Metric Thread Range	0.4 – 7 mm
Spindle Nose	D1-4″
Travel Of Cross Slide	5.312″
Travel Of Top Slide	3.250″
Width Of Bed	7.125″

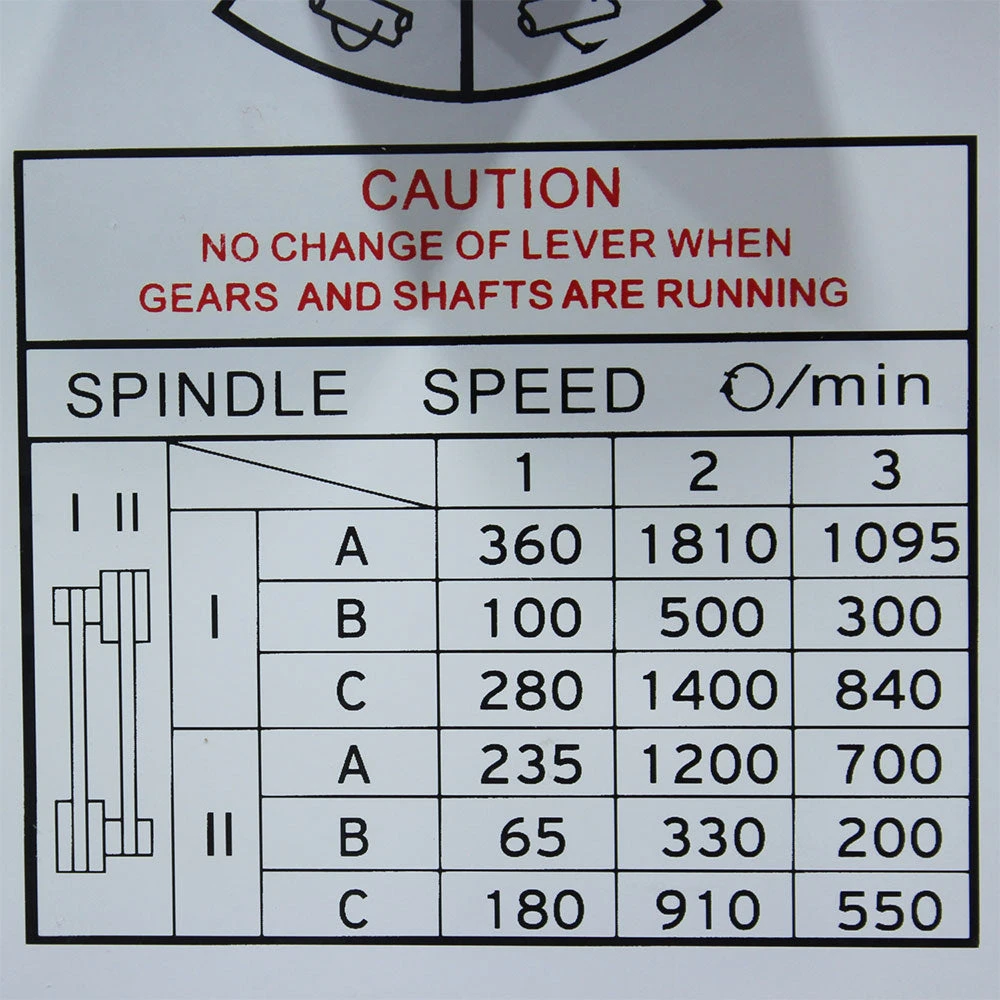

Spindle Speed	9 (70 – 1400 rpm)
Swing Over Bed	12″
Swing Over Cross Slide	7.625″
Longitudinal Feed Range	0.002″ – 0.0548″/rev
Lead Screw Thread Pitch	8 T.P.I.
Max. Tool Selection	.625″ x .625″
Cross Feed Range	0.007″ – 0.0187″/rev
Distance Between Centers	3666
Dimensions (Inches)	69 x 44 x 62
Weight	1420 lbs
