Sale!

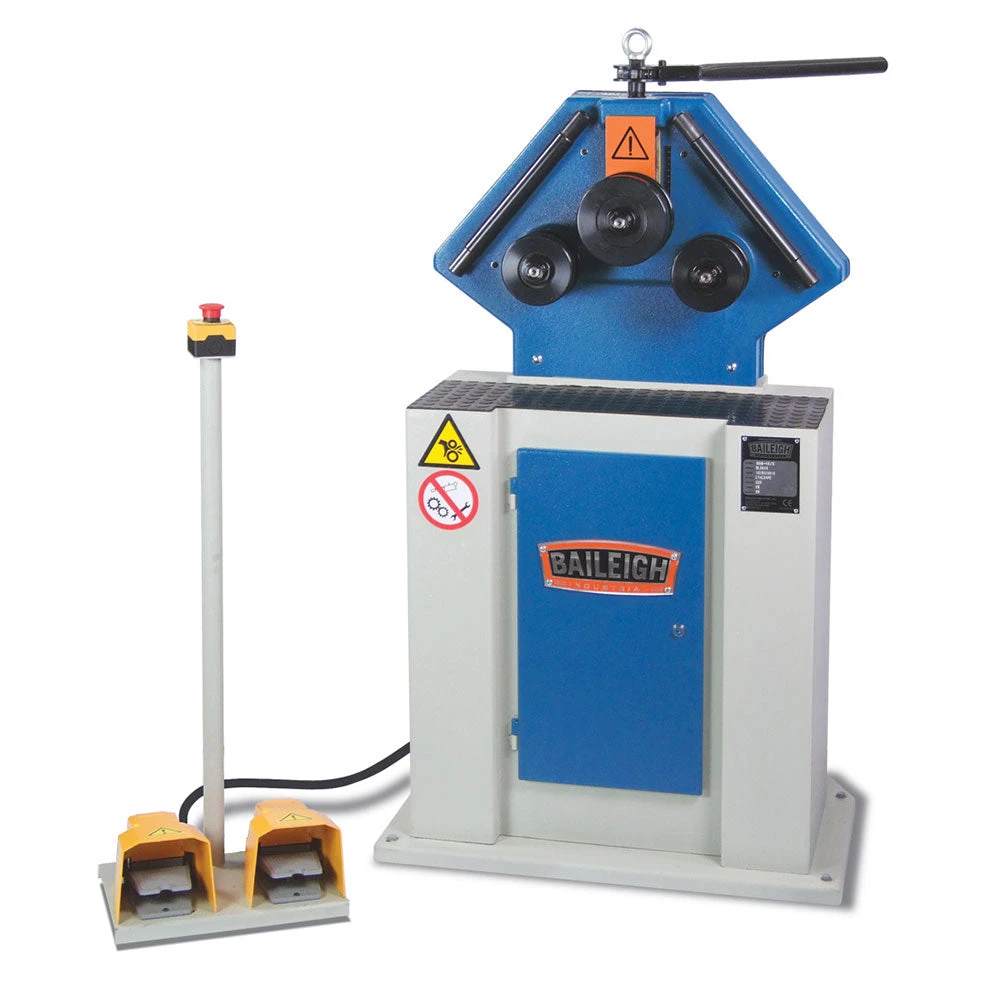

Baileigh 1006852 R-M40 220V Variable Speed Ring Roll Machine Bender

Baileigh 1006852 R-M40 220V Variable Speed Ring Roll Machine Bender | Precision Metalworking Tool

Original price was: $537.00.Current price is: $94.99.

The Baileigh 1006852 R-M40 220V Variable Speed Ring Roll Machine Bender is designed for precision metalworking, offering unmatched control and efficiency for bending rings and curves.
Featuring a robust 220V motor and variable speed control, this ring roll machine ensures smooth and consistent performance for a variety of metalworking projects.
Constructed with high-quality materials, the Baileigh R-M40 is built to withstand heavy-duty use, making it a reliable addition to any workshop or industrial setting.
Easy to operate and maintain, this machine is perfect for professionals and hobbyists alike, providing precise results for intricate metal bending tasks.
Purchase with confidence! Enjoy secure payment options, fast shipping, and exceptional customer support when you buy the Baileigh R-M40 Ring Roll Machine Bender from our store.

SKU: specialty-metalworking-tools-6854769901704 Categories: Specialty Metalworking Tools, Specialty Power Tools, Specialty Tools, Tools & Equipment Tags: 220v, Corded, Dropship, New, Tools & Equipment

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

220-volt single-phase motor can run at almost any site in North America.
2″ round tube and 1.5″ schedule 40 pipe maximum capacity.

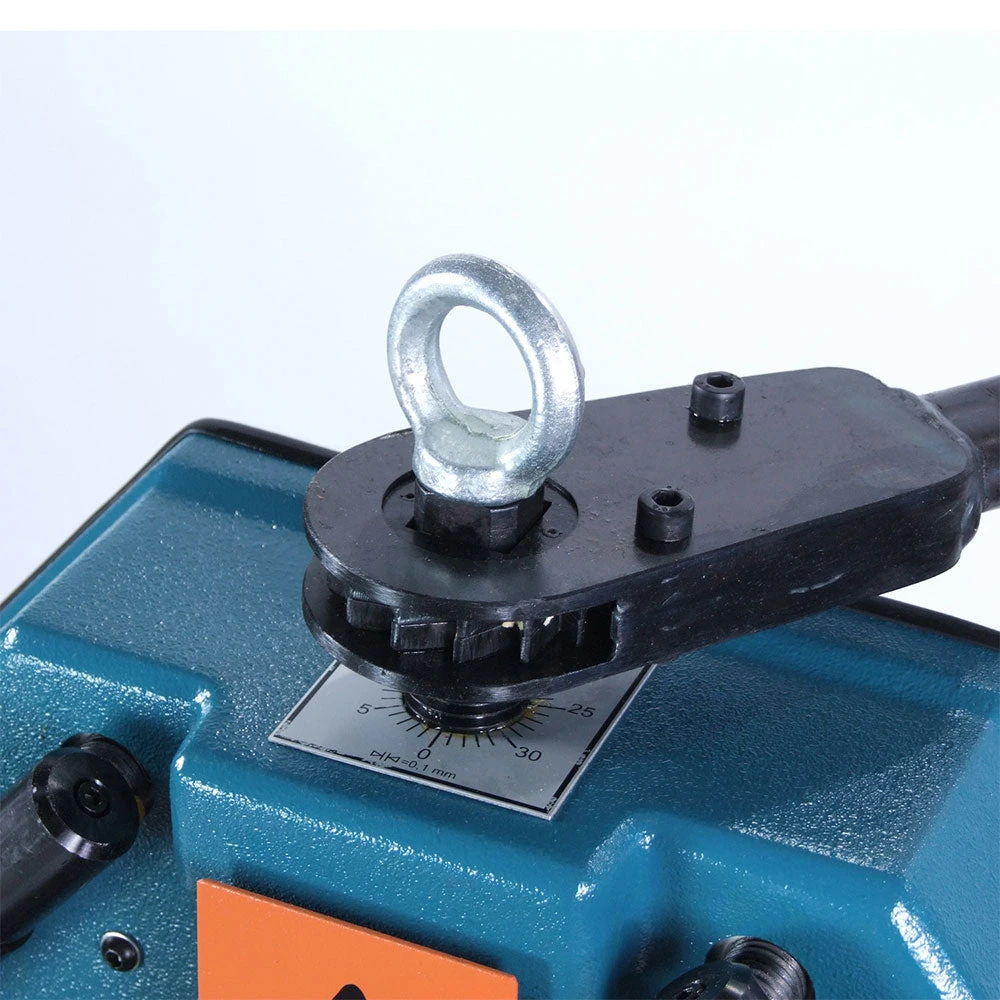

Ratchet-style manual top shaft allows you to adjust forming pressure.

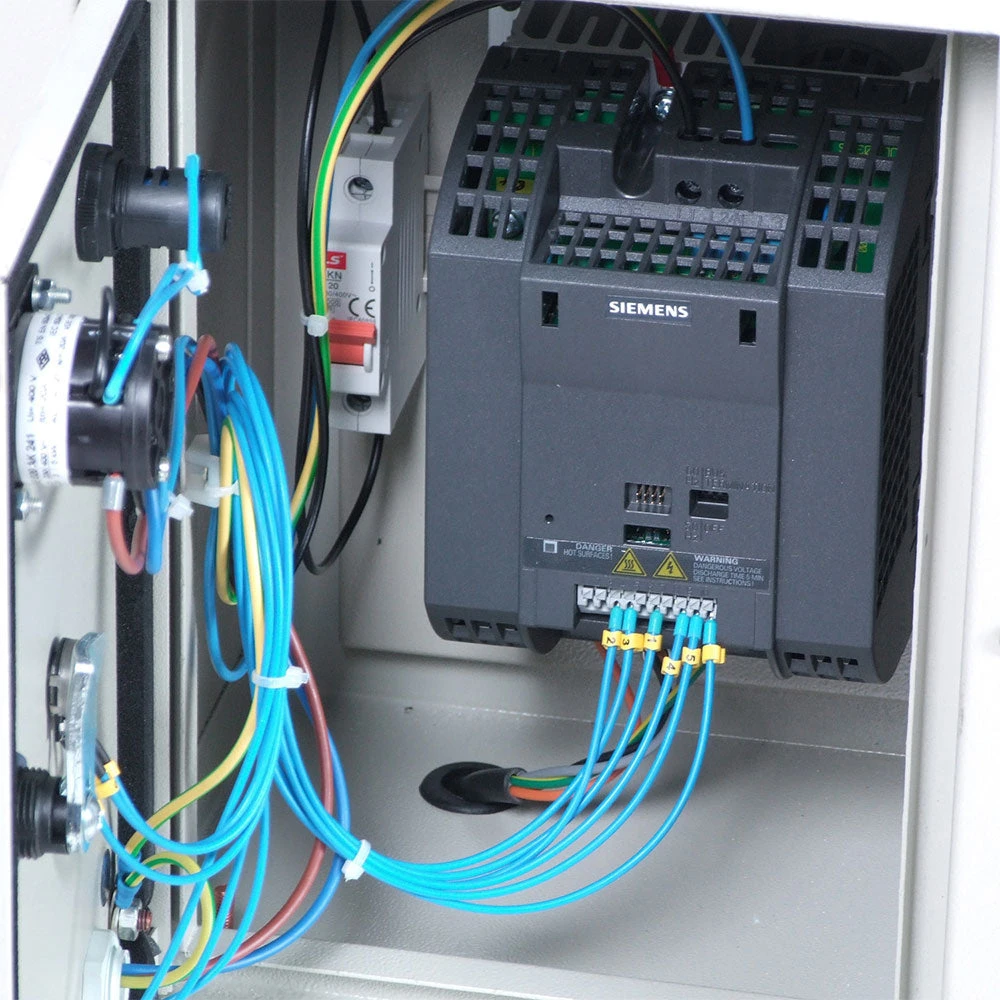

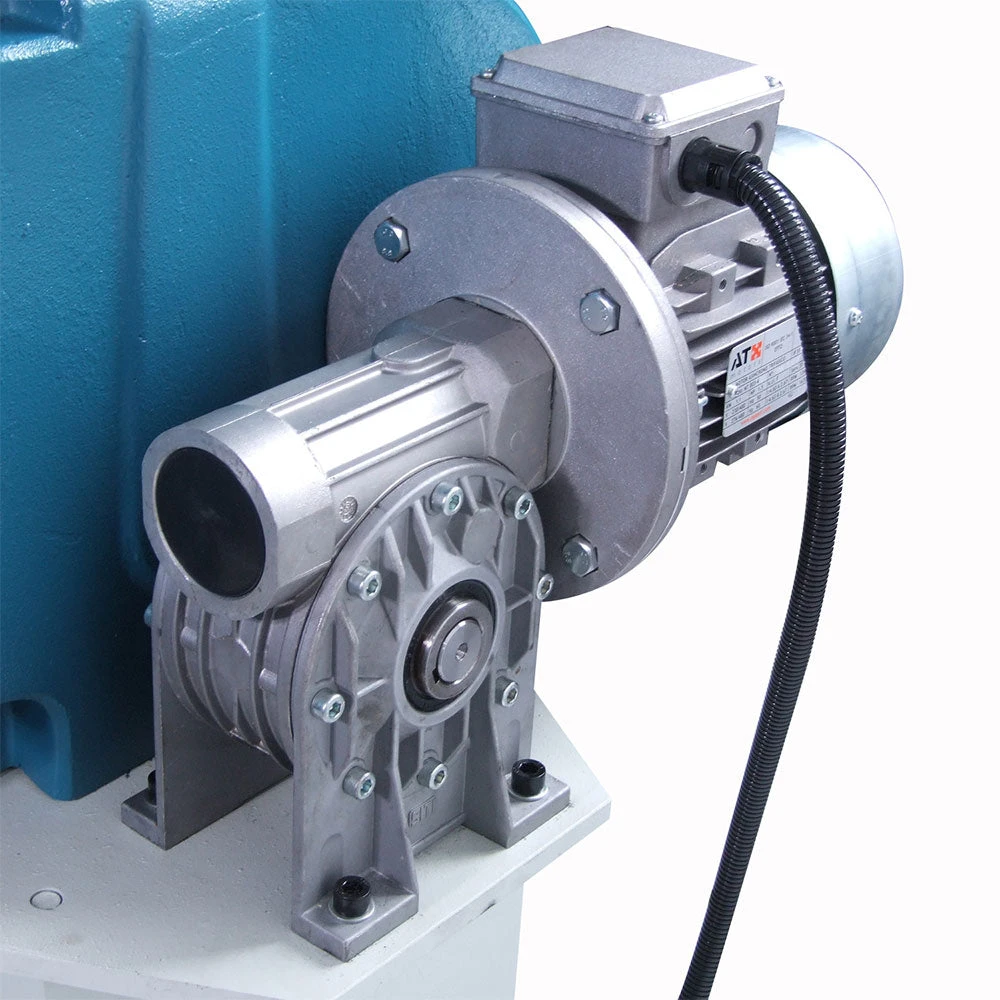

Variable-speed inverter drives and industrial-grade transmission provide delicate control over material.
Executes bends in upright or horizontal positions, to accommodate a range of material lengths.
Sturdy base opens into a storage cabinet for tooling and other options.

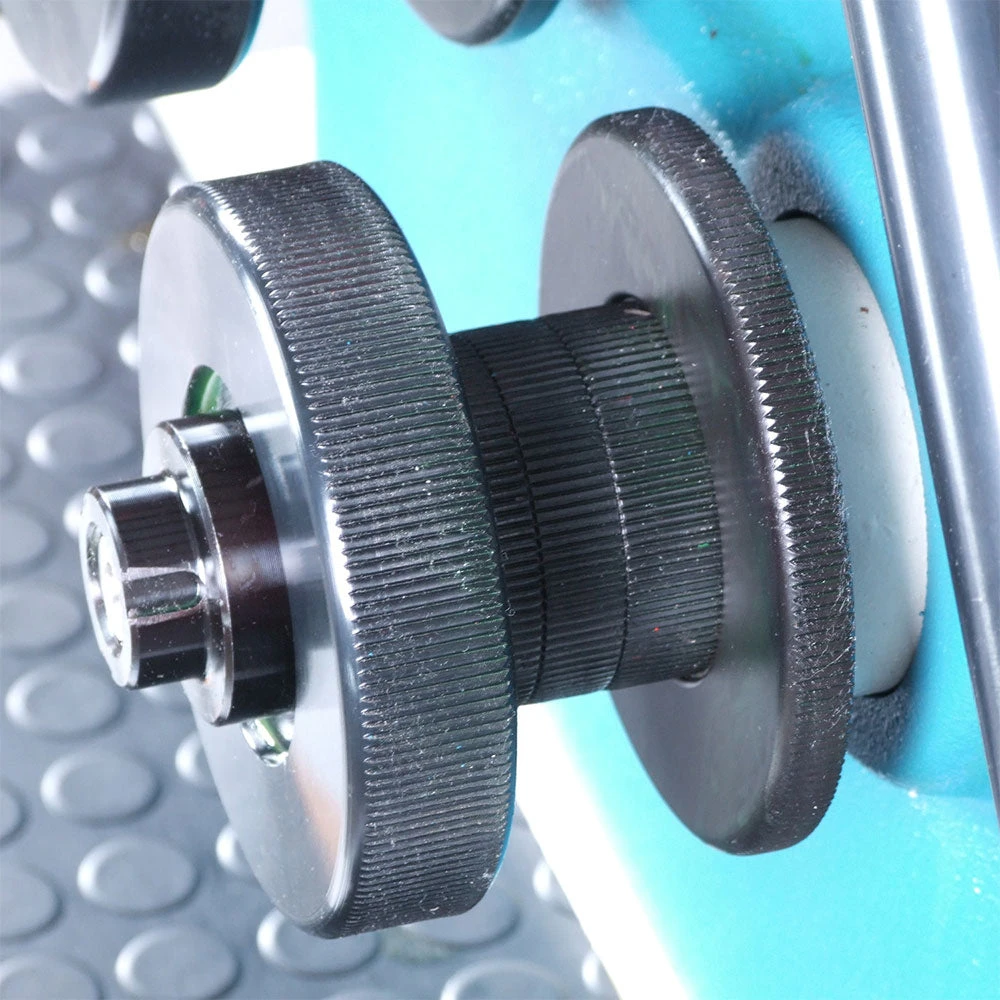

Comes standard with a set of segment rolls that can be used for bending flat bar, solid rod, and some square applications.
Manufactured from heavy steel plate to extend machine’s lifetime of use.

What’s in The Box

R-M40 – Ring Roll Machine
Owner’s Manual

Warranty

1 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	R-M40
Power	220V Single Phase
Roll Adjustment	Manual
Pipe Capacity	Size: 1.5″ (sch. 40) / Min. Dia.: 28″
Round Tube Capacity	Size: 2″ (.078″) / Min. Dia.: 27.55″
Square Tube Capacity	Size: 1.5″ (.078″) / Min. Dia.: 39″
Solid Round Capacity	Size: 1.375″ / Min. Dia.: 24″
Flat Bar Easy Way	Size: 3″ (.5″) / Min. Dia.: 15.75″
Flat Bar Hard Way	Size: 2.25″ (.375″) / Min. Dia.: 20″
Angle Iron Capacity	Size: 1.5″ (.157″) / Min. Dia.: 22″
Shaft Diameter	1.181″
Shaft Center Distance Lower Rolls	10.88″
Lower Roll Dia.	5.118″
Pinch	Single
Material Type	All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling	Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches)	60x44x77
Weight	550 lbs
