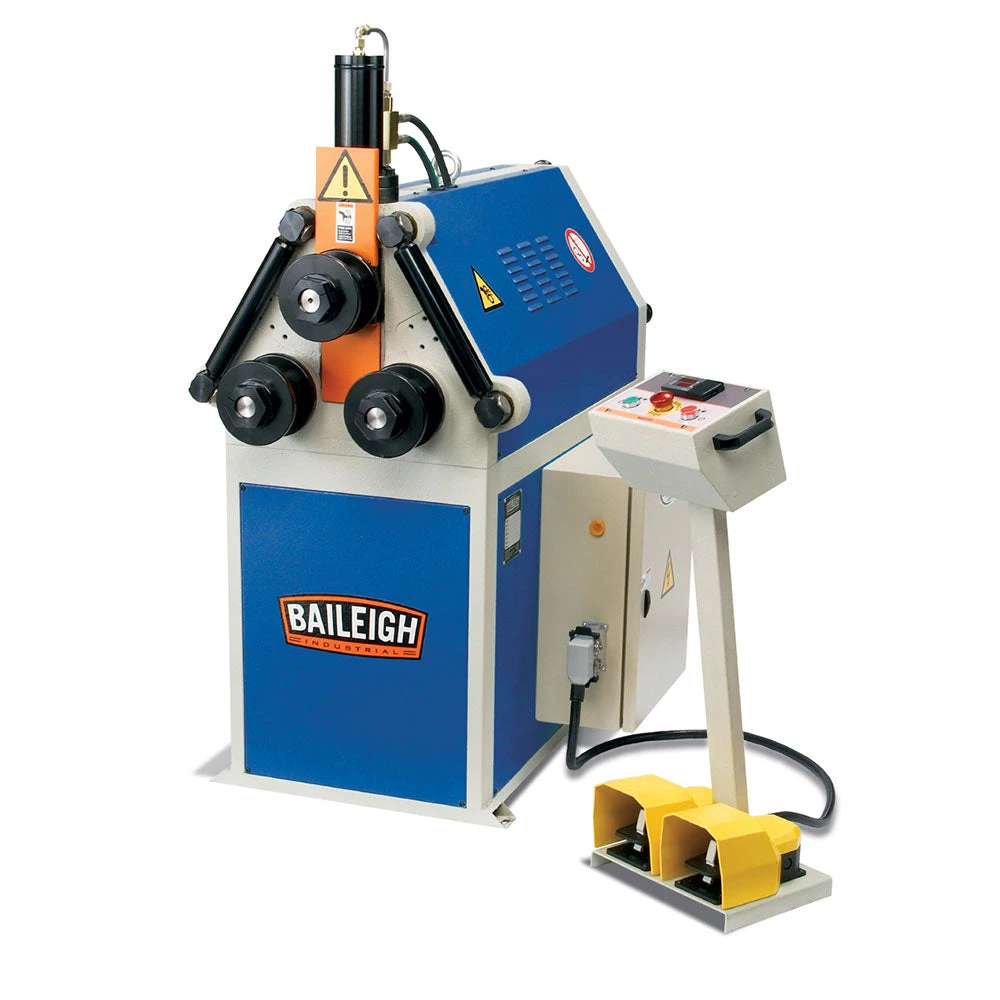

Tools & Equipment Baileigh 1006835 R-H45 Hydraulic Roll Bender W/ 3 Driven Rolls

Baileigh 1006835 R-H45 Hydraulic Roll Bender with 3 Driven Rolls | Specialty Metalworking Tools

Original price was: $504.00.Current price is: $97.99.

Enhance your metalworking projects with the Baileigh 1006835 R-H45 Hydraulic Roll Bender, featuring 3 driven rolls for precise and efficient bending.
Designed for professionals, this roll bender offers superior performance and durability, making it a must-have in your workshop.
The hydraulic system ensures smooth operation, while the 3 driven rolls provide consistent and accurate results every time.
Ideal for a variety of metalworking tasks, this tool is perfect for both small and large-scale projects.
Purchase with confidence knowing you’re getting a high-quality product from Baileigh, a trusted name in specialty tools and equipment. Fast shipping and secure payment options available.

SKU: specialty-metalworking-tools-6854769639560 Categories: Specialty Metalworking Tools, Specialty Power Tools, Specialty Tools, Tools & Equipment Tags: Corded, Dropship, LTL, New, Tools & Equipment

Elevate Your Shopping Experience
Quality You Can Count On
Your Security is Our Promise
Safe Payments for a Better Shopping Experience

Description
Reviews (0)

Features

Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
Bends up to 2” square x .120” wall tubing and 2” schedule 40 pipe, among other materials.

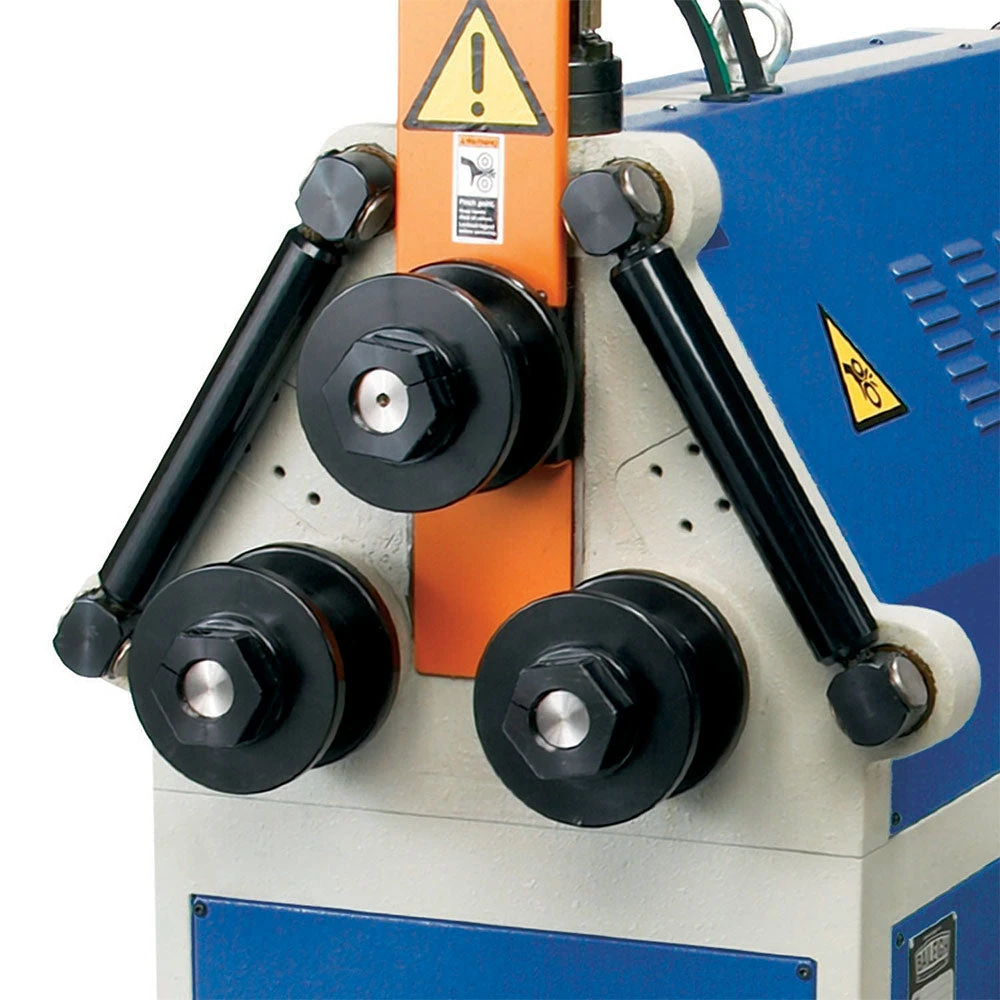

All 3 rolls turn on industrial motor and transmission.

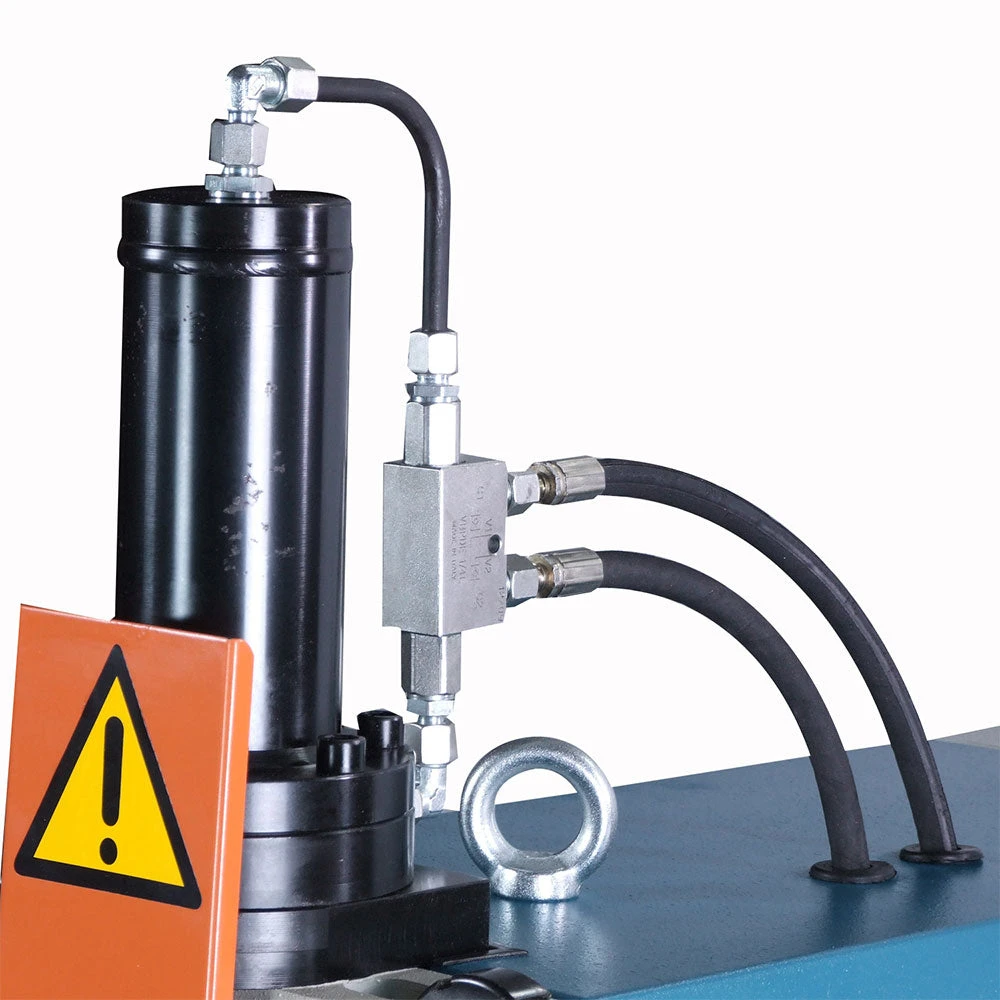

Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.

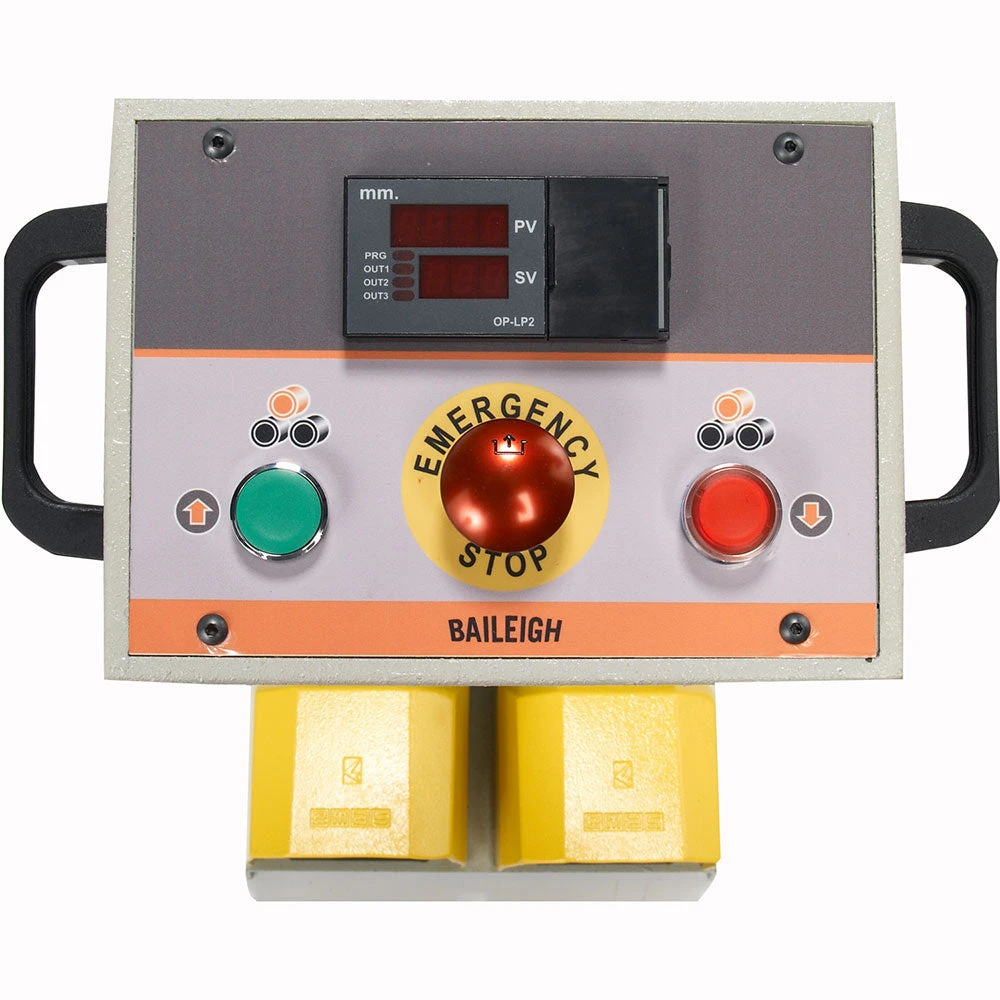

Digital readout with programmable stop controls upward and downward roll position for easy repeatability.
Siemens inverter drive enables soft start-ups to prolong motor life.
Operator podium includes foot pedal, allowing you to stop and start the machine with ease.
You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters.
Fully-welded steel plate frame adds strength to the machine and minimizes flex.

What’s in The Box

R-H45 – Hydraulic Roll Bender
Owner’s Manual

Warranty

1 Year Limited Factory Warranty
30 Day Satisfaction Guaranteed

Specifications

SKU	R-H45
Power	220V Single Phase
Roll Adjustment	Hydraulic
Pipe Capacity	Size: 2″ (sch. 40) / Min. Dia.: 48″
Round Tube Capacity	Size: 2.75″ (.083″) / Min. Dia.: 60″
Square Tube Capacity	Size: 2″ (.120″) / Min. Dia.: 51″
Solid Round Capacity	Size: 1.5″ / Min. Dia. 28″
Flat Bar Easy Way	Size: 4″ (.75″) / Min. Dia. 28″
Flat Bar Hard Way	Size: 3.25″ (.375″)/ Min. Dia.: 32″
Angle Iron Capacity	Size: 2″ (.250″)/ Min. Dia.: 36″
Shaft Diameter	1.772″
Shaft Center Distance Lower Rolls	9.562″
Lower Roll Dia.	5.827″
Pinch	Single
Material Type	All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling	Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Dimensions (Inches)	60 x 44 x 77
Weight	1000 lbs
