Sale!

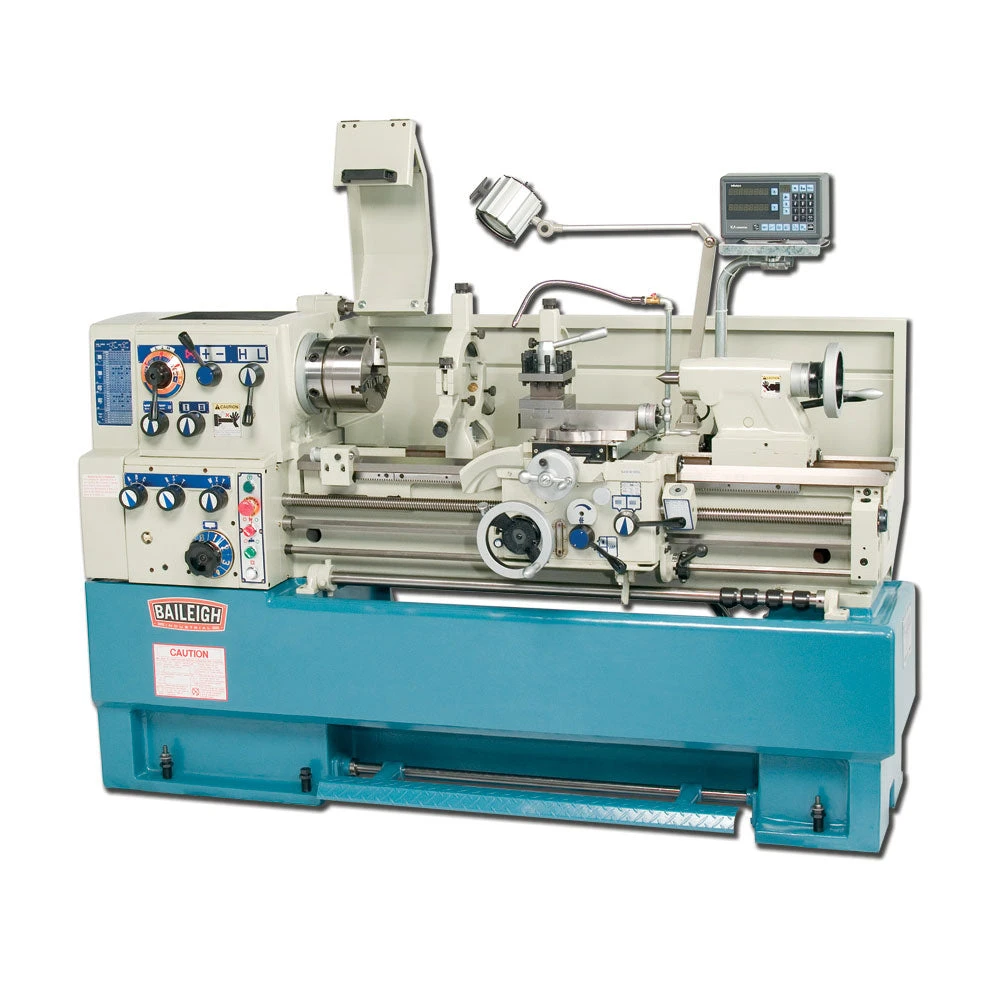

Baileigh 1006140 PL-1640 Precision Lathe 220V 7.5HP with Cast Iron Base – Power Tools & Equipment

Original price was: $536.00.Current price is: $90.99.

The Baileigh 1006140 PL-1640 Precision Lathe features a robust 220V 7.5HP motor, delivering reliable performance for both woodworking and metalworking projects.
Built with a durable cast iron base, this lathe ensures stability and reduces vibrations, enhancing precision and accuracy in your work.
Equipped with advanced controls and a user-friendly design, the PL-1640 makes it easy to achieve professional-grade results, even for beginners.
Perfect for workshops and industrial settings, this lathe is designed to handle heavy-duty tasks while maintaining consistent performance.
Enjoy seamless purchasing with flexible payment options and fast, reliable shipping. Enhance your toolkit with the Baileigh PL-1640 Precision Lathe today!

12 speeds from 30 to 2,000 rpm.
7.5 hp motor runs on 220-volt 3-phase power.
No assembly required.
Factory-installed Mitutoyo DRO (digital readout) helps you make precise cuts.
Precision ground and hardened ways will withstand years of use in any metalworking shop.
?” square indexing tool post.
Collar system lets you set stops for repeat parts.
This is a gap lathe, so you can remove a section of the slide to fit a slightly larger diameter.
Full cast iron base, integrated into the mainframe, makes this one of the most rigid lathes on the market.
Comes standard with:
3-jaw chuck.
Headstock chuck guard with automatic safety switch.
Steady rest and follow rest.
Emergency foot brake.
Flood coolant system (with backsplash guard) to prolong machine life.
Halogen work light.
Covered by a 1-year parts warranty.

SKU	PL-1640
Power	220V / 3-phase
Speed	30 – 2000 rpm
Spindle Bore	2.0625″
Threads Diametrical Qty Speed	32 / 4–32 D.P.
Threads Imperial Qty Speed	40 / 2–56 T.P.I.
Threads Metric Qty Speed	53 / .4–14 mm pitch
Threads Module Qty Speed	44 / .4–7 M.P.
Spindle Taper Sleeve	Morse #4
Spindle Taper Nose	Morse #6
Tailstock Quill Dia	2.125″
Tailstock Quill Taper	Morse #4
Tailstock Quill Travel	4.75″
Compound Rest Width	4.33″
Center Height	7.086″
Compound Travel	4.75″
Bed Height	12.20″
Bed Length	17157
Bed Width	11.81″
Longitudinal Feeds Metric Qty Speed	40 / .032 – .640 mm / rev.
Main Motor	7.5 hp
Longitudinal Feeds Imperial Qty Speed	40 / .0012″ – .0252″ / rev.
Lead Screw Diameter	1.25″
Lead Screw Thread Pitch	4 T.P.I.
Max. Swing In Gap Length	6.125″
Max. Swing Over Bed	16″
Max. Swing Over Cross Slide	9.45″
Max. Swing In Gap Dia	23.42″
Cross Feeds Imperial Qty Speed	40 / .0006″ – .0126″ / rev.
Cross Feeds Metric Qty Speed	40 / .015 – .320 mm / rev.
Cross Slide Travel	9″
Cross Slide Width	7.08″
Cutting Tool Max Section	.625″ x .625″
Distance Between Centers	40″
Feed Rod	.708 dia.
Shipping Dimensions (Inches)	90x37x81
Weight	3940 lbs
